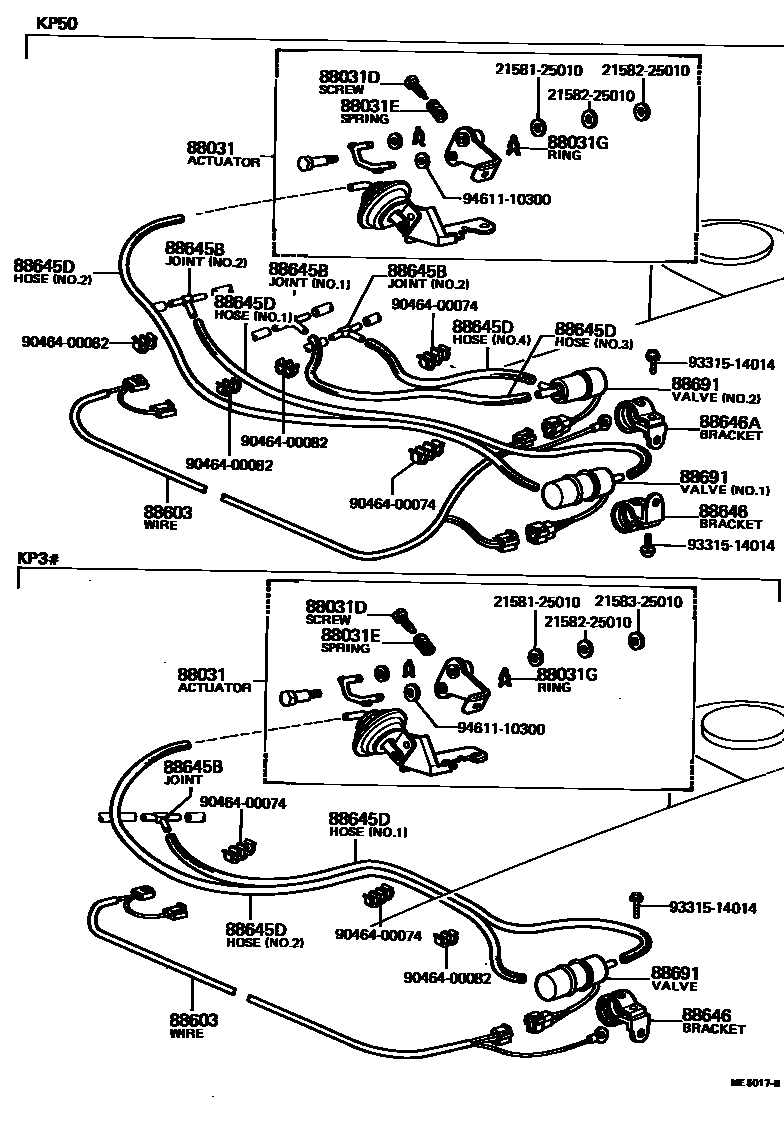

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-12040iKP37,50197511-197710

main88031-12080iKP3#,50197710-198808

88031DSCREW, THROTTLE ADJUSTING(FOR IDLE-UP ACTUATOR)

main21844-25010iKP37,50197511-197710

88031ESPRING, 1ST IDLE(FOR IDLE-UP ACTUATOR)

main21723-10010iKP37,50197511-197710

88031GRING, SNAP(FOR IDLE-UP ACTUATOR)

main21791-60010×2iKP37,50197511-197710

88603WIRE, IDLE UP DEVICE

main88648-10010iKP3#197511-198808

main88648-10020iKP50197601-197802

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main88894-12100iKP50197601-197802

N0.1

main90413-04001×2iKP3#,50197511-198808

N0.2

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iKP3#197710-198803

main95411-19930iKP50197601-197802

main95411-19960iKP50197710-197802

88646BRACKET, IDLE UP DEVICE, NO.1

main88688-12010iKP37,50197511-197710

88646ABRACKET, IDLE UP DEVICE, NO.2

main88688-12010iKP50197601-197710

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-10040iKP50197710-197802

NO.2

main88690-10060iKP50197710-197802

NO.1

main88690-10080iKP3#197710-198808

main88690-14030iKP37,50197511-197710

N0.1

main88691-12010iKP50197601-197710

N0.2

2158125010SHIM, 1ST THROTTLE SHAFT

main21581-25010

2158225010

main21582-25010

2158325010SHIM, 2ND THROTTLE SHAFT

main21583-25010

9046400074

main90464-00074

9046400082

main90464-00082

9331514014

main93315-14014

9461110300

main94611-10300

17 parts on this diagram · 2 diagrams in section
