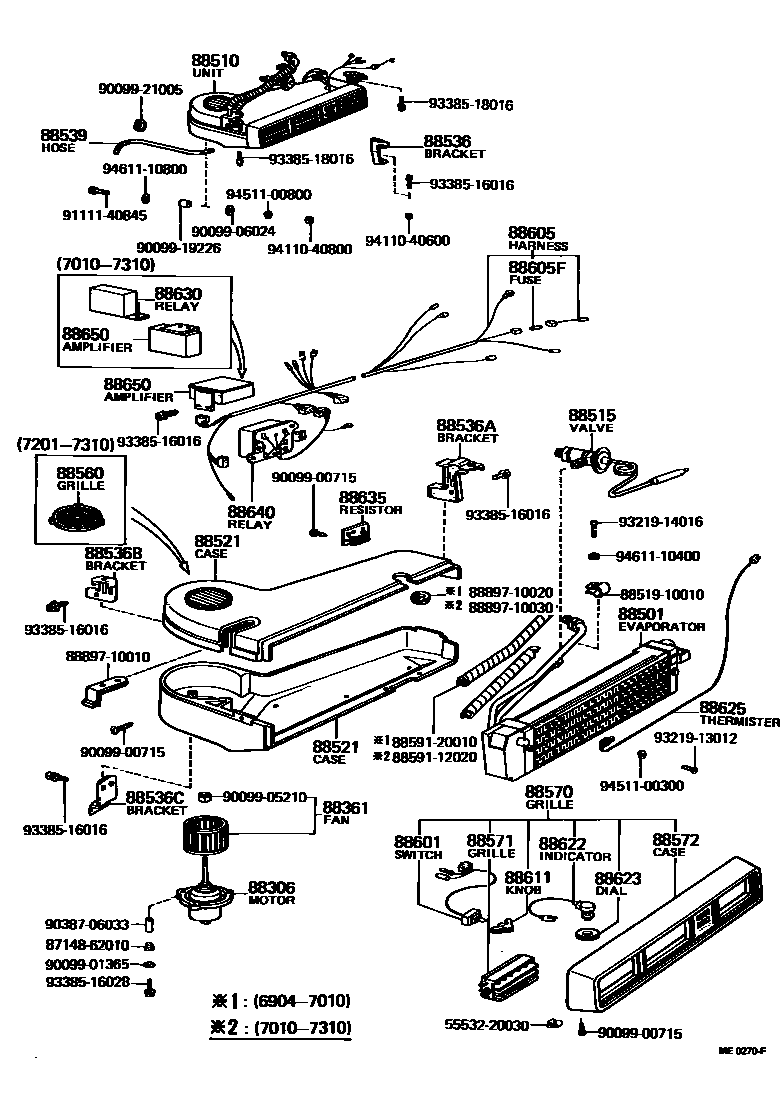

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1

main88550-10010iKP3#196904-197010

main88550-12040iKP3#197010-197112

main88550-30300iKP3#,50197310-198808

88361FAN, COOLER BLOWER, NO.1

main87105-22020iKP3#197010-197112

main88540-10010iKP3#196904-197010

main88541-10010iKP3#,50197310-198808

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10010iKP3#196904-197010

main88501-10011iKP3#197010-197112

main88501-10012iKP3#..DLX,HDX,STD,XL197201-197310

main88501-10020iKP3#197310-197501

main88501-30520iKP3#197501-197511

main88501-30530iKP3#,50197511-198808

88510UNIT ASSY, COOLER

main88510-10010iKP3#196904-197010

main88510-10011iKP3#197010-197112

main88510-10012iKP3#..DLX,HDX,STD,XL197201-197310

main88510-10020iKP3#197310-197511

main88510-30670iKP3#,50197511-198808

88515VALVE, COOLER EXPANSION

main88515-10010iKP3#..DLX,HDX,STD,XL197201-197310

main88515-12010iKP3#196904-197010

main88515-12011iKP3#197010-197112

88521CASE, COOLER UNIT

main88521-10010iKP3#196904-197010

UPR

main88521-10020iKP3#196904-197010

LWR

main88521-12070iKP3#197010-197112

LWR

main88521-12071iKP3#..DLX,HDX,STD,XL197210-197310

LWR

main88521-12080iKP3#197010-197112

UPR

main88521-12081iKP3#..DLX,HDX,STD,XL197210-197310

UPR

88536BRACKET, COOLING UNIT, NO.1

main88536-10040iKP3#197010-197112

main88898-10010iKP3#196904-197010

main88899-10070iKP3#,50197310-198808

88536ABRACKET, COOLING UNIT, NO.2

main88536-05480iKP3#197010-197112

main88536-10030iKP3#196904-197010

main88899-10060iKP3#,50197310-198808

88536BBRACKET, COOLING UNIT, NO.3

main88536-10020iKP3#196904-197112

88536CBRACKET, COOLING UNIT, NO.4

main88536-10010iKP3#196904-197010

main88536-12070iKP3#197010-197112

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10020iKP3#,50197310-198808

main90099-33014iKP3#196904-197112

88560GRILLE ASSY, COOLER AIR INLET

main88561-12010iKP3#..DLX,HDX,STD,XL197201-197310

main88574-10010×2iKP3#197310-197511

88570GRILLE SUB-ASSY, COOLER AIR OUTLET

main88570-10010iKP3#196904-197010

main88570-10020iKP3#197310-197511

main88570-12030iKP3#197010-197112

main88570-12031iKP3#..DLX,HDX,STD,XL197210-197310

main88570-30600iKP3#,50197511-198808

88571GRILLE, AIR OUTLET

main88571-10020×2iKP3#197310-197511

CTR

main88571-12010×3iKP3#196904-197112

main88571-40040iKP3#197310-197511

RH

88572CASE, COOLER AIR OUTLET

main88571-10010iKP3#196904-197112

88601SWITCH SUB-ASSY, COOLER CONTROL

main88601-12010iKP3#196904-197010

main88601-12020iKP3#197010-197112

main88601-12021iKP3#..DLX,HDX,STD,XL197210-197310

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-10010iKP3#196904-197010

main88605-10020iKP3#197010-197112

main88605-10021iKP3#..DLX,HDX,STD,XL197210-197310

main88605-10030iKP3#197310-197511

main88605-10031iKP3#,50197511-198201

main88605-10120iKP39198201-198808

88605FFUSE(FOR COOLER WIRING HARNESS)

main99118-62905iKP3#196904-197010

5A

88611KNOB, COOLER CONTROL SWITCH

main88611-12010iKP3#196904-197112

main88611-12020iKP3#..DLX,HDX,STD,XL197201-197310

88622INDICATOR, COOLER CONTROL RESISTANCE

main88622-12010iKP3#196904-197010

main88622-60010iKP3#197010-197112

88623DIAL, COOLER THERMOSTAT

main88623-12010iKP3#196904-197112

88625THERMISTOR, COOLER, NO.1

main88625-10010iKP3#196904-197112

main88625-22010iKP3#197501-197511

main88625-22020iKP3#197310-197501

main88625-30480iKP3#,50197511-198808

main88625-60010iKP3#..DLX,HDX,STD,XL197201-197310

88630RELAY ASSY, COOLER

main88630-10010iKP3#,50197511-198808

main88630-12010iKP3#197010-197112

main88630-12020iKP3#197310-197511

88635RESISTOR, COOLER UNIT BLOWER

main88635-10010iKP3#197310-197501

main88635-12010iKP3#196904-197010

main88635-12020iKP3#197010-197112

main88635-30330iKP3#197501-197511

main88635-30370iKP3#,50197511-198808

88640RELAY ASSY, COOLER STABILIZER

main88440-30190iKP3#196904-197010

88650AMPLIFIER ASSY, COOLER STABILIZER

main88640-12010iKP3#196904-197010

main88650-12010iKP3#197010-197112

5553220030COVER, CIGAR LIGHTER HOLE

main55532-20030

8714862010

main87148-62010

8851910010HOLDER, REMOTE BULB

main88519-10010

8859112020GUIDE, COOLER BOX AIR

main88591-12020

8859120010GUIDE, COOLER BOX AIR

main88591-20010

8889710010VALVE, COOLER MAGNET

main88897-10010

8889710020VALVE, COOLER MAGNET

main88897-10020

8889710030VALVE, COOLER MAGNET

main88897-10030

9009900715

main90099-00715

9009901365

main90099-01365

9009905210

main90099-05210

9009906024

main90099-06024

9009919226

main90099-19226

9009921005

main90099-21005

9038706033

main90387-06033

9111140845

main91111-40845

9321913012

main93219-13012

9321914016

main93219-14016

9338516016

main93385-16016

9338516028

main93385-16028

9338518016

main93385-18016

9411040600

main94110-40600

9411040800

main94110-40800

9451100300

main94511-00300

9451100800

main94511-00800

9461110400

main94611-10400

9461110800

main94611-10800

53 parts on this diagram · 3 diagrams in section
