INDICATOR

81430LAMP ASSY, REAR WINDOW DEFOGGER INDICATOR

main81430-10010iKP30..SL196904-197010

main81430-10020iKP30,31..HDX,ST,XL197201-197802

81430BBULB, REAR WINDOW DEFOGGER INDICATOR LAMP

main99132-11034iKP30..SL196904-197010

12V 3.4W

main99132-12034iKP30,31..HDX,ST,XL197201-197802

12V 3.4W

81850BBULB, INDICATOR LAMP

main90981-11018iKP50..XL197601-197802

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iKP30,31..2FC196910-197802

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12010iKP30,31..2FC196910-197802

sub35906-12020

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main87490-10071iUP3#197010-197112

87406LAMP SUB-ASSY, HEATER CONTROL PILOT

main87406-10010iUP3#197010-197112

main87406-10070iUP3#196904-197010

87406BBULB (FOR HEATER CONTROL PILOT LAMP)

main99132-13015iUP3#196904-197112

12V 1.5W

sub99132-11017

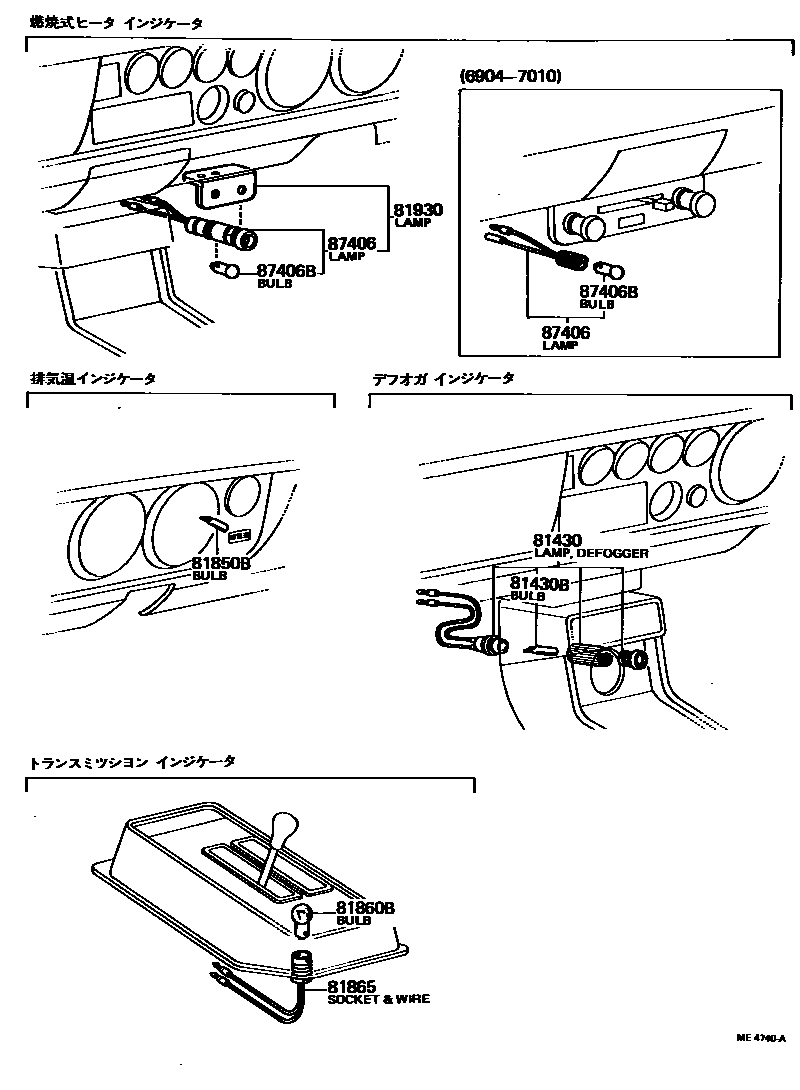

8 parts on this diagram · 1 diagram in section
