METER

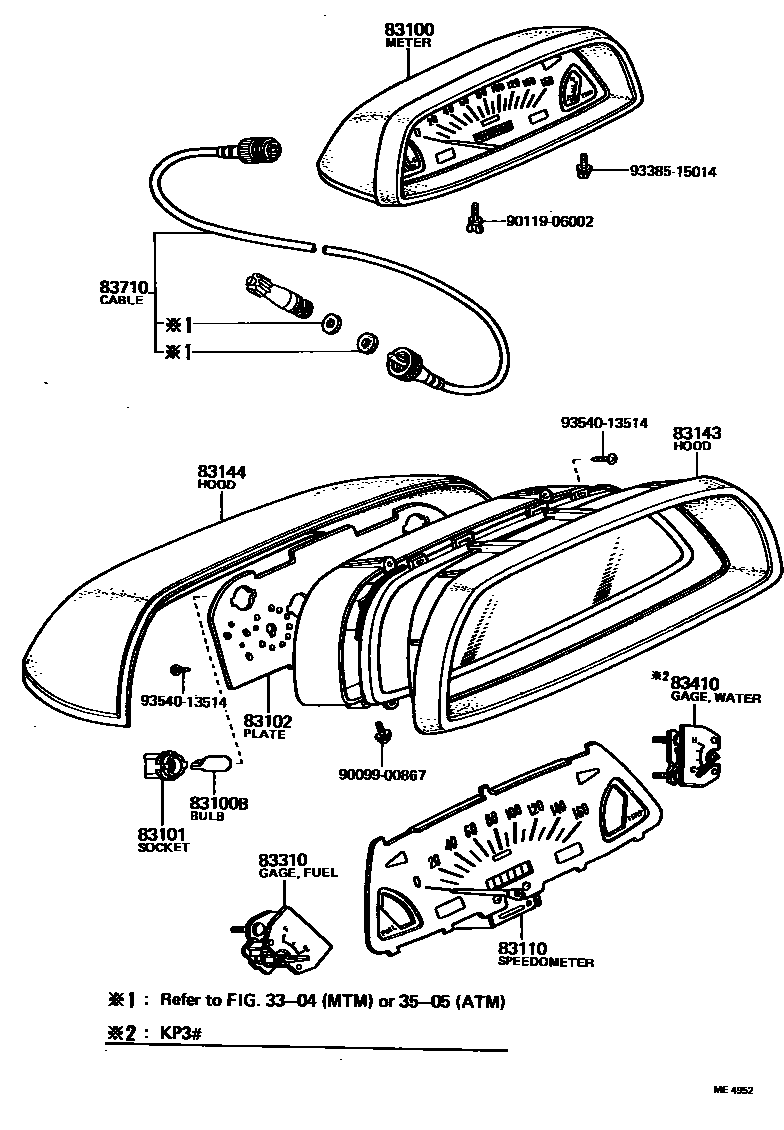

Parts diagram

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

3505SPEEDOMETER DRIVEN GEAR (ATM)

→ Go to FIG 35-05

83100METER ASSY, COMBINATION

main83100-10130i196904-197010

main83100-10131i197010-197112

main83100-10132i197201-197210

main83100-10150i196904-197010

main83100-10151i197010-197112

main83100-10170i196904-197004

main83100-10172i197010-197112

main83100-10200i197201-197210

main83100-10201i197210-197404

main83100-10202i197404-197511

main83100-10203i197511-197908

main83100-10204i197908-198808

main83100-10210i197201-197210

main83100-10211i197210-197404

main83100-10212i197404-197511

main83100-10213i197601-197802

W/TACHOMETER

main83100-10220i197201-197210

main83100-10221i197210-197310

main83100-10230i197201-197210

main83100-10231i197210-197404

main83100-10240i197210-197404

main83100-10241i197404-197511

main83100-10242i197511-197908

main83100-10243i197908-198808

main83100-10350i197601-197802

W/ED MONITOR

83100BBULB, COMBINATION METER, NO.1

main90981-11007×8i196904-196909

main99132-12034×9i196909-198808

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-10010×9i197201-198003

main83101-12010×8i196904-197112

main83101-14030×9i198003-198808

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-10020i196904-197010

main83102-10021i197010-197112

main83102-10022i197201-197210

main83102-10030i196904-197010

main83102-10031i197010-197112

main83102-10040i196904-197010

main83102-10041i197010-197112

main83102-10042i197201-197210

main83102-10043i197210-197301

main83102-10044i197601-197802

main83102-10060i197201-197210

main83102-10061i197210-197301

main83102-10062i197301-197511

main83102-10080i197210-197511

main83102-10081i197511-198808

83110SPEEDOMETER ASSY

main83110-10120i196904-197010

main83110-10121i197010-197112

main83110-10122i197201-197210

main83110-10140i196904-197010

main83110-10160i196904-197010

main83110-10161i197010-197112

main83110-10190i197201-197210

main83110-10191i197210-197312

main83110-10192i197404-197503

main83110-10193i197503-197511

main83110-10194i197511-198808

main83110-10200i197201-197210

main83110-10201i197210-197312

main83110-10202i197312-197503

main83110-10203i197503-197511

main83110-10204i197601-197802

main83110-10210i197201-197210

main83110-10211i197210-197312

main83110-10212i197312-197404

main83110-10220i197210-197312

main83110-10221i197312-197503

main83110-10222i197503-197511

main83110-10223i197511-198808

83143HOOD, COMBINATION METER, FRONT

main83143-10130i196904-197010

main83143-10170i196904-197004

83144HOOD, COMBINATION METER, REAR

main83144-10130i196904-197010

main83144-10170i196904-197010

83310GAGE ASSY, FUEL RECEIVER

main83310-10050i196904-197010

main83310-10051i197010-197511

main83310-10060i196904-197010

main83310-10061i197010-197112

main83310-10070i196904-197010

main83310-10071i197010-197112

main83310-10080i197201-197511

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-10010i196904-197010

main83410-10011i197511-197908

main83410-10012i197908-198808

main83410-10020i196904-197010

main83410-10021i197010-197112

main83410-10030i197201-197511

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-19065i196904-197112

L=1400

main83710-19085i196904-197010

L=1600

main83710-19155i197201-197511

L=1500

main83710-19156i197511-198108

L=1500

main83710-19157i198108-198808

L=1450

main83710-19345i197601-197802

L=1500,W/ED MONITOR

main83710-39075i197010-197112

L=1600

9009900867

main90099-00867

9011906002

main90119-06002

9338515014

main93385-15014

9354013514

main93540-13514

16 parts on this diagram · 5 diagrams in section
