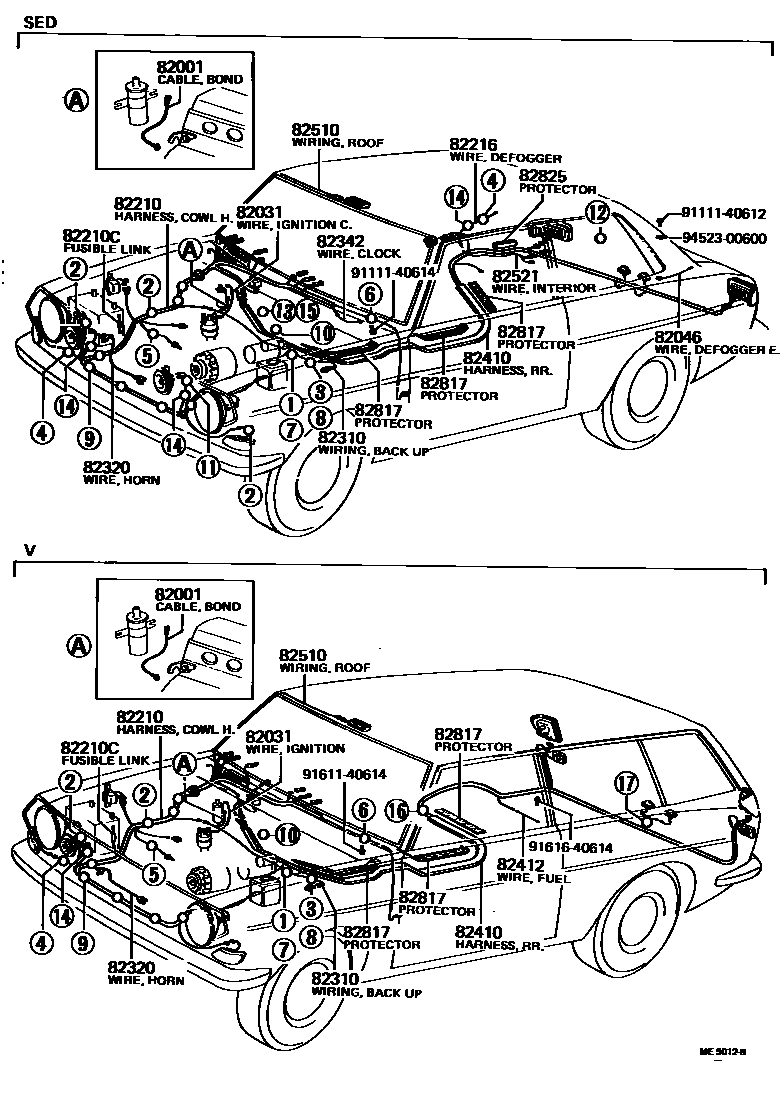

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main90980-07015iKP3#,50196904-198808

L=165

main90980-07035iUP3#196904-197112

L=280

82031WIRE SUB-ASSY, IGNITION COIL

main82031-10010iKP3#197201-197511

main82031-10020iKP30,31..2FC197010-197112

COLD SPEC

main82031-10021iKP30..2FC197201-197212

COLD SPEC

main82031-12060iKP50197601-197802

82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH

main82046-10010iKP30..SL196904-197010

main82046-10011iKP30,31,50..HDX,ST,XL197010-197802

main82046-10030iKP37..HDX197511-197809

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-10270iKP3#..(SED,V)..4F..STD196904-197010

main82210-10271iKP30,36..(SED,V)..4F..STD197010-197112

main82210-10272iKP30,36..4F..STD197201-197310

main82210-10280iKP3#..(SED,V)..4F..DLX196904-197010

main82210-10281iKP30,36..(SED,V)..4F..DLX197010-197112

main82210-10290iKP30..SL196904-197010

main82210-10291iKP31..4F197010-197112

main82210-10292iKP31..S,SR197201-197310

main82210-10310iUP3#..STD196904-197010

main82210-10311iUP3#..STD197010-197112

main82210-10320iUP3#..DLX196904-197010

main82210-10321iUP3#..DLX197010-197112

main82210-10380iKP31..ST197201-197310

main82210-10381iKP31..SR,ST197310-197404

main82210-10382iKP31..SR,ST197404-197511

main82210-10390iKP30..2FC..STD196910-197010

main82210-10400iKP30..2FC..DLX196910-197010

main82210-10401iKP30,31..2FC197010-197112

main82210-10402iKP30..2FC..STD197201-197310

main82210-10420iKP30..4F..HDX197201-197310

main82210-10430iKP30..2FC..HDX197201-197310

main82210-10431iKP30..2FC..HDX197310-197404

main82210-10432iKP30..2FC..HDX197404-197410

main82210-10433iKP30..2FC..HDX197410-197511

main82210-10440iKP31..XL197201-197310

main82210-10441iKP30,31..4F..(HDX,XL)197310-197404

main82210-10442iKP30,31..4F..(HDX,XL)197404-197410

main82210-10443iKP30,31..4F..(HDX,XL)197410-197511

main82210-10450iKP30..4F..DLX;KP36,37..DLX,HDX197201-197310

main82210-10451iKP36,37;KP30..4F..(DLX,STD)197310-197404

main82210-10452iKP36,37;KP30..4F..(DLX,STD)197404-197410

main82210-10453iKP36,37;KP30..4F..(DLX,STD)197410-197511

main82210-10455iKP37197511-197701

main82210-10456iKP3#197701-198808

main82210-10460iKP30..2FC..DLX197201-197310

main82210-10461iKP30..2FC..(DLX,STD)197310-197404

main82210-10462iKP30..2FC..(DLX,STD)197404-197410

main82210-10463iKP30..2FC..(DLX,STD)197410-197511

main82210-10630iKP50..MTM..(DLX,STD)197601-197701

main82210-10631iKP50..MTM..(DLX,STD)197701-197802

main82210-10640iKP50..2FC..DLX197610-197701

main82210-10641iKP50..2FC..DLX197701-197802

main82210-10650iKP50..MTM..HDX197601-197701

main82210-10651iKP50..MTM..HDX197701-197802

main82210-10660iKP50..2FC..HDX197610-197701

main82210-10661iKP50..2FC..HDX197701-197802

main82210-10670iKP50..XL197601-197701

main82210-10671iKP50..XL197701-197802

main82210-10780iKP50..MTM..(DLX,HDX)197701-197802

W/WIPER CONTROL

main82210-10790iKP50..2FC197701-197802

W/WIPER CONTROL

main82210-11100iKP36..PIC..STD196911-197010

main82210-11101iKP36..PIC..STD197010-197112

main82210-11110iKP36..PIC..DLX196911-197010

main82210-11111iKP36..PIC..DLX197010-197112

82210CFUSIBLE LINK

main90982-08012iKP3#,50..DLX,HDX,STD,XL197201-198808

main90982-08024iKP31..S,SR,ST197201-197511

82216WIRE, REAR WINDOW DEFOGGER

main82216-10010iKP30..SL196904-197010

main82216-10011iKP30,31,50..HDX,ST,XL197010-197802

main82216-10050iKP37..HDX197511-197809

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-10030iUP3#196904-197010

main82310-10031iUP3#197010-197112

main82310-10040iKP3#..4F196904-197004

main82310-10041iKP3#..4F197004-197010

main82310-10042iKP3#..4F197010-197112

main82310-10043iKP3#..4F197201-198504

main82310-10050iKP30..2FC196910-197010

main82310-10051iKP30,31,50..2FC197010-197802

main82310-10080iKP50..4F197601-197802

main82310-10090iKP50..5F197606-197802

main82310-10321iKP39198504-198808

82320WIRE ASSY, TO HORN

main88649-10010iKP3#196904-196908

main88649-10020iKP3#196908-197010

main88649-87101iKP3#197010-197112

82342WIRE, CLOCK

main82342-10010iKP31..4F197004-197112

main82342-10020iKP31..ST197201-197511

main82342-10030iKP30,31..4F..(HDX,XL)197201-197511

W/RR WINDOW DEFOGGER

main82342-10040iKP30..4F..(DLX,HDX)197201-197511

main82342-10041iKP50..MTM..(HDX,XL)197601-197802

main82342-10050iKP31..S,SR197201-197511

82410HARNESS ASSY, WIRING TO REAR LAMP

main82410-10080iKP30,UP30..DLX,STD196904-197112

main82410-10081iKP30..DLX,STD197201-197310

main82410-10090iKP30,31..HDX,SL,SR196904-197112

main82410-10091iKP31..S,SR197201-197310

main82410-10120iKP30,31..HDX,ST,XL197201-197310

main82410-10121iKP30,31197310-197511

main82410-10160iKP50197601-197802

main82410-11070iKP36,UP36..V196904-197112

main82410-11071iKP36,37..V197201-197310

main82410-11072iKP36,37..V197310-197511

main82410-11075iKP37..V197511-197809

main82410-11120iKP36..PIC196911-197010

main82410-11121iKP36,37..PIC197201-197310

main82410-11122iKP36,37..PIC197310-197511

main82410-11125iKP3#..PIC197511-198808

82412WIRE, FUEL GAGE

main82412-11020iKP36,37,UP36..V196904-197511

main82412-11021iKP37..V197511-197809

main82412-11040iKP36,37..PIC196911-197511

main82412-11041iKP3#..PIC197511-198808

82510WIRING ASSY, ROOF

main82520-10030iKP3#,50..STD197511-198808

main82520-10040iKP3#,UP3#..DLX,HDX,SL,ST,XL196904-197511

82521WIRE, INTERIOR LAMP FEED, A

main82520-10070iKP31..SR197103-197112

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-10020iKP3#,50,UP3#196904-198808

L=750

main82817-10030×2iKP3#,UP3#196904-197112

L=450

main82817-11010iKP36,37,UP36196904-197707

L=350

main82817-14020iKP50197601-197802

L=250

82825PROTECTOR, WIRING HARNESS

main55626-10010iKP30,31,50197201-197802

L=80

main82817-10040iKP30,31,UP30196904-197112

L=150

9111140612

main91111-40612

9111140614

main91111-40614

9161140614

main91611-40614

9161640614

main91616-40614

9452300600

main94523-00600

20 parts on this diagram · 7 diagrams in section
