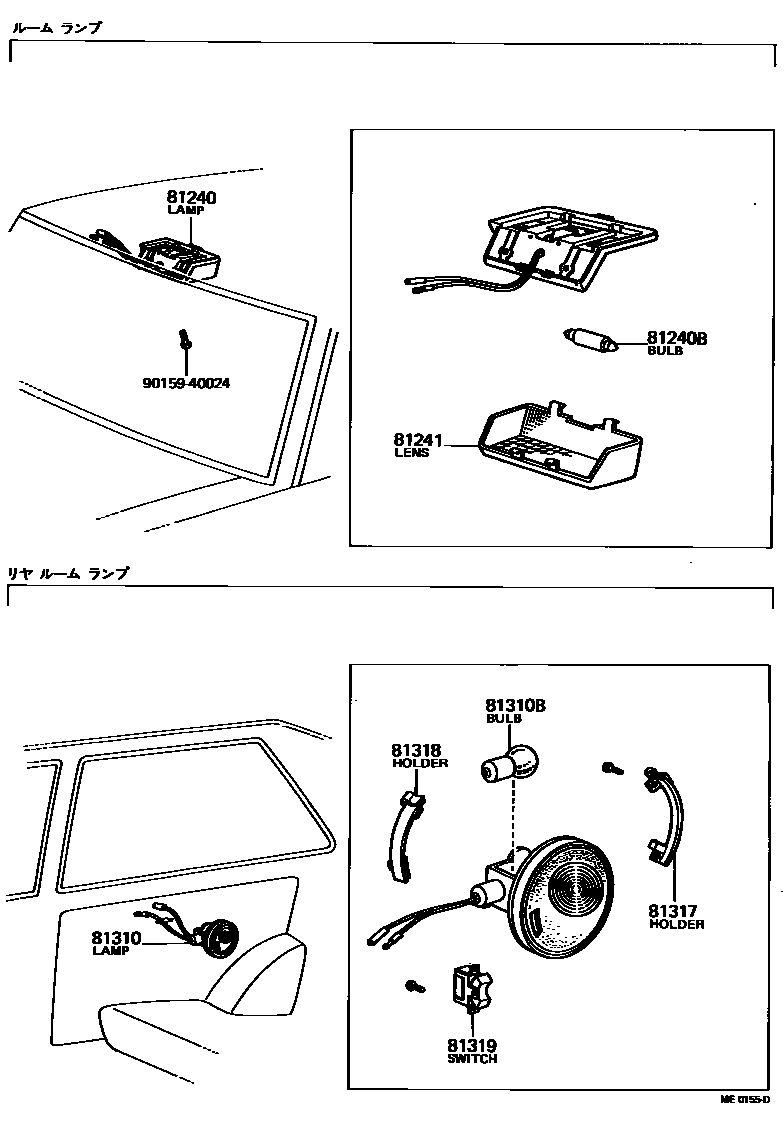

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-10011iKP3#,UP3#..DLX,HDX,SL196904-197103

main81240-10012-01iKP31..ST197201-197511

BLACK,BLACK

main81240-10012-03iKP3#,50..DLX,HDX,XL197511-198808

GRAY,GRAY

main81240-10021iKP30,36,UP3#..STD196904-197103

main81240-10022-01iKP31..S,SR197201-197511

BLACK,BLACK

main81240-10022-03iKP3#,UP3#..SR,STD197103-197112

GRAY

81240BBULB, ROOM LAMP, NO.1

main99132-13050iKP3#,50,UP3#196904-198808

81241LENS, ROOM LAMP, NO.1

main81241-10020iKP3#,50,UP3#196904-198808

81310LAMP ASSY, REAR ROOM, RH

main81250-30011iKP31..SR197103-197112

81310BBULB, REAR ROOM LAMP

main99132-13060iKP31..SR197103-197112

81317HOLDER, REAR ROOM LAMP SPRING, NO.1

main81257-30011iKP31..SR197103-197112

RH

81318HOLDER, REAR ROOM LAMP SPRING, NO.2

main81258-30011iKP31..SR197103-197112

LH

81319SWITCH, REAR ROOM LAMP

main81259-30011iKP31..SR197103-197112

9015940024

main90159-40024

9 parts on this diagram · 1 diagram in section
