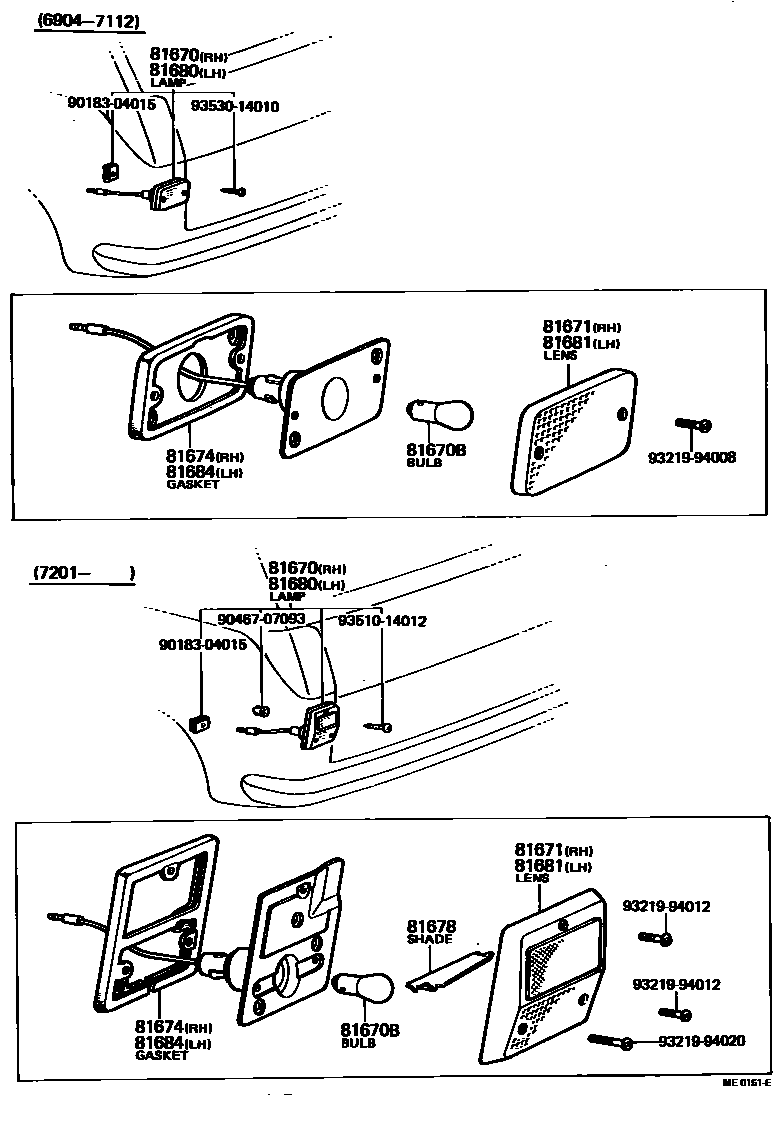

BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-19015iKP36,UP36..V196904-197112

main81670-19045iKP36,37..V197201-197809

81670BBULB(FOR BACK-UP LAMP)

main90981-12002×2iKP36,37,UP36..V196904-197306

12V 12W

main99132-11120×2iKP36,37..V197306-197809

12V 12W

81671LENS, BACK-UP LAMP, RH

main81671-11010iKP36,UP36..V196904-197112

main81671-11011iKP36,37..V197201-197809

81674GASKET, BACK-UP LAMP BODY, RH

main81672-11010iKP36,UP36..V196904-197112

main81672-11011iKP36,37..V197201-197809

81678SHADE, BACK UP LAMP

main81678-11011×2iKP36,37..V197201-197809

81680LAMP ASSY, BACK UP, LH

main81680-19015iKP36,UP36..V196904-197112

main81680-19045iKP36,37..V197201-197809

81681LENS, BACK-UP LAMP, LH

main81671-11010iKP36,UP36..V196904-197112

main81681-11011iKP36,37..V197201-197809

81684GASKET, BACK UP LAMP BODY, LH

main81682-11010iKP36,UP36..V196904-197112

main81682-11011iKP36,37..V197201-197809

9018304015

main90183-04015

9046707093

main90467-07093

9321994008

main93219-94008

9321994012

main93219-94012

9321994020

main93219-94020

9351014012

main93510-14012

9353014010

main93530-14010

15 parts on this diagram · 1 diagram in section
