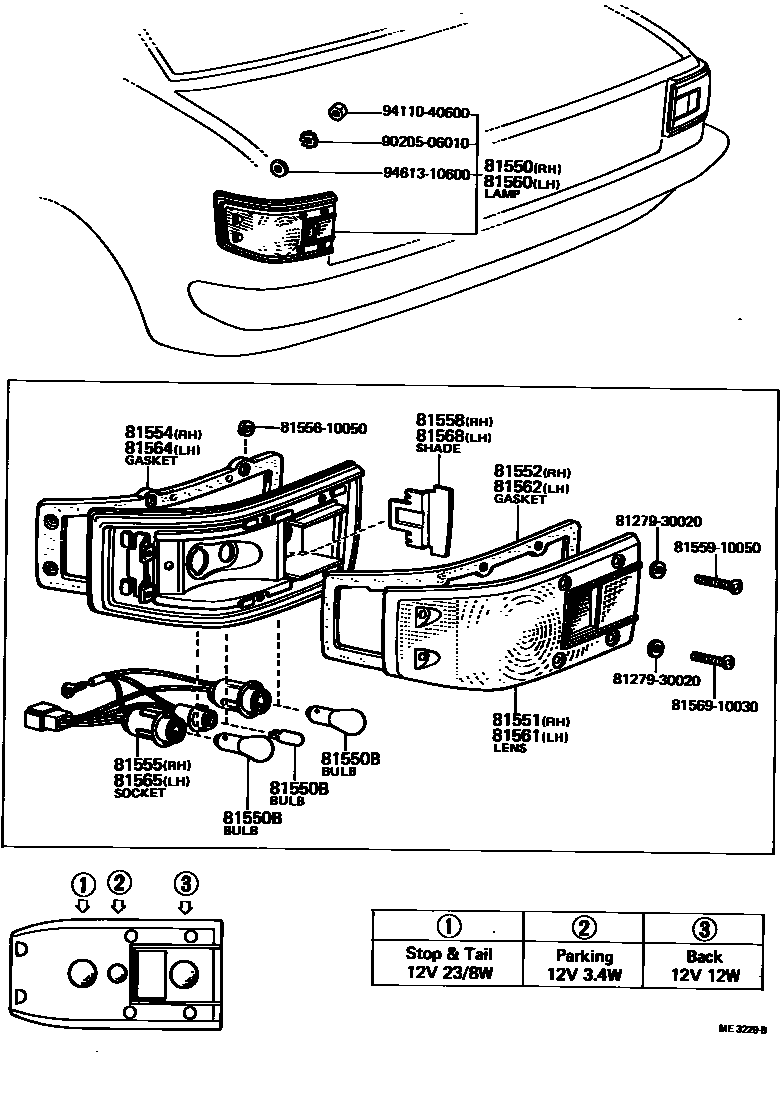

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-10052iKP30,31..DLX,HDX,STD,XL197201-197310

main81550-10053iKP30,31..DLX,HDX,STD,XL197310-197511

main81550-10054iKP50197601-197802

main81550-10100iKP31..S,SR,ST197201-197310

main81550-10101iKP31..SR,ST197310-197511

main81550-19125iKP30,UP30196904-197010

main81550-19126iKP30,31,UP30197010-197112

main81550-19155iKP36,UP36..V196904-197112

main81550-19175iKP36,37..PIC196911-197310

main81550-19176iKP36,37,38,39..PIC197310-198808

main81550-19555iKP36,37..V197201-197310

main81550-19556iKP36,37..V197310-197809

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12002×2iKP30,31,UP30196904-197306

12V 12W

main90981-12007×2iKP31..S,SR,ST197201-197310

12V 7/3.4W

main99132-11050×2iKP31..SR,ST197310-197511

main99132-11100×2iKP36,37,38,39..PIC196911-198808

main99132-11120×2iKP31..SR,ST197310-197511

12V 12W

main99132-11230×2iKP36..PIC196911-197112

main99132-12034×2iKP31..XL;KP30,36,37,UP3#196904-197310

main99132-21210×2iKP3#,50197310-198808

main99132-21230×2iKP3#,UP3#196904-197310

81551LENS, REAR COMBINATION LAMP, RH

main81551-10050iKP30,UP30196904-197010

main81551-10051iKP30,31,UP30197010-197112

main81551-10052iKP30,31..DLX,HDX,STD,XL197201-197310

main81551-10053iKP30,31..DLX,HDX,STD,XL197310-197511

main81551-10054iKP50197601-197802

main81551-10100iKP31..S,SR,ST197201-197511

main81551-11050iKP36,UP36..V196904-197112

main81551-11051iKP36,37..V197201-197809

main81551-11070iKP36,37..PIC196911-197310

UPR

main81551-11071iKP36,37,38,39..PIC197310-198808

UPR

main81559-11070iKP36,37,38,39..PIC196911-198808

LWR

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-10050iKP30,31,UP30196904-197112

main81552-10051iKP30,31197201-197310

main81552-11050iKP36,37,UP36..V196904-197809

main81554-10051iKP30,31,50..DLX,HDX,STD,XL197310-197802

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-10050iKP30,31,UP30196904-197112

main81554-11050iKP36,37,UP36..V196904-197809

main81554-11070iKP36,37,38,39..PIC196911-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-10050iKP30,31,UP30196904-197112

main81555-10051iKP30,31..DLX,HDX,STD,XL197201-197310

main81555-10052iKP30,31,50..DLX,HDX,STD,XL197310-197802

main81555-10100iKP31..S,SR,ST197201-197310

main81555-10101iKP31..SR,ST197310-197511

main81555-11051iKP36,37..V197201-197310

main81555-11052iKP36,37..V197310-197809

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-10050iKP30,UP30196904-197010

main81557-10051iKP30,31,UP30197010-197112

main81557-11051iKP36,37..V197201-197809

main81557-11070iKP36,37,38,39..PIC196911-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-10032iKP30,31..DLX,HDX,STD,XL197201-197310

main81560-10033iKP30,31..DLX,HDX,STD,XL197310-197511

main81560-10034iKP50197601-197802

main81560-10080iKP31..S,SR,ST197201-197310

main81560-10081iKP31..SR,ST197310-197511

main81560-11032iKP36,37..V197310-197809

main81560-19115iKP30,UP30196904-197010

main81560-19116iKP30,31,UP30197010-197112

main81560-19145iKP36,UP36..V196904-197112

main81560-19165iKP36,37..PIC196911-197310

main81560-19166iKP36,37,38,39..PIC197310-198808

main81560-19535iKP36,37..V197201-197310

81561LENS, REAR COMBINATION LAMP, LH

main81551-11070iKP36,37..PIC196911-197310

UPR

main81551-11071iKP36,37,38,39..PIC197310-198808

UPR

main81559-11070iKP36,37,38,39..PIC196911-198808

LWR

main81561-10030iKP30,UP30196904-197010

main81561-10031iKP30,31,UP30197010-197112

main81561-10032iKP30,31..DLX,HDX,STD,XL197201-197310

main81561-10033iKP30,31..DLX,HDX,STD,XL197310-197511

main81561-10034iKP50197601-197802

main81561-10080iKP31..S,SR,ST197201-197511

main81561-11030iKP36,UP36..V196904-197112

main81561-11031iKP36,37..V197201-197809

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-10050iKP30,31,UP30196904-197112

main81552-10051iKP30,31197201-197310

main81552-11050iKP36,37,UP36..V196904-197809

main81564-10031iKP30,31,50..DLX,HDX,STD,XL197310-197802

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-11050iKP36,37,UP36..V196904-197809

main81554-11070iKP36,37,38,39..PIC196911-198808

main81564-10030iKP30,31,UP30196904-197112

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-10050iKP30,31,UP30196904-197112

main81555-11051iKP36,37..V197201-197310

main81555-11052iKP36,37..V197310-197809

main81565-10030iKP30,31..DLX,HDX,STD,XL197201-197310

main81565-10031iKP30,31,50..DLX,HDX,STD,XL197310-197802

main81565-10080iKP31..S,SR,ST197201-197310

main81565-10081iKP31..SR,ST197310-197511

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-11070iKP36,37,38,39..PIC196911-198808

main81567-10030iKP30,UP30196904-197010

main81567-10031iKP30,31,UP30197010-197112

main81567-11031iKP36,37..V197201-197809

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8155610050RIM, REAR COMBINATION LAMP, RH

main81556-10050

8155910050MOULDING, REAR COMBINATION LAMP, RH

main81559-10050

8156910030MOULDING, REAR COMBINATION LAMP, LH

main81569-10030

9020506010

main90205-06010

9411040600

main94110-40600

9461310600

main94613-10600

20 parts on this diagram · 7 diagrams in section
