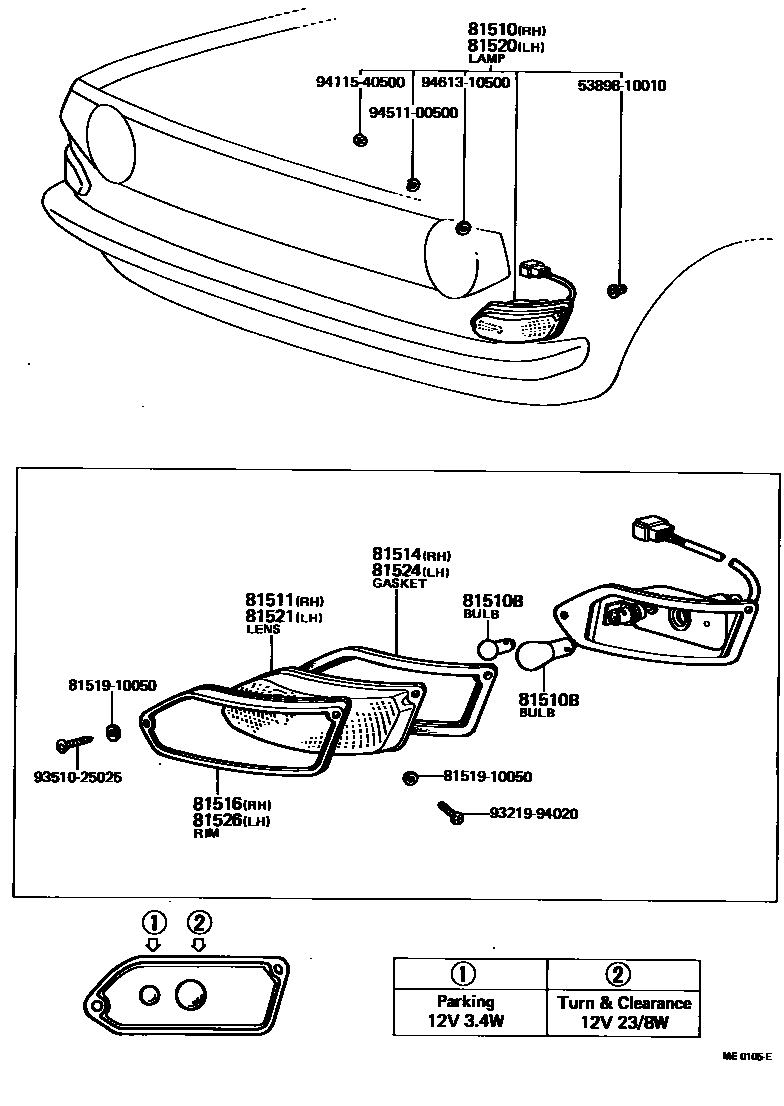

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19075iKP3#,UP3#196904-197112

main81510-19295iKP3#197201-197310

main81510-19296iKP3#,50197310-198808

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11034×2iKP3#,UP3#196904-197112

main99132-11050×2iKP3#,50197310-198808

main99132-11230×2iKP3#,50197310-198808

main99132-12034×2iKP3#197201-197310

main99132-21230×2iKP3#,UP3#196904-197310

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-10050iKP3#,UP3#196904-197112

main81511-12060iKP3#197201-197310

main81511-12061iKP3#,50197310-198808

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81512-10050iKP3#,UP3#196904-197112

main81512-12060iKP3#,50197201-198808

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-10050iKP3#,UP3#196904-197112

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19075iKP3#,UP3#196904-197112

main81520-19295iKP3#197201-197310

main81520-19296iKP3#,50197310-198808

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-10030iKP3#,UP3#196904-197112

main81521-12050iKP3#197201-197310

main81521-12051iKP3#,50197310-198808

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81522-10030iKP3#,UP3#196904-197112

main81522-12050iKP3#,50197201-198808

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81526-10030iKP3#,UP3#196904-197112

5389810010PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH

main53898-10010

8151910050BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10050

9321994020

main93219-94020

9351025025

main93510-25025

9411540500

main94115-40500

9451100500

main94511-00500

9461310500

main94613-10500

16 parts on this diagram · 2 diagrams in section
