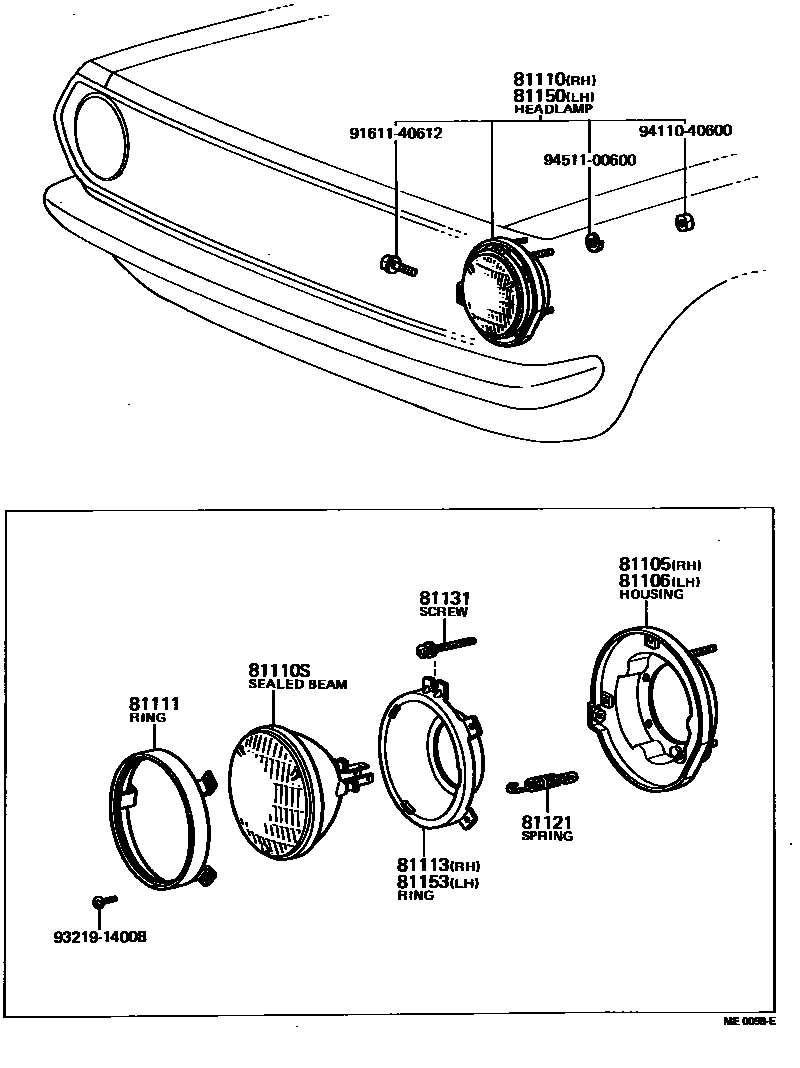

HEADLAMP

0001 1 0002 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-10050iKP3#,UP3#196904-197010

KOITO

main81105-10051iKP3#,UP3#197010-197112

KOITO

main81105-10060iKP3#,UP3#196904-197010

TOSHIBA

main81105-10061iKP3#,UP3#197010-197112

TOSHIBA

main81105-10062iKP3#,50197201-198808

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81105-10062iKP3#,50197201-198808

main81106-10010iKP3#,UP3#196904-197010

KOITO

main81106-10011iKP3#,UP3#197010-197112

KOITO

main81106-10020iKP3#,UP3#196904-197010

TOSHIBA

main81106-10021iKP3#,UP3#197010-197112

TOSHIBA

81110HEADLAMP ASSY, RH

main81110-10064iKP39198608-198808

main81110-19015iKP3#,UP3#196904-197010

main81110-19016iKP3#,UP3#197010-197112

main81110-19105iKP3#,50197201-197602

main81110-19106iKP37,50197602-197903

main81110-19107iKP3#197903-198608

81110SSEALED BEAM UNIT, NO.1

main90981-01010×2iKP3#,UP3#196904-196908

12V 50/40W,KOITO

main90981-01012×2iKP3#,UP3#196904-197112

12V 50/40W,TOSHIBA

main90981-01015×2iKP3#,UP3#196908-197112

main90981-01024×2iKP37,50197703-197903

12V 50/40W

main90981-01030×2iKP3#197903-198808

81111RING, SEALED BEAM RETAINING

main81111-10062×2iKP3#,50197201-198808

main81111-12011×2iKP3#,UP3#196904-197112

KOITO

main81111-12020×2iKP3#,UP3#196904-197103

TOSHIBA

main81111-12021×2iKP3#,UP3#197103-197112

TOSHIBA

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10050iKP3#,UP3#196904-197112

KOITO

main81113-10060iKP3#,UP3#196904-197103

TOSHIBA

main81113-10061iKP3#,UP3#197103-197112

TOSHIBA

81121SPRING, HEADLAMP TENSION

main81121-10062×2iKP3#,50197201-198808

main81121-62010×2iKP3#,UP3#196904-197112

KOITO

main90506-18018×2iKP3#,UP3#196904-197112

TOSHIBA

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iKP3#,UP3#196904-197112

KOITO

main81131-20053×4iKP3#,50197201-198808

81150HEADLAMP ASSY, LH

main81110-10064iKP39198608-198808

main81110-19105iKP3#,50197201-197602

main81110-19106iKP37,50197602-197903

main81110-19107iKP3#197903-198608

main81150-19015iKP3#,UP3#196904-197010

main81150-19016iKP3#,UP3#197010-197112

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-10010iKP3#,UP3#196904-197112

KOITO

main81153-10020iKP3#,UP3#196904-197103

TOSHIBA

main81153-10021iKP3#,UP3#197103-197112

TOSHIBA

9161140612

main91611-40612

9321914008

main93219-14008

9411040600

main94110-40600

9451100600

main94511-00600

14 parts on this diagram · 2 diagrams in section
