INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

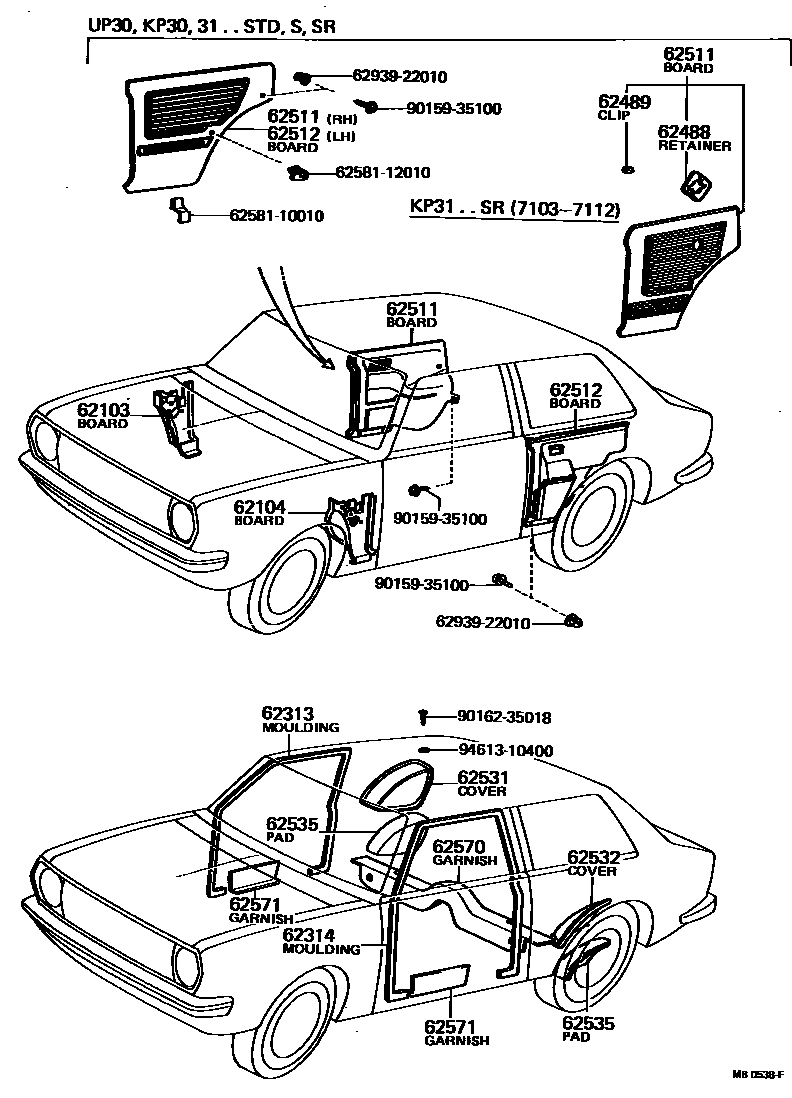

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62113-10030i196904-197701
main62113-10030-01i197701-198808
BLACK,BLACK,TRIM2#
main62113-10040i196904-197112
W/UNDER TRAY
main62113-10070i197601-197701
main62113-10070-01i197701-197802
BLACK,BLACK,TRIM2#
main62113-10070-06i197701-197802
LIGHT BROWN,BROWN,TRIM4#
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62114-10030i196904-197701
main62114-10030-01i197701-198808
BLACK,BLACK,TRIM2#
main62114-10040i197201-197701
main62114-10040i196904-197112
W/UNDER TRAY
main62114-10040-01i197701-198808
BLACK,BLACK,TRIM2#
main62114-10040-06i197701-197802
LIGHT BROWN,BROWN,TRIM4#
62313MOULDING, FRONT DOOR OPENING TRIM, RH
main62353-10010i196904-197010
main62353-10011-01i197010-198808
BLACK,BLACK,TRIM2#
main62353-10011-06i197201-197410
OLIVE BROWN,BROWN,TRIM4#
main62353-10011-16i197410-197701
BROWN,BROWN,TRIM4#
main62353-10011-26i197701-197802
LIGHT BROWN,BROWN,TRIM4#
62314MOULDING, FRONT DOOR OPENING TRIM, LH
main62353-10010i196904-197010
main62353-10011-01i197010-198808
BLACK,BLACK,TRIM2#
main62353-10011-06i197201-197410
OLIVE BROWN,BROWN,TRIM4#
main62353-10011-16i197410-197701
BROWN,BROWN,TRIM4#
main62353-10011-26i197701-197802
LIGHT BROWN,BROWN,TRIM4#
62488RETAINER, MAP LAMP
main62488-10010i197103-197112
62489CLIP, MAP LAMP RETAINER
main62489-10010i197103-197112
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-10040-01i196904-197010
BLACK,BLACK
main62510-10040-02i196904-197010
RED,RED/MAROON
main62510-10041-01i197010-197112
BLACK,BLACK
main62510-10041-09i197010-197112
YELLOW,YELLOW
main62510-10042-01i197201-197310
BLACK,BLACK,TRIM2#
main62510-10042-06i197201-197310
OLIVE BROWN,BROWN,TRIM4#
main62510-10043-01i197310-197701
BLACK,BLACK,TRIM2#
main62510-10043-06i197310-197410
OLIVE BROWN,BROWN,TRIM4#
main62510-10043-16i197410-197511
BROWN,BROWN,TRIM4#
main62510-10044-01i197701-197802
BLACK,BLACK,TRIM2#
main62510-10050-01i196904-197112
BLACK,BLACK
main62510-10050-01i197201-197701
BLACK,BLACK,TRIM2#
main62510-10050-02i196904-197010
RED,RED/MAROON
main62510-10050-05i197010-197112
BEIGE,BEIGE
main62510-10050-06i197201-197410
OLIVE BROWN,BROWN,TRIM4#
main62510-10050-09i197010-197112
YELLOW,YELLOW
main62510-10050-11i197701-197802
BLACK,BLACK,TRIM2#
main62510-10050-16i197410-197511
BROWN,BROWN,TRIM4#
main62510-10050-26i197601-197701
BROWN,BROWN,TRIM4#
main62510-10050-36i197701-197802
LIGHT BROWN,BROWN,TRIM4#
main62510-10060-01i197103-197112
BLACK,BLACK
main62510-11020-01i196904-197010
FR,BLACK,BLACK
main62510-11020-02i196904-197010
FR,RED,RED/MAROON
main62510-11021-01i197010-197112
FR,BLACK,BLACK
main62510-11022-01i197201-197310
FR,BLACK,BLACK,TRIM2#
main62510-11022-06i197201-197310
FR,OLIVE BROWN,BROWN,TRIM4#
main62510-11023-01i197310-197701
FR,BLACK,BLACK,TRIM2#
main62510-11023-06i197310-197410
FR,OLIVE BROWN,BROWN,TRIM4#
main62510-11023-16i197410-197511
FR,BROWN,BROWN,TRIM4#
main62510-11024-01i197701-197809
FR,BLACK,BLACK,TRIM2#
main62510-11030-01i196904-197010
FR,BLACK,BLACK
main62510-11031-01i197010-197112
FR,BLACK,BLACK
main62510-11032-01i197201-197310
FR,BLACK,BLACK,TRIM2#
main62510-11032-06i197201-197310
FR,OLIVE BROWN,BROWN,TRIM4#
main62510-11033-01i197310-197701
FR,BLACK,BLACK,TRIM2#
main62510-11033-06i197310-197410
FR,OLIVE BROWN,BROWN,TRIM4#
main62510-11033-16i197410-197511
FR,BROWN,BROWN,TRIM4#
main62510-11034i197701-197809
FR,BLACK
main62513-11030-01i196904-197112
RR,BLACK,BLACK
main62513-11030-02i196904-197010
RR,RED,RED/MAROON
main62513-11031-06i197201-197410
RR,OLIVE BROWN,BROWN,TRIM4#
main62513-11031-11i197201-197701
RR,BLACK,BLACK,TRIM2#
main62513-11031-16i197410-197511
RR,BROWN,BROWN,TRIM4#
main62513-11031-21i197701-197809
RR,BLACK,BLACK,TRIM2#
62512BOARD, QUARTER INSIDE TRIM, LH
main62514-11020-01i196904-197112
RR,BLACK,BLACK
main62514-11020-02i196904-197010
RR,RED,RED/MAROON
main62514-11021-06i197201-197410
RR,OLIVE BROWN,BROWN,TRIM4#
main62514-11021-11i197201-197701
RR,BLACK,BLACK,TRIM2#
main62514-11021-16i197410-197511
RR,BROWN,BROWN,TRIM4#
main62514-11021-21i197701-197809
RR,BLACK,BLACK,TRIM2#
main62520-10040-01i196904-197010
BLACK,BLACK
main62520-10040-02i196904-197010
RED,RED/MAROON
main62520-10041-01i197010-197112
BLACK,BLACK
main62520-10041-09i197010-197112
YELLOW,YELLOW
main62520-10042-01i197201-197310
BLACK,BLACK,TRIM2#
main62520-10042-06i197201-197310
OLIVE BROWN,BROWN,TRIM4#
main62520-10043-01i197310-197701
BLACK,BLACK,TRIM2#
main62520-10043-06i197310-197410
OLIVE BROWN,BROWN,TRIM4#
main62520-10043-16i197410-197511
BROWN,BROWN,TRIM4#
main62520-10044-01i197701-197802
BLACK,BLACK,TRIM2#
main62520-10050-01i197201-197701
BLACK,BLACK,TRIM2#
main62520-10050-01i196904-197112
BLACK,BLACK
main62520-10050-02i196904-197010
RED,RED/MAROON
main62520-10050-05i197010-197112
BEIGE,BEIGE
main62520-10050-06i197201-197410
OLIVE BROWN,BROWN,TRIM4#
main62520-10050-09i197010-197112
YELLOW,YELLOW
main62520-10050-11i197701-197802
BLACK,BLACK,TRIM2#
main62520-10050-16i197410-197511
BROWN,BROWN,TRIM4#
main62520-10050-26i197601-197701
BROWN,BROWN,TRIM4#
main62520-10050-36i197701-197802
LIGHT BROWN,BROWN,TRIM4#
main62520-11020-01i196904-197010
FR,BLACK,BLACK
main62520-11020-02i196904-197010
FR,RED,RED/MAROON
main62520-11021-01i197010-197112
FR,BLACK,BLACK
main62520-11022-01i197201-197310
FR,BLACK,BLACK,TRIM2#
main62520-11022-06i197201-197310
FR,OLIVE BROWN,BROWN,TRIM4#
main62520-11023-01i197310-197701
FR,BLACK,BLACK,TRIM2#
main62520-11023-06i197310-197410
FR,OLIVE BROWN,BROWN,TRIM4#
main62520-11023-16i197410-197511
FR,BROWN,BROWN,TRIM4#
main62520-11024-01i197701-197809
FR,BLACK,BLACK,TRIM2#
main62520-11030-01i196904-197010
FR,BLACK,BLACK
main62520-11031-01i197010-197112
FR,BLACK,BLACK
main62520-11032-01i197201-197310
FR,BLACK,BLACK,TRIM2#
main62520-11032-06i197201-197310
FR,OLIVE BROWN,BROWN,TRIM4#
main62520-11033-01i197310-197701
FR,BLACK,BLACK,TRIM2#
main62520-11033-06i197310-197410
FR,OLIVE BROWN,BROWN,TRIM4#
main62520-11033-16i197410-197511
FR,BROWN,BROWN,TRIM4#
main62520-11034i197701-197809
FR,BLACK
62531COVER, WHEEL HOUSE TRIM, RH
main62530-10030-01i196904-197112
BLACK,BLACK
main62530-10030-02i196904-197010
RED,RED/MAROON
main62530-10030-09i197010-197112
YELLOW,YELLOW
main62530-10031-01i197201-197310
BLACK,BLACK,TRIM2#
main62530-10031-06i197201-197310
OLIVE BROWN,BROWN,TRIM4#
main62530-10032-01i197310-197701
BLACK,BLACK,TRIM2#
main62530-10032-06i197310-197410
OLIVE BROWN,BROWN,TRIM4#
main62530-10032-16i197410-197511
BROWN,BROWN,TRIM4#
main62530-10033-01i197701-197802
BLACK,BLACK,TRIM2#
62532COVER, WHEEL HOUSE TRIM, LH
main62540-10030-01i196904-197112
BLACK,BLACK
main62540-10030-02i196904-197010
RED,RED/MAROON
main62540-10030-09i197010-197112
YELLOW,YELLOW
main62540-10031-01i197201-197310
BLACK,BLACK,TRIM2#
main62540-10031-06i197201-197310
OLIVE BROWN,BROWN,TRIM4#
main62540-10032-01i197310-197701
BLACK,BLACK,TRIM2#
main62540-10032-06i197310-197410
OLIVE BROWN,BROWN,TRIM4#
main62540-10032-16i197410-197511
BROWN,BROWN,TRIM4#
main62540-10033-01i197701-197802
BLACK,BLACK,TRIM2#
62535PAD, QUARTER WHEEL HOUSE TRIM
main62531-10020i196904-197802
62570GARNISH ASSY, CENTER FLOOR CROSSMEMBER
main62575-10010-01i197201-197802
BLACK,BLACK,TRIM2#
main62575-10010-06i197201-197208
OLIVE BROWN,BROWN,TRIM4#
main62575-10010-16i197208-197410
OLIVE BROWN,BROWN,TRIM4#
main62575-10010-26i197410-197701
BROWN,BROWN,TRIM4#
main62575-10010-36i197701-197802
LIGHT BROWN,BROWN,TRIM4#
main62575-11010-01i197201-197809
BLACK,BLACK,TRIM2#
main62575-11010-06i197201-197208
OLIVE BROWN,BROWN,TRIM4#
main62575-11010-16i197208-197410
OLIVE BROWN,BROWN,TRIM4#
main62575-11010-26i197410-197511
BROWN,BROWN,TRIM4#
62571GARNISH, ROCKER PANEL INNER, FRONT
main62571-10010i197010-197112
RH
main62571-10011-01i197201-197511
RH,BLACK,BLACK,TRIM2#
main62571-10011-06i197201-197208
RH,OLIVE BROWN,BROWN,TRIM4#
main62571-10011-16i197208-197410
RH,OLIVE BROWN,BROWN,TRIM4#
main62571-10011-26i197410-197511
RH,BROWN,BROWN,TRIM4#
main62572-10010i197010-197112
LH
main62572-10011-01i197201-197511
LH,BLACK,BLACK,TRIM2#
main62572-10011-06i197201-197208
LH,OLIVE BROWN,BROWN,TRIM4#
main62572-10011-16i197208-197410
LH,OLIVE BROWN,BROWN,TRIM4#
main62572-10011-26i197410-197511
LH,BROWN,BROWN,TRIM4#
6258110010RETAINER, QUARTER TRIM
main62581-10010
6258112010RETAINER, QUARTER TRIM
main62581-12010
6293922010RETAINER, ROOF SIDE VENT
main62939-22010
9015935100
main90159-35100
9016235018
main90162-35018
9461310400
main94613-10400

19 parts on this diagram · 3 diagrams in section
