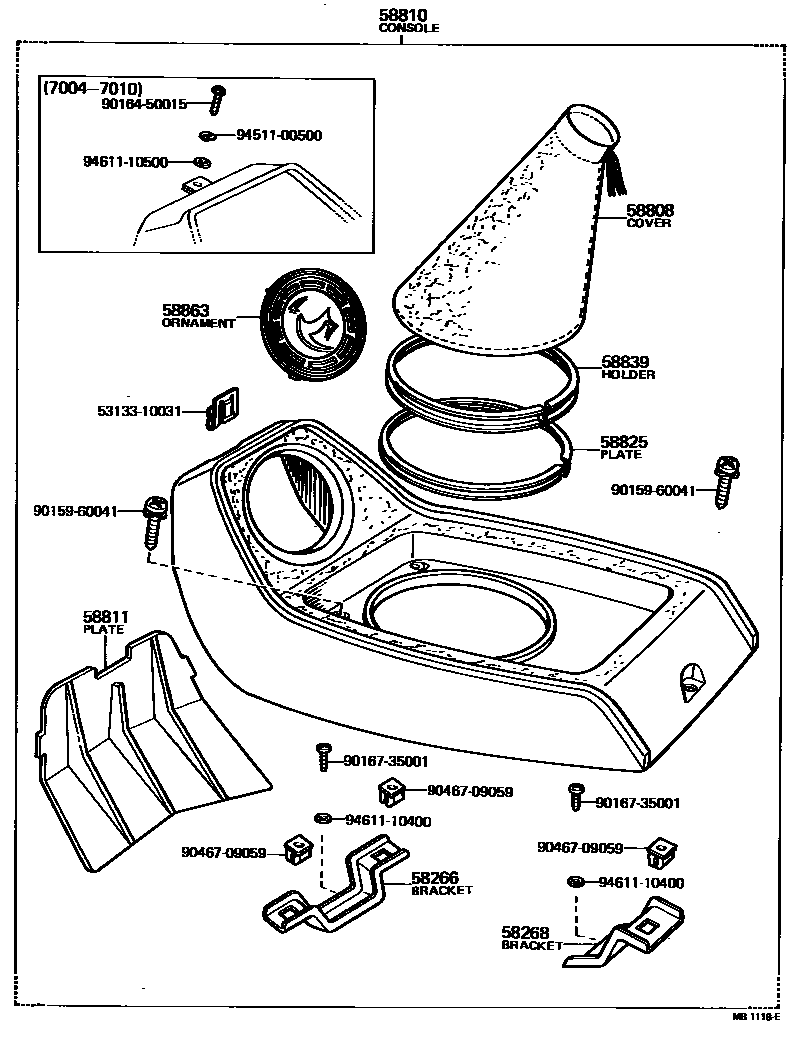

CONSOLE BOX & BRACKET

0001 1 0002 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58266-10010iKP30,31,37..4F..(DLX,HDX,S,SR,ST,XL)197201-197802

main58851-10020iKP31..4F..HDX197004-197112

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58267-10010iKP50..MTM..(HDX,XL)197201-197802

main58852-10020iKP31..4F..HDX197004-197112

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10010iKP50..MTM..(HDX,XL)197201-197802

main58824-10010iKP31..4F..HDX197004-197112

58810CONSOLE ASSY

main58810-19046iKP31..4F..HDX197010-197112

58811PLATE, CONSOLE, FRONT

main58815-10011iKP31..4F..HDX197010-197112

58825PLATE, SHIFTING HOLE COVER RETAINER

main58825-10010iKP31..4F..HDX197010-197112

58839HOLDER, SHIFTING HOLE COVER

main58839-10010iKP31..4F..HDX197004-197112

58863ORNAMENT, CONSOLE

main58863-10011iKP31..4F..HDX197010-197112

5313310031CLIP, HEADLAMP RIM

main53133-10031

9015960041

main90159-60041

9016450015

main90164-50015

9016735001

main90167-35001

9046709059

main90467-09059

9451100500

main94511-00500

9461110400

main94611-10400

9461110500

main94611-10500

16 parts on this diagram · 2 diagrams in section
