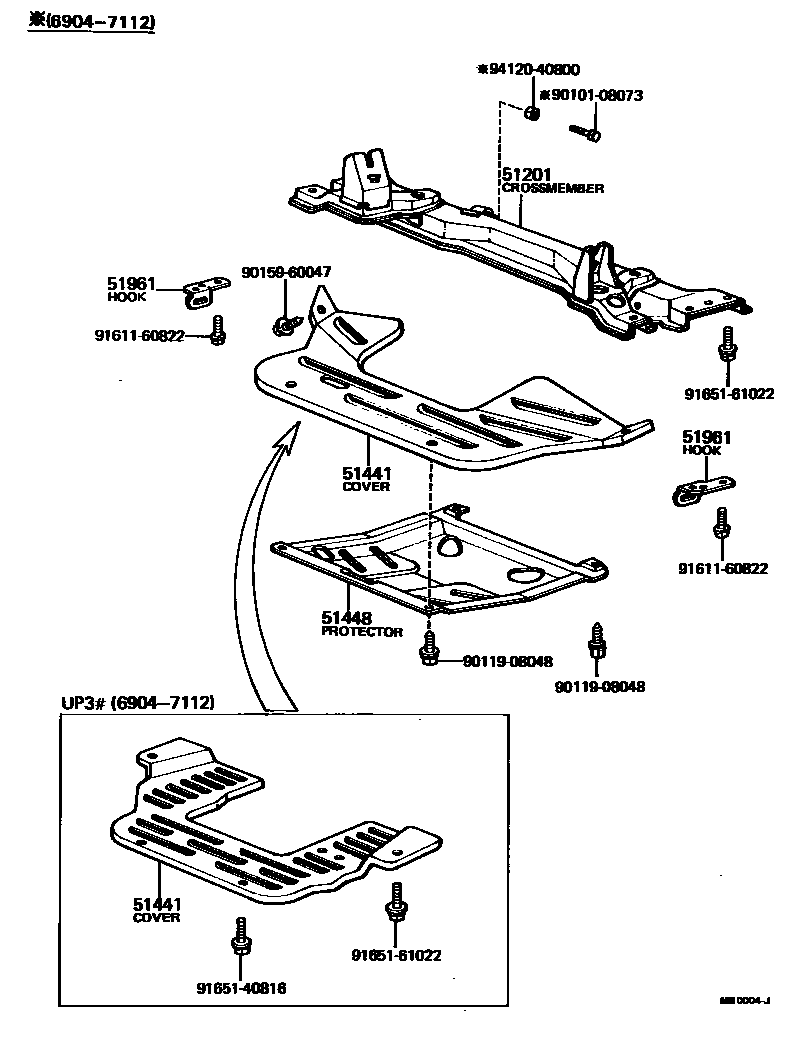

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-10020iKP3#196904-197112

main51201-10021iKP3#,50197201-198808

main51201-10030iUP3#196904-197112

51441COVER, ENGINE UNDER, NO.1

main51441-10030iKP3#,50196904-198201

main51441-10040iUP3#196904-197112

main51441-96400iKP39198201-198808

51448PROTECTOR, OIL PAN

main51440-10010iKP3#,50197801-198601

COLD SPEC

main51447-10010iKP3#,50196905-197801

COLD SPEC

51961HOOK, NO.1

main51963-10010iKP3#,50,UP3#196904-198808

RH

main51964-10010iKP3#,50,UP3#196904-198808

LH

9010108073

main90101-08073

9011908048

main90119-08048

9015960047

main90159-60047

9161160822

main91611-60822

9165140816

main91651-40816

9165161022

main91651-61022

9412040800

main94120-40800

11 parts on this diagram · 1 diagram in section
