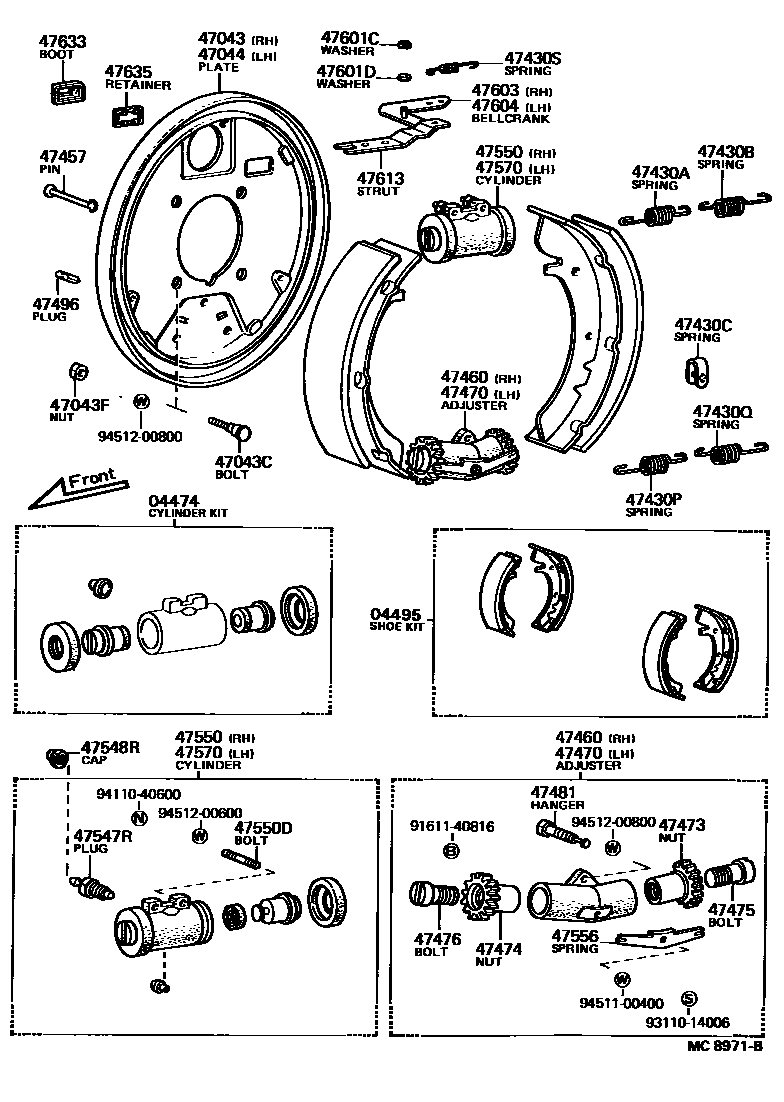

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0004 1

04474CYLINDER KIT, REAR WHEEL

main04474-10020iKP30,31,UP30196904-197310

main04474-11020iKP31,36,37..(SED,V)..(DLX,HDX,ST,STD,XL)196904-197310

04495SHOE KIT, REAR BRAKE

main04495-10010iKP3#,UP3#196904-197310

main04495-10030iKP3#..SED,V197310-197809

main04495-12010iKP36,37..PIC197004-197410

main04495-12060iKP36,37..PIC197410-198808

main04497-10010iKP3#..SED,V196904-197310

REBUILT

main04497-10030iKP3#..SED,V197310-197809

REBUILT

main04497-12010iKP36,37..PIC197004-197511

REBUILT

main04497-12040iKP3#197811-198808

REBUILT

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-10011iKP36..PIC196904-197310

main47043-12010iKP3#,50197310-198808

main47043-12020iKP36,37..PIC197004-197310

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-12010iKP36,37..PIC197004-197310

main42184-20010iKP36..PIC197006-197112

main42184-22020iKP3#,50197310-198808

main90114-08005iKP3#..SED,V196904-197310

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-08194iKP3#,UP3#196904-197310

main94181-11000iKP36,37..PIC197004-198808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-10011iKP36..PIC196904-197310

main47044-12010iKP3#,50197310-198808

main47044-12020iKP36,37..PIC197004-197310

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14049iKP3#..SED,V196904-197310

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14146iKP3#..SED,V196904-197310

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010iKP3#,50196904-198808

47430PSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20056iKP3#,UP3#196904-197310

47430QSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20057iKP3#,UP3#196904-197310

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-12129iKP3#,UP3#196904-197310

RH

main90506-12130iKP3#..SED,V196904-197310

LH

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010iKP3#,50196904-198808

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-12010iKP36,37..PIC197102-197310

main47061-12020iKP30,36,37,38,39,50197310-198808

main47405-19025iKP3#,UP3#..SED,V196904-197310

main47475-12902iKP36..PIC197004-197102

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-12010iKP36,37..PIC197102-197310

main47062-12020iKP30,36,37,38,39,50197310-198808

main47405-19025iKP3#,UP3#196904-197310

main47476-12902iKP36..PIC197004-197102

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-10010iKP3#,UP3#196904-197310

LH SCREW

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-10010iKP3#,UP3#..SED,V196904-197310

RH SCREW

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-10010iKP3#,UP3#196904-197310

LH SCREW

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-10010iKP3#,UP3#196904-197310

RH SCREW

47481HANGER, SHOE RETRACTING SPRING (FOR REAR BRAKE)

main47481-10011iKP3#,UP3#196904-197310

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iKP30,36,37,38,39,50197310-198808

main47491-20020iKP3#197205-197310

main47491-30020iKP3#,UP3#196904-197205

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iKP3#,UP3#196904-197310

main47547-20010iKP30,36,37,38,39,50197004-198808

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iUP3#196904-198808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19025iKP36,UP36..V196904-197310

main47550-19035iKP30,31,UP30196904-197310

main47550-19045iKP36..PIC197004-197112

main47550-19055iKP30,36,37197310-197605

ID=17.46

main47550-19065iKP3#,50..DLX,STD197702-198808

ID=19.05

main47550-19075iKP50;KP37..HDX197702-197809

ID=20.64

main47550-29105iKP36,37..PIC197201-197310

main47550-29105iKP3#..PIC,SED197310-197702

ID=19.05

main47550-29115iKP50197601-197702

ID=20.64

47550DBOLT, STUD(FOR REAR WHEEL BRAKE CYLINDER)

main90116-06035iKP3#..SED,V196904-197310

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-10030iKP3#,UP3#196904-197310

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19045iKP36..PIC197004-197112

main47550-19055iKP30,36,37197310-197605

ID=17.46

main47550-19065iKP3#,50..DLX,STD197702-198808

ID=19.05

main47550-19075iKP50;KP37..HDX197702-197809

ID=20.64

main47550-29105iKP3#..PIC,SED197310-197702

ID=19.05

main47550-29105iKP36,37..PIC197201-197310

main47550-29115iKP50;KP37..HDX197601-197702

ID=20.64

main47570-19015iKP30,31..DLX,HDX,S,SR,STD196904-197310

main47570-19025iKP31,36,37..(SED,V)..(DLX,HDX,ST,STD,XL)196904-197310

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-12011iKP36..PIC197004-198808

main47611-12020iKP36,37..PIC197009-197310

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iKP3#,50196904-198808

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-08016iKP3#,UP3#196904-197310

47603BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)

main47603-12011iKP3#,UP3#196904-197310

47604BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)

main47604-12011iKP3#,UP3#196904-197310

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-10012iKP3#,UP3#196904-197310

47633BOOT, PARKING BRAKE BELLCRANK

main47633-10010iKP3#,UP3#196904-197310

47635RETAINER, BELLCRANK BOOT(FOR REAR BRAKE)

main47635-10010iKP3#,UP3#196904-197310

9161140816

main91611-40816

9311014006

main93110-14006

9411040600

main94110-40600

9451100400

main94511-00400

9451200600

main94512-00600

9451200800

main94512-00800

41 parts on this diagram · 3 diagrams in section
