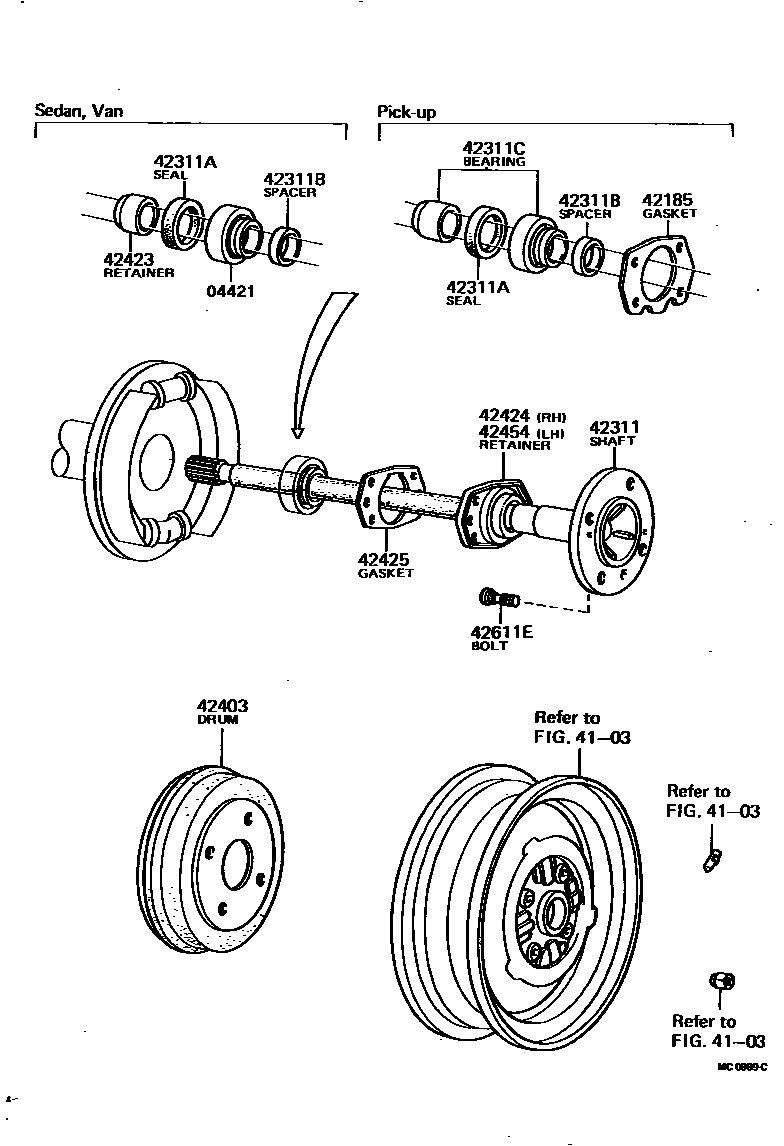

REAR AXLE SHAFT & HUB

0001 1 0002 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-12010×2iKP36,37..PIC196911-197310

main90363-25002×2iUP30196904-197112

main90363-25003×2iKP36,37..V196904-197310

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iKP3#,50197310-198808

T=0.3

main42185-20010×2iKP36,37..PIC197004-197310

T=0.3

main42185-22010×2iKP3#,50197310-198808

T=0.6

main42186-20010×2iKP36,37..PIC197004-197310

T=0.5

main42187-20010×2iKP36,37..PIC197004-197310

T=0.6

42311SHAFT, REAR AXLE

main42311-10020×2iKP3#,UP3#..SED,V196904-197010

main42311-10021×2iKP3#..SED,V197010-197310

main42311-10022×2iKP3#,50..SED,V197310-197809

main42311-12010×2iKP36..PIC196911-197004

main42311-12020×2iKP36,37,38,39..PIC197004-198808

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-35099×2iKP3#,UP3#..SED,V196904-197112

main90311-42055×2iKP3#,50197310-198808

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-25328×2iKP3#,UP3#..SED,V196904-197112

main90560-30152×2iKP36,37..PIC197201-197310

main90560-35153×2iKP36..PIC196911-197112

42311CBEARING(FOR REAR AXLE SHAFT)

42403DRUM SUB-ASSY, REAR BRAKE

main42431-10020×2iKP3#..SED,V196904-197310

main42431-12010×2iKP36..PIC196911-197012

main42431-12011×2iKP3#,50197310-198808

42423RETAINER, REAR AXLE BEARING, INNER

main42423-10020×2iKP3#..SED,V196904-197310

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-10020iKP30,UP30196904-197010

main42424-10021iKP30,31197010-197310

main42424-11020iKP36,UP36..V196904-197010

main42424-11021iUP36197010-197112

main42424-12010iKP36..PIC196911-197004

main42424-20010iKP3#,50197310-198808

42425GASKET, REAR AXLE BEARING RETAINER

main42425-12010×2iKP3#..SED,V196904-197310

main42425-20010×2iKP3#,50197310-198808

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-10020iKP30,UP30196904-197010

main42424-10021iKP30,31197201-197310

main42424-11020iKP36,UP36..V196904-197010

main42424-11021iKP36,UP36..V197010-197112

main42424-12010iKP36..PIC196911-197004

main42454-20010iKP36,37..PIC197004-197310

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021×8iUP3#196904-197112

*12-1.5PX38-24

main90942-02032×8iKP3#,50197410-197703

*12-1.5PX38-25.5

main90942-02035×8iKP3#,50197703-198306

*12-1.5PX36-23.5

main90942-02047×8iKP39198306-198808

13 parts on this diagram · 2 diagrams in section
