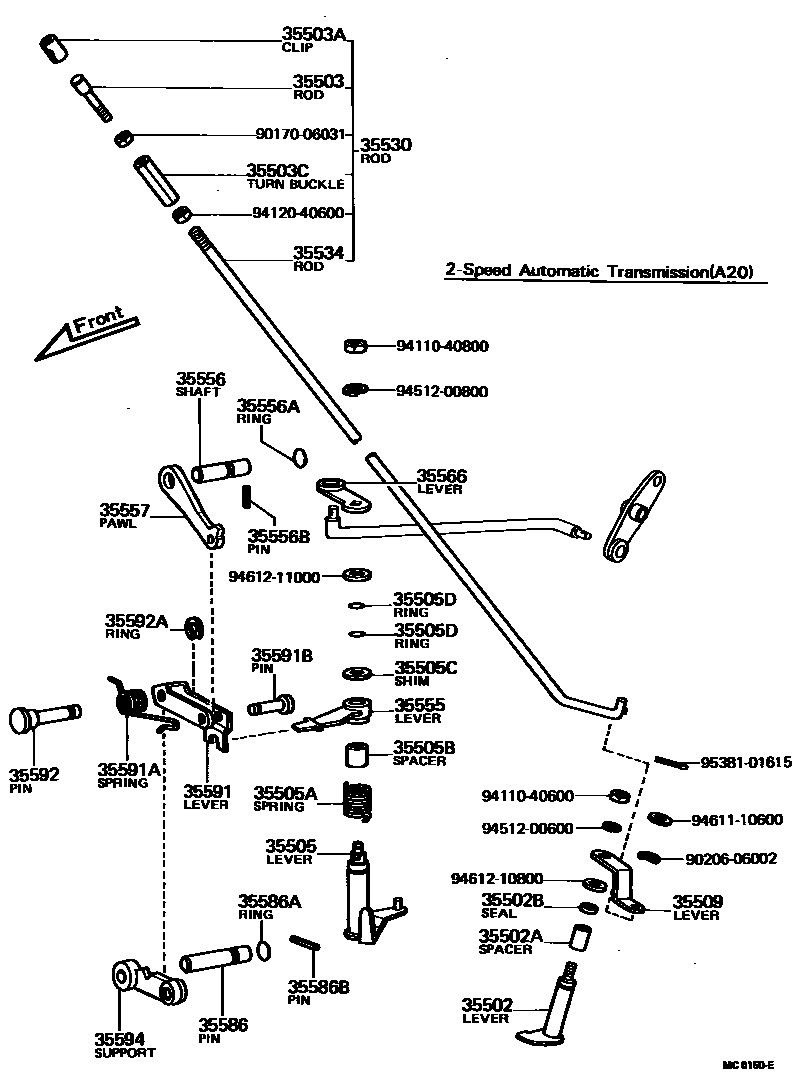

THROTTLE LINK & VALVE LEVER (ATM)
35502LEVER SUB-ASSY, THROTTLE VALVE
35502ASPACER (FOR THROTTLE VALVE LEVER)
35502BSEAL, TYPE K OIL (FOR THROTTLE VALVE LEVER)
35503ROD SUB-ASSY, THROTTLE LINK CONNECTING, 1ST
35503ACLIP(FOR THROTTLE LINK CONNECTING ROD)
35503CTURNBUCKLE(FOR THROTTLE LINK CONNECTING ROD)
35505LEVER SUB-ASSY, MANUAL VALVE
35505ASPRING, TORSION (FOR MANUAL VALVE LEVER)
35505BSPACER (FOR MANUAL VALVE LEVER)
35505CSHIM (FOR MANUAL VALVE LEVER)
T=0.5
35505DRING, O (FOR MANUAL VALVE LEVER)
35509LEVER SUB-ASSY, THROTTLE VALVE, OUTER
35530ROD ASSY, THROTTLE LINK
35534ROD, THROTTLE LINK CONNECTING, 1ST
35555LEVER, TOGGLE OPERATING
35556SHAFT, PARKING LOCK PAWL
35556ARING, O (FOR PARRING LOCK PAWL SHAFT)
35556BPIN, SLOTTED SPRING (FOR PARKING LOCK PAWL SHAFT)
35557PAWL, PARKING LOCK
35566LEVER, MANUAL VALVE CONTROL, OUTER
35586PIN, TOGGLE LEVER SUPPORT
35586ARING, O (FOR TOGGLE LEVER SUPPORT PIN)
35586BPIN, THROTTED SPRING (FOR TOGGLE LEVER SUPPORT PIN)
35591LEVER, TOGGLE
35591ASPRING, TORSION (FOR TOGGLE LEVER)
35591BPIN (FOR TOGGLE LEVER)
35592PIN, TOGGLE LEVER
35592ARING, E (FOR TOGGLE LEVER PIN STOPPER)
35594SUPPORT, TOGGLE LEVER
9017006031
main90170-06031
9020606002
main90206-06002
9411040600
main94110-40600
9411040800
main94110-40800
9412040600
main94120-40600
9451200600
main94512-00600
9451200800
main94512-00800
9461110600
main94611-10600
9461210800
main94612-10800
9461211000
main94612-11000
9538101615
main95381-01615
40 parts on this diagram · 2 diagrams in section
