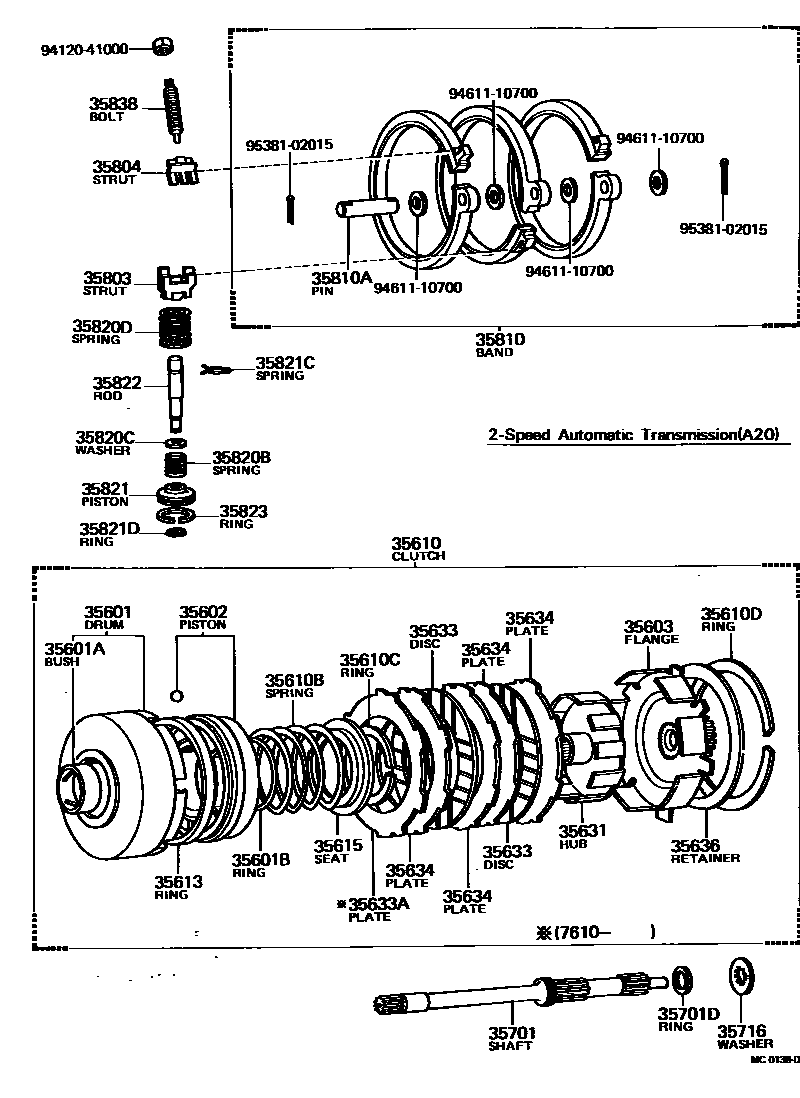

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601DRUM SUB-ASSY, CLUTCH
35601ABUSH, BIMETAL FORMED (FOR CLUTCH DRUM)
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35603FLANGE SUB-ASSY, CLUTCH, W/LOW SUN GEAR
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
T=1.6
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
T=1.85-1.95
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35615SEAT, CLUTCH PISTON RETURN SPRING
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
T=2.5
T=2.5
35633APLATE, FRONT CLUTCH CUSHION
35634PLATE, FRONT CLUTCH
T=1.50-1.65
35636RETAINER, CLUTCH FLANGE
35701SHAFT SUB-ASSY, INPUT
35701DRING (FOR INPUT SHAFT)
35716WASHER, LOW SUN GEAR THRUST, NO.1
T=2.0
T=2.6
35803STRUT SUB-ASSY, LOW BRAKE BAND APPLY
35804STRUT SUB-ASSY, LOW BRAKE BAND ANCHOR
35810BAND ASSY, TRANSMISSION BRAKE (FOR FRONT)
35810APIN, W/HOLE STRAIGHT (FOR BRAKE BAND)
35820BSPRING, COMPRESSION (FOR LOW SERVO PISTON INNER)
WD=2.6,CW=6.0
35820CWASHER, PLATE (FOR LOW SERVO PISTON RETURN SPRING)
35820DSPRING, COMPRESSION (FOR LOW SERVO PISTON RETURN)
35821CSPRING, LOW SERVO PISTON SPRING LOCK RETAINER
35821DRING, E (FOR LOW SERVO PISTON SPRING LOCK)
35822ROD, LOW SERVO PISTON
35838BOLT, BRAKE BAND ANCHOR
9412041000
main94120-41000
9461110700
main94611-10700
9538102015
main95381-02015
35 parts on this diagram · 1 diagram in section
