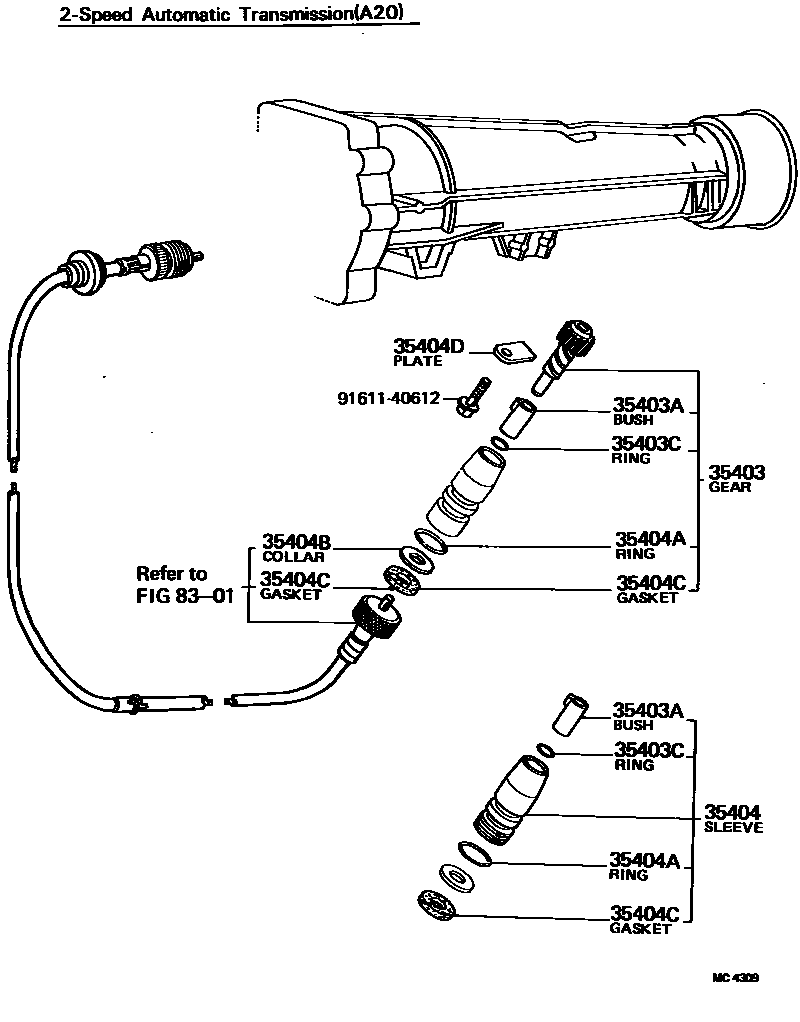

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19065iKP30,31..2FC196910-197511

main33403-19085iKP50..2FC197610-197802

N=22

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09055iKP30,31..2FC196910-197511

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iKP30,31..2FC196910-197511

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-19015iKP30,31..2FC196910-197511

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96710-02018iKP30,31..2FC196910-197511

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iKP30,31..2FC196910-197511

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iKP30,31..2FC196910-197511

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-10010iKP30,31..2FC196910-197511

8301METER

→ Go to FIG 83-01

9161140612

main91611-40612

10 parts on this diagram · 1 diagram in section
