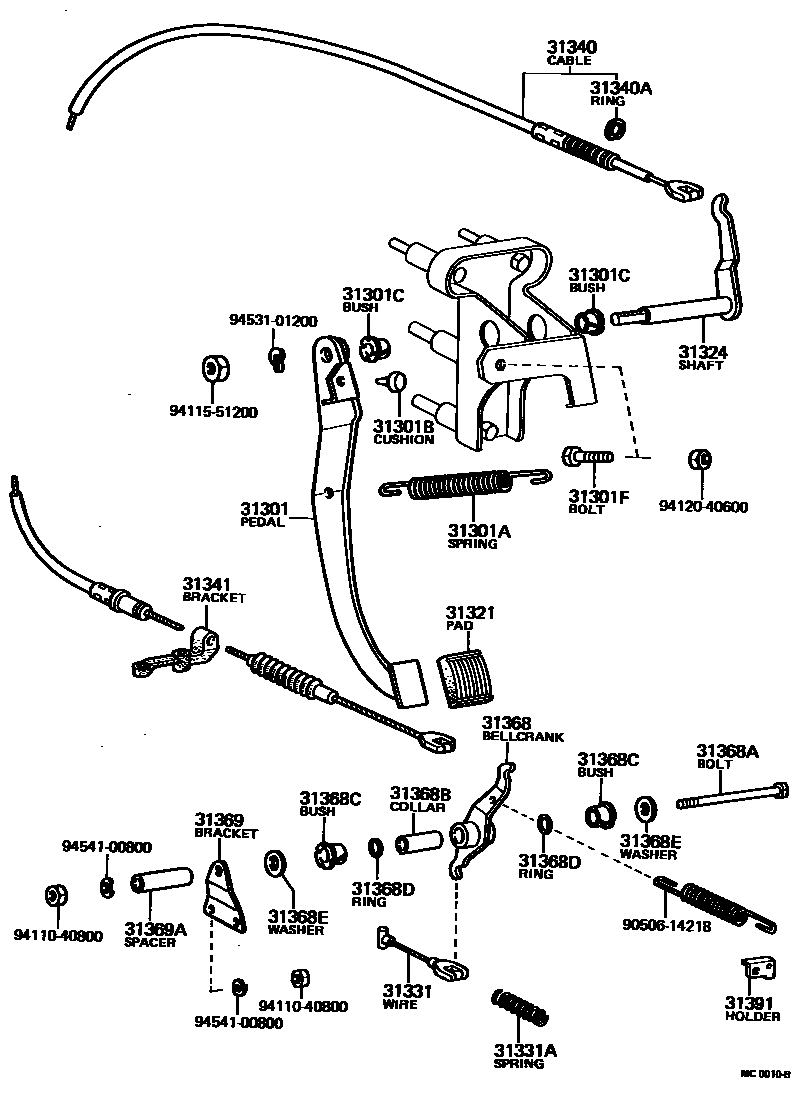

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-10030iKP3#,UP3#..4F196904-197112

main31301-10031iKP3#,50..MTM197201-198808

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12217iKP3#,UP3#..4F196904-197111

main90506-14393iKP3#,UP3#..4F197111-197112

main90506-16373iKP3#,50..MTM197201-198808

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main47131-10020iKP3#,50..MTM197201-198808

main90541-06008iKP3#,UP3#..4F196904-197112

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iKP3#,50..MTM196904-198808

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-06319iKP3#,UP3#..4F196904-197112

main90101-06400iKP3#,50..MTM197201-198808

31321PAD, CLUTCH PEDAL

main31321-10020iUP3#196904-197112

31324SHAFT, CLUTCH PEDAL

main31302-10010iKP3#,UP3#..4F196904-197112

main31302-10011iKP3#,50..MTM197201-198808

31331WIRE, CLUTCH RELEASE

main31331-10020iUP3#196904-197112

31331ASPRING, COMPRESSION(FOR CLUTCH RELEASE WIRE RETURN)

main90501-14469iUP3#196904-197112

31340CABLE ASSY, CLUTCH RELEASE

main31340-19065iKP3#..4F196904-197011

main31340-19066iKP3#..4F197011-197112

main31340-19067iKP3#,50..MTM197201-198808

main31340-19075iUP3#196904-197112

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iKP3#,50..MTM196904-198808

31341BRACKET, CLUTCH CABLE

main31341-10020iUP3#196904-197112

31368BELLCRANK, CLUTCH RELEASE

main31368-10010iUP3#196904-197112

31368ABOLT, HEXAGON(FOR CLUTCH RELEASE BELLCRANK SHAFT)

main90101-08229iUP3#196904-197112

31368BCOLLAR(FOR CLUTCH RELEASE BELLCRANK SHAFT)

main90387-08055iUP3#196904-197112

31368CBUSH(FOR CLUTCH RELEASE BELLCRANK)

main90386-13007×2iUP3#196904-197112

31368DRING, O(FOR CLUTCH RELEASE BELLCRANK)

main90301-17011×2iUP3#196904-197102

main96710-02018×2iUP3#197102-197112

31368EWASHER, PLATE OR RETAINER(FOR CLUTCH RELEASE BELLCRANK)

main90201-08322×2iUP3#196904-197112

31369BRACKET, CLUTCH RELEASE BELLCRANK

main31369-10010iUP3#196904-197112

31369ASPACER(FOR CLUTCH RELEASE BELLCRANK BRACKET)

main90560-08284iUP3#196904-197112

31391HOLDER, CLUTCH RETURN SPRING

main31391-10010iUP3#196904-197112

9050614218

main90506-14218

9411040800

main94110-40800

9411551200

main94115-51200

9412040600

main94120-40600

9453101200

main94531-01200

9454100800

main94541-00800

27 parts on this diagram · 2 diagrams in section
