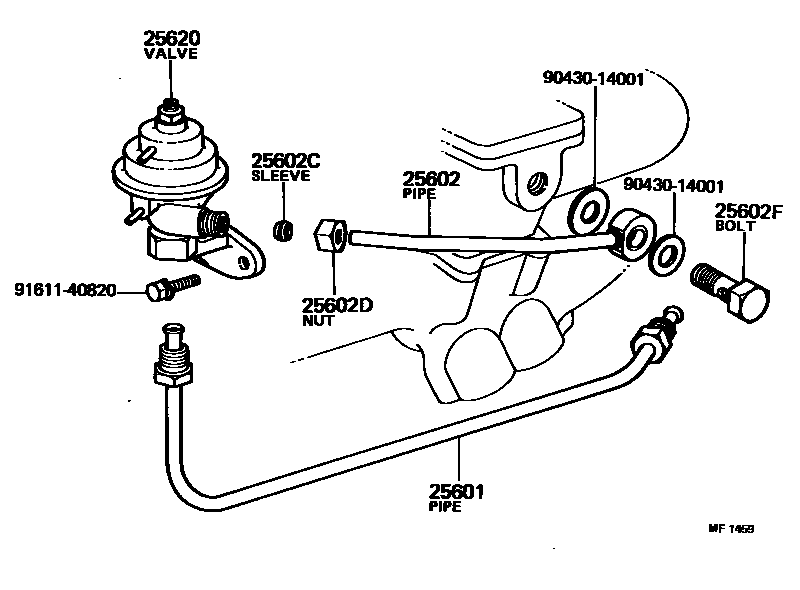

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-13010i4KJ..KP39198201-198808

main25601-24010i3KU..KP50197601-197802

25602PIPE SUB-ASSY, EGR, NO.2

main25602-24010i3KU..KP50197601-197802

25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)

main90410-10001i3KU..KP50197601-197802

25602DNUT, UNION(FOR EGR PIPE, NO.2)

main90402-18002i3KU..KP50197601-197802

25602FUNION(FOR EGR PIPE, NO.2)

main90401-14002i3KU..KP50197601-197802

25620VALVE ASSY, EGR

main25620-13190i4KJ..KP39198201-198808

main25620-24010i3KU..KP50..MTM197601-197802

main25620-24030i3KU..KP50..2FC197610-197802

9043014001

main90430-14001

9161140820

main91611-40820

8 parts on this diagram · 2 diagrams in section
