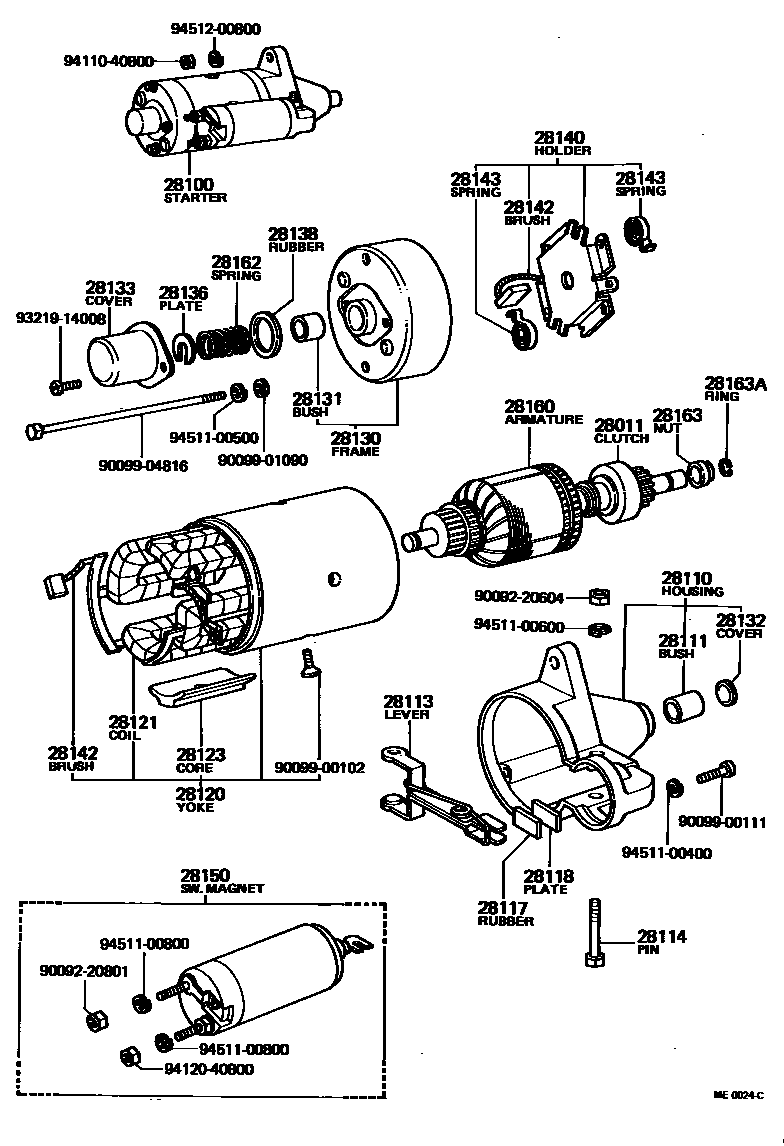

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1

28011CLUTCH SUB-ASSY, STARTER

main28011-13060i4KJ..KP39198608-198808

12V 0.6KW

main28011-22020iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

main28011-26042i4KJ..KP39198201-198808

12V 1.0KW

28100STARTER ASSY

main28100-10012i2UC..UP3#196904-196908

12V 0.6KW

sub28100-10013

main28100-10013i2UC..UP3#196908-197112

12V 0.6KW

main28100-12011i2K,3K..KP30,31..2FC196910-197112

12V 0.6KW

sub28100-12012

main28100-12012i2K..KP30..2FC197201-197404

12V 0.6KW

sub28100-12040

main28100-12020i2K,3K..KP30,31..2FC196910-197112

12V 0.8KW

sub28100-12021

main28100-12021i2K..KP30..2FC197201-197212

12V 0.8KW

sub28100-12040

main28100-12040i2K..KP30..2FC197212-197404

12V 0.8KW

main28100-13010i4KJ..KP39198201-198808

main28100-13060i4KJ..KP39198608-198705

sub28100-13061

main28100-13061i4KJ..KP39198705-198808

sub28100-13130

main28100-22011iKB,2K..KP3#196904-196908

12V 0.6KW

sub28100-22012

main28100-22012i2K,3K,3KB#..KP3#..4F196908-197404

12V 0.6KW

sub28100-12012

main28100-22021iKB,2K,3K,3KB#..KP3#..4F196904-197404

12V 0.8KW

main28100-24012i2K..KP30..2FC197404-197511

12V 0.6KW

sub28100-24110

main28100-24022i2K,3K,3KB#..KP3#197404-197511

12V 0.8KW

sub28100-24110

main28100-24030i2K,3K,3KB#..KP3#..4F197404-197511

12V 0.6KW

sub28100-24070

main28100-24031i3K#,4KJ..KP3#,50197511-198608

sub28100-13060

main28100-24060i3K#..KP3#,50197511-198201

12V 0.8KW

sub28100-13020

28110HOUSING ASSY, STARTER DRIVE

main28110-10013i2UC..UP3#196904-197112

12V 0.6KW

main28110-12010i2K,3K..KP30,31..2FC196910-197112

12V 0.6KW,0.8KW

sub28110-12011

main28110-12011i2K..KP30..2FC197201-197404

12V 0.6KW,0.8KW

main28110-13010i4KJ..KP39198201-198808

12V 1.0KW

main28110-13060i4KJ..KP39198608-198808

12V 0.6KW

main28110-22012iKB,2K,3K,3KB#..KP3#..4F196904-197404

12V 0.6KW,0.8KW

main28110-24010i2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50197404-198608

12V 0.6KW,0.8KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

main90099-10158i4KJ..KP39198608-198808

12V 0.6KW

28113LEVER, STARTER PINION DRIVE

main28113-13060i4KJ..KP39198608-198808

12V 0.6KW

main28113-41011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50197404-198608

12V 0.6KW,0.8KW

main28114-41011iKB,2K,3K,3KB#,2UC..KP3#,UP3#196904-197404

12V 0.6KW,0.8KW

28117RUBBER(FOR STARTER YOKE)

main28117-41012iKB,2K,3K,3KB#,2UC..KP3#,UP3#196904-197511

12V 0.6KW,0.8KW

main28117-41013i3K#,4KJ..KP3#,50197511-198608

12V 0.6KW,0.8KW

28118PLATE(FOR STARTER YOKE)

main28118-41012iKB,2K,3K,3KB#,2UC..KP3#,UP3#196904-197511

12V 0.6KW,0.8KW

sub28118-41013

main28118-41013i3K#,4KJ..KP3#,50197511-198608

12V 0.6KW,0.8KW

28120YOKE ASSY, STARTER

main28120-10013i2UC..UP3#196904-197112

12V 0.6KW

main28120-13060i4KJ..KP39198608-198808

12V 0.6KW

main28120-22011iKB,2K,3K,3KB#..KP3#196904-197511

12V 0.6KW

main28120-24020i3K#..KP3#,50197511-198201

12V 0.8KW

main28120-24030i3K#,4KJ..KP3#,50197511-198608

12V 0.6KW

main28120-26070i4KJ..KP39198201-198707

12V 1.0KW

sub28120-26071

main28120-26071i4KJ..KP39198707-198808

12V 1.0KW

main28120-89101iKB,2K,3K,3KB#..KP3#196904-197511

12V 0.8KW

sub28120-36040

28121COIL, STARTER FIELD

main28121-22011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW

sub28121-22012

main28121-36040i3K#..KP3#,50197511-198201

12V 0.8KW

main28121-40014iKB,2K,3K,3KB#..KP3#196904-197511

12V 0.8KW

sub28121-36040

28123CORE, STARTER POLE

main28123-10011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW

main28123-40012iKB,2K,3K,3KB#,3KHJ,3KU..KP3#,50196904-198201

12V 0.8KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4KJ..KP39198201-198808

12V 1.0KW

main28130-13060i4KJ..KP39198608-198808

12V 0.6KW

main28130-21011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW,STD

main90099-10039iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW,U/S 0.3

main90099-10040iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW,U/S 0.5

main90099-10157i4KJ..KP39198608-198808

12V 0.6KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41010iKB,2K,2UC..KP3#,UP3#196904-197004

12V 0.6KW,0.8KW

main28166-41011i2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#197004-198608

12V 0.6KW,0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-41011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28136PLATE, STARTER LOCK

main28136-41011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-41011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-22010iKB,2K,2UC..KP3#,UP3#196904-196908

12V 0.6KW

main28140-22011i2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196908-198608

12V 0.6KW

main28140-26070i4KJ..KP39198201-198808

12V 1.0KW

main28140-41012iKB,2K,3K,3KB#,3KHJ,3KU..KP3#,50196904-198201

12V 0.8KW

sub28140-41013

28142BRUSH, STARTER

main28142-10011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW

main28142-10020i4KJ..KP39198608-198808

12V 0.6KW

main28142-21010iKB,2K,3K,3KB#,3KHJ,3KU..KP3#,50196904-198201

12V 0.8KW

28143SPRING, STARTER BRUSH

main28143-10020i4KJ..KP39198608-198808

12V 0.6KW

main28143-40010iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

sub28143-40040

main90099-17112i4KJ..KP39198201-198808

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4KJ..KP39198608-198808

12V 0.6KW

sub28150-10021

main28150-12031i2K..KP30..2FC197212-197404

12V 0.8KW

sub28150-12030

main28150-13011i4KJ..KP39198201-198808

12V 1.0KW

main28150-22011i2K..KP30..2FC196904-197404

12V 0.6KW,0.8KW

main28150-22011i2K..KP30..2FC197212-197511

12V 0.6KW

main28150-24010i2K,3K,3KB#..KP3#197404-197511

12V 0.8KW

main28150-24010i2K..KP30..2FC197404-197511

12V 0.6KW

main28150-24060i3K#,4KJ..KP3#,50197511-198608

12V 0.6KW

sub28150-24061

main28150-24061i3K#..KP3#,50197511-198201

12V 0.8KW

main28150-41011i2UC..UP3#196904-197112

12V 0.6KW

sub28150-33020

28160ARMATURE ASSY, STARTER

main28160-10020i4KJ..KP39198608-198808

12V 0.6KW

main28160-12020i2K,3K..KP30,31..2FC196910-197212

12V 0.8KW

sub28160-22021

main28160-22010iKB,2K,2UC..KP3#,UP3#196904-196908

12V 0.6KW

sub28160-22011

main28160-22011i2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196908-198608

12V 0.6KW

main28160-22020iKB,2K..KP3#196904-196908

12V 0.8KW

sub28160-22021

main28160-22021i2K,3K,3KB#,3KHJ,3KU..KP3#,50196908-198201

12V 0.8KW

main28160-26070i4KJ..KP39198201-198808

12V 1.0KW

sub28160-26071

28162SPRING, STARTER BRAKE

main28162-41011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10020i4KJ..KP39198608-198808

12V 0.6KW

sub28163-10021

main28163-40011iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047iKB,2K,3K,3KB#,3KHJ,3KU,4KJ,2UC..KP3#,50,UP3#196904-198608

12V 0.6KW,0.8KW

main90099-07124i4KJ..KP39198608-198808

12V 0.6KW

9009220604

main90092-20604

9009220801

main90092-20801

9009900102

main90099-00102

9009900111

main90099-00111

9009901090

main90099-01090

9009904816

main90099-04816

9321914008

main93219-14008

9411040800

main94110-40800

9412040800

main94120-40800

9451100400

main94511-00400

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

9451200800

main94512-00800

39 parts on this diagram · 5 diagrams in section
