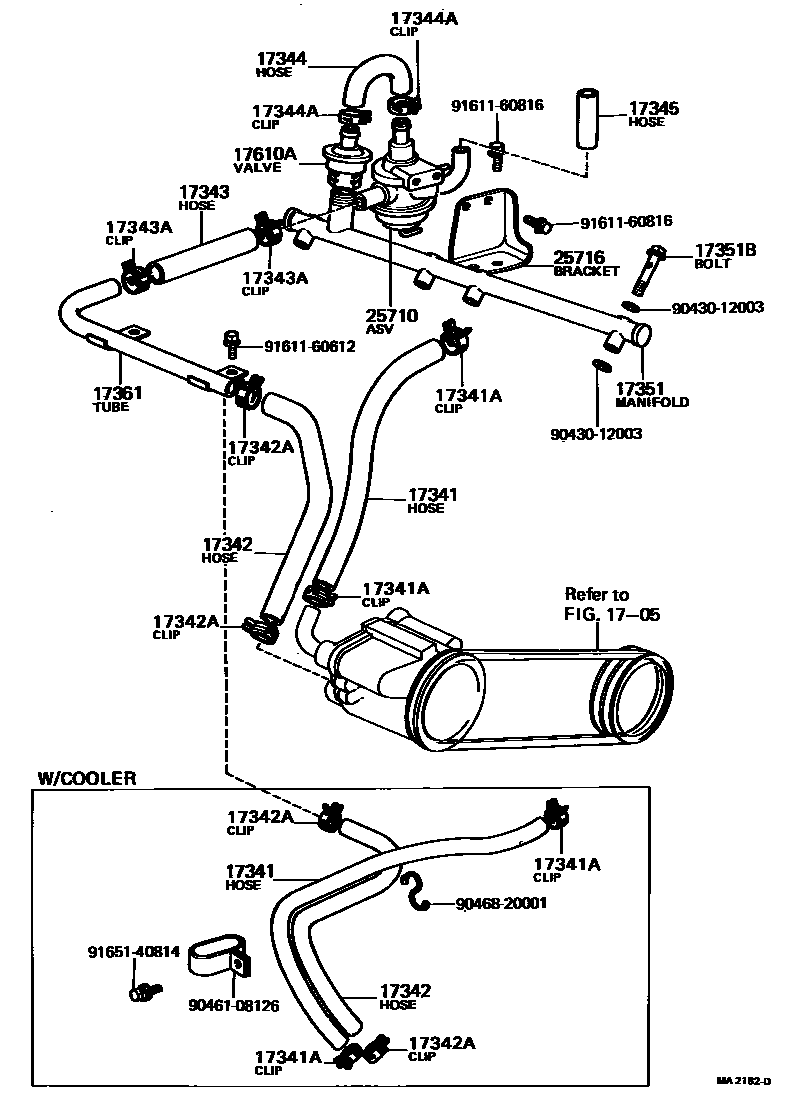

MANIFOLD AIR INJECTION SYSTEM

1705AIR PUMP

→ Go to FIG 17-05

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main90445-31005i3KU..KP50197601-197802

W/COOLER

main90445-31011i3KU..KP50197601-197802

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26001×2i3KU..KP50197601-197802

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-24010i3KU..KP50197601-197802

main90445-31003i3KU..KP50197601-197802

W/COOLER

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-26001×2i3KU..KP50197601-197802

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main90445-31006i3KU..KP50197601-197802

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-26001×2i3KU..KP50197601-197802

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main90910-05113i3KU..KP50197601-197802

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-23001×2i3KU..KP50197601-197802

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main90445-27008i3KU..KP50197601-197802

17351MANIFOLD, AIR INJECTION

main17351-24020i3KU..KP50197601-197802

17351BBOLT, UNION

main90401-12001×4i3KU..KP50197601-197802

17361TUBE, AIR

main17361-24010i3KU..KP50197601-197802

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10045i3KU..KP50197601-197802

25710VALVE ASSY, AIR SWITCHING

main25710-24011i3KU..KP50197601-197802

25716BRACKET, AIR SWITCHING VALVE

main25716-24011i3KU..KP50197601-197802

9043012003

main90430-12003

9046108126

main90461-08126

9046820001

main90468-20001

9161160612

main91611-60612

9161160816

main91611-60816

9165140814

main91651-40814

22 parts on this diagram · 1 diagram in section
