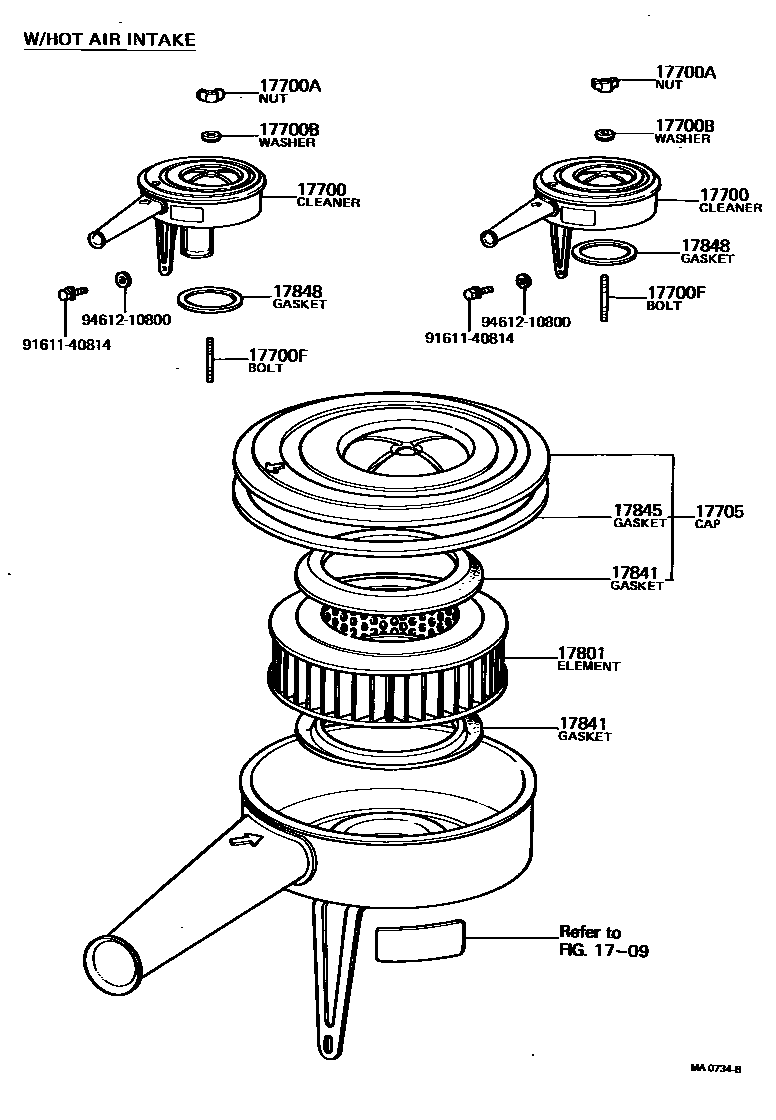

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1709

17700CLEANER ASSY, AIR

main17700-11121i2UC..UP3#196904-197004

main17700-11122i2UC..UP3#197004-197102

main17700-11123i2UC..UP3#197102-197112

main17700-12011i2K..KP3#196904-197004

main17700-13350i4KJ..KP39198201-198808

main17700-22060iKB..KP30196904-197004

main17700-24020i2K,3K..KP3#197004-197012

main17700-24021i2K,3K..KP3#197012-197208

sub17700-24022

main17700-24040i3KB#..KP31197004-197112

main17700-24041i3KB#..KP31197201-197208

sub17700-24052

main17700-24090i2K..KP30,36197004-197012

HOT AIR INTAKE

main17700-24091i2K,3K..KP3#197012-197208

HOT AIR INTAKE

main17700-24092i2K,3K..KP3#197208-197304

HOT AIR INTAKE

sub17700-24330

main17700-24100i2K..KP3#197001-197004

HOT AIR INTAKE

main17700-24120i3KB#..KP31197101-197112

HOT AIR INTAKE

main17700-24121i3KB#..KP31197201-197208

HOT AIR INTAKE

sub17700-24122

main17700-24210i3KB#..KP31197208-197304

HOT AIR INTAKE

sub17700-24153

main17700-24230i2K,3K..KP3#197304-197404

HOT AIR INTAKE

main17700-24250i3KB#..KP31197304-197404

HOT AIR INTAKE

main17700-24280i2K,3K..KP3#197404-197511

HOT AIR INTAKE

main17700-24283i3KU..KP50197601-197802

main17700-24290i3KB#..KP31197404-197511

HOT AIR INTAKE

main17700-24422i3KHJ..KP37197511-197805

main17700-24423i3KHJ..KP3#197805-198201

main17700-24480i3KU..KP50197701-197711

HOT AIR INTAKE

main17700-24481i3KU..KP50197711-197802

HOT AIR INTAKE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003×2i4KJ..KP39198201-198808

main94270-00600×2i2UC..UP3#196904-197305

main94271-00600×2i2K,3K,3KB#,3KHJ,3KU..KP3#,50197305-198201

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06001×2i2K,3K,3KB#..KP3#197101-197404

main90210-06023×2i2K,3K,3KB#,3KHJ,3KU..KP3#,50197404-198201

main94711-90600×2iKB,2K,3K..KP3#196904-197101

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06099×2iKB..KP30196904-197005

L=95,S=12&28

main90116-06131×2i2K,3K,3KHJ,3KU..KP3#,50196904-198201

L=102,S=12&30

main90116-06142×2i4KJ..KP39198201-198808

main90116-06159i2UC..UP3#196904-197112

L=132,S=12&29

main90116-06222×2i3KB#..KP31197005-197511

L=80,S=12&28

17705CAP SUB-ASSY, AIR CLEANER

main17705-11121i2UC..UP3#196904-197112

main17705-12010i2K..KP3#196904-197004

main17705-13011i4KJ..KP39198201-198808

main17705-22050iKB..KP30196904-197004

main17705-24021i2K,3K..KP3#197004-197304

main17705-24030i3KB#..KP31197004-197112

main17705-24031i3KB#..KP31197201-197304

main17705-24110i2K,3K..KP3#197304-197404

main17705-24120i3KB#..KP31197304-197404

main17705-24140i2K,3K..KP3#197404-197511

main17705-24142i3KU..KP50197601-197802

main17705-24150i3KB#..KP31197404-197511

main17705-24240i3KHJ..KP37197511-197805

main17705-24260i3KU..KP50197701-197802

HOT AIR INTAKE

main17705-24280i3KHJ..KP3#197805-197908

main17705-24281i3KHJ..KP38197908-198201

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13010i4KJ..KP39198201-198808

main17801-24010i2K,3K,3KHJ,3KU..KP3#,50196904-198201

main17801-24020×2i3KB#..KP31197004-197511

main17801-35010iKB..KP30196904-197004

17841GASKET, FILTER ELEMENT

main17841-24011×4i3KB#..KP31197004-197511

main17841-24020×2i2K,3K,3KHJ,3KU..KP3#,50197004-198201

sub17841-68010

main17841-35010×2iKB..KP30196904-197004

main17841-60011×2i2UC..UP3#196904-197004

sub17841-68010

17845GASKET, AIR CLEANER CAP

main17845-11010i2UC..UP3#196904-197112

main17845-12010i2K..KP3#196904-197004

main17845-24010i2K,3K,3KHJ,3KU..KP3#,50197004-198201

main17845-24020i3KB#..KP31197004-197404

main17845-24040i3KB#..KP31197404-197511

main17845-42010iKB..KP30196904-197004

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-13010×2i4KJ..KP39198201-198808

main17848-24010i3KU..KP50197601-197802

main90430-63187×2i2K,3K,3KB#,3KHJ..KP3#197208-198201

main90430-64139×2i2UC..UP3#196904-197208

9161140814

main91611-40814

9461210800

main94612-10800

12 parts on this diagram · 8 diagrams in section
