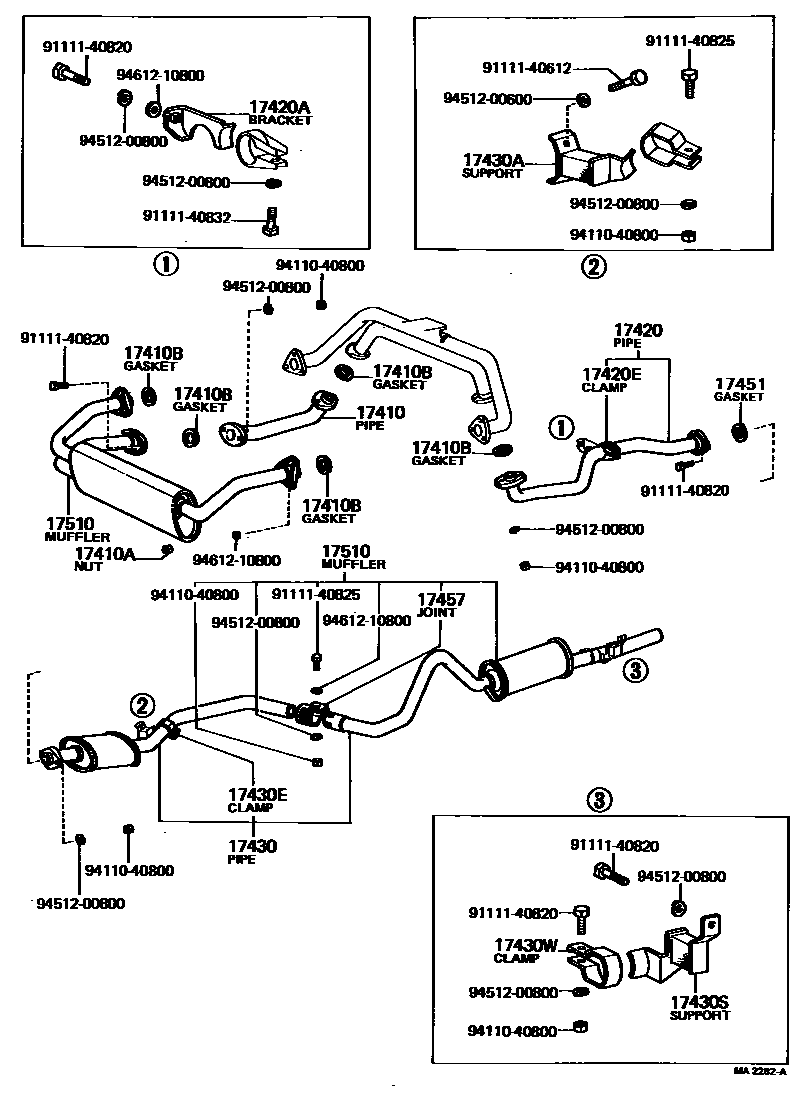

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-11021i2UC..UP3#196904-197112

main17401-24041i3KU..KP50197601-197802

main17410-12012i2K,3K..KP3#197201-197404

main17410-12013i2K..KP30,36197410-197511

main17410-12020i2K..KP3#196904-196905

main17410-12021i2K,3K..KP3#196905-197112

main17410-13230i4KJ..KP39198201-198808

main17410-22041iKB,3KB#..KP30,31196904-197404

main17410-22042i3K,3KB#..KP31,37197404-197410

main17410-22043i3K,3KB#..KP31,37197410-197511

main17410-24120i3KHJ..KP3#197511-198201

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-08047×6i2UC..UP3#196904-197112

main90170-10199×3i3KU..KP50197601-197605

main90179-10010×3i3K#..KP3#,50197605-198201

main90179-10070×3i4KJ..KP39198406-198808

main90179-10118×3i3KHJ..KP37197511-197605

17410BGASKET, EXHAUST PIPE

main17451-22010iKB,3KB#..KP30,31196904-197404

main90917-06006i2K,3K,2UC..KP3#,UP3#196904-197404

main90917-06012i3KU..KP50197601-197802

17420PIPE ASSY, EXHAUST, CENTER

main17403-11041i2UC..UP3#196904-197112

FR

main17456-11010i2UC..UP30196904-197112

RR

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17561-11030i2UC..UP3#196904-197112

17420ECLAMP NO.2, EXHAUST PIPE CENTER, FRONT

main90461-23333i2UC..UP3#196904-197112

17430PIPE ASSY, EXHAUST, TAIL

main17410-11081i2UC..UP30196904-197112

main17410-11091i2UC..UP36196904-197112

main17430-12015i2K,3K,3KB#..KP30,31197410-197511

main17430-12024i2K,3K..KP36,37..V197410-197511

main17430-12030iKB,2K..KP30196904-197010

main17430-12031i2K,3K,3KB#..KP30,31197010-197112

main17430-12032i2K,3K,3KB#..KP30,31197201-197310

main17430-12033i2K,3K,3KB#..KP30,31197310-197410

main17430-12040i2K,3K..KP36,37..V196904-197310

main17430-12041i2K,3K..KP36,37..V197310-197404

main17430-12042i2K,3K..KP36,37..V197404-197410

main17430-12052i2K,3K..KP36,37..PIC197410-197511

main17430-12060i2K..KP36..PIC196911-197004

main17430-12061i2K,3K..KP36,37..PIC197004-197410

main17430-24182i3KU..KP50197601-197802

main17430-24210i3KHJ..KP37..V197511-197809

main17430-24220i3KHJ,4KJ..KP3#..PIC197511-198808

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-24040i3KU..KP50197601-197802

main17562-11020i2UC..UP30196904-197112

main17562-12010iKB,2K,3K,3KB#..KP30,31196904-197310

main17562-12020i2K,3K,2UC..KP36,37,UP36..V196904-197310

main17562-12021i2K,3K..KP36,37..V197310-197404

main17562-12022i2K,3K,3KHJ..KP36,37..V197404-197809

main17562-12030i2K,3K,3KHJ,4KJ..KP36,37,38,39..PIC196911-198808

main17562-12040i2K,3K,3KB#..KP30,31197310-197511

17430ECLAMP NO.2, EXHAUST TAILPIPE(FOR FRONT)

main90461-23330i2UC..UP30197103-197112

main90461-23406i2UC..UP30196904-197102

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17507-24040i3KU..KP50197601-197802

main17563-12010i3K,3KB#,2UC..KP31,UP30196904-197112

main17563-12011i2K,3K,3KB#..KP30,31197201-197511

main17563-12020i2K,3K,3KHJ,2UC..KP36,37,UP36..V196904-197809

main17563-12031i2K,3K,3KHJ,4KJ..KP36,37,38,39..PIC196911-198808

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-23110i2UC..UP36197010-197112

main90461-23276iKB,2K,3K,3KB#,3KHJ,4KJ..KP3#..PIC,SED196904-198808

main90461-23643i2K..KP36..V197010-197112

17451GASKET, EXHAUST PIPE

main90917-06001i3K,3KB#..KP31197005-197108

main90917-06004i3KU..KP50197601-197802

RR

main90917-06006i2K,3K,3KB#,3KHJ,4KJ..KP3#197108-198808

main90917-06012i3KU..KP50197601-197604

FR

main90917-06018i3KU..KP50197604-197802

FR

17457JOINT, EXHAUST PIPE

main17457-22010iKB,2K,3K,3KB#..KP3#..PIC,SED196904-197511

17510MUFFLER ASSY

main17530-11030i2UC..UP30196904-197112

ENGINE FR

main17540-11040i2UC..UP30196904-197112

RR

main17540-12010iKB,2K,3K,3KB#..KP30,31196904-197112

main17540-12011i2K,3K,3KB#..KP30,31,37197201-197511

main17540-12020i2K..KP36..PIC196911-197004

main17540-12021i2K..KP36..PIC197004-197511

9111140612

main91111-40612

9111140820

main91111-40820

9111140825

main91111-40825

9111140832

main91111-40832

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

9461210800

main94612-10800

22 parts on this diagram · 8 diagrams in section
