Toyota 651150 — MANIFOLD

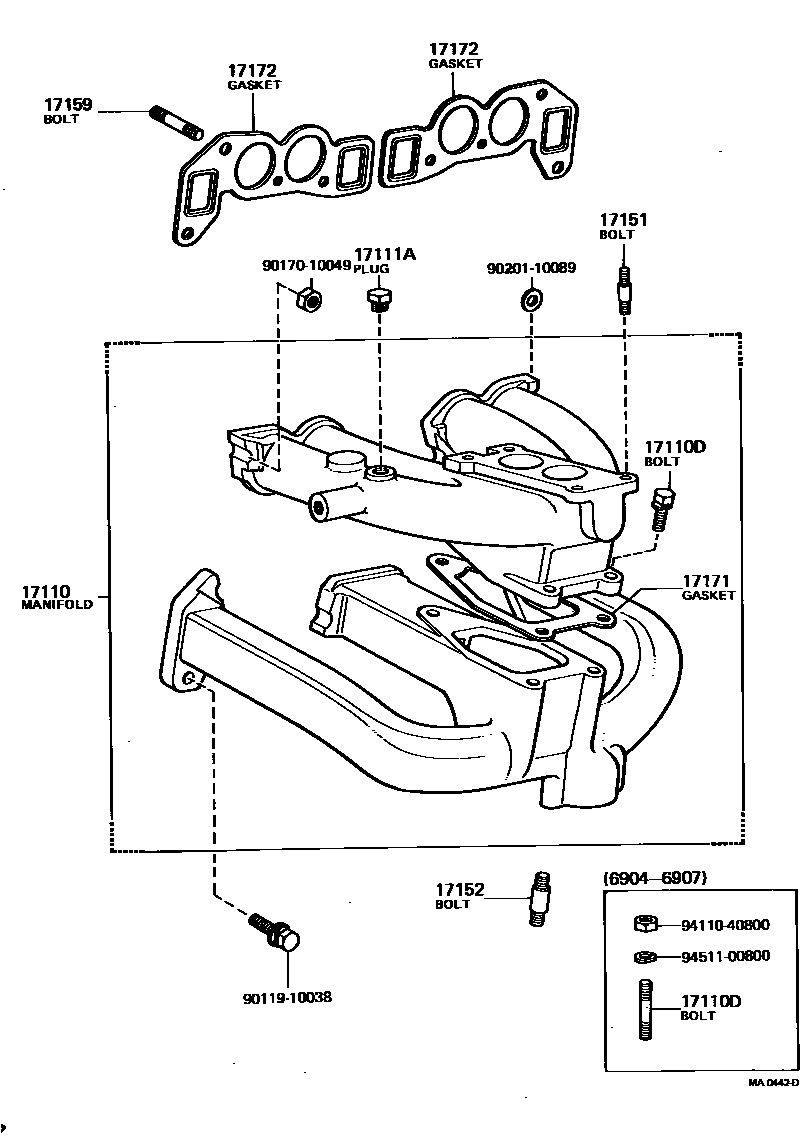

Parts diagram

17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)

17111APLUG, NO.1

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17171GASKET, INTAKE TO EXHAUST MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

9011910038

9017010049

9020110089

9411040800

9451100800

13 parts on this diagram · 6 diagrams in section

MANIFOLD for Toyota 651150

This section contains 27 genuine Toyota parts for the MANIFOLD system of the Toyota 651150. Key components include: AIR CLEANER, MANIFOLD ASSY, UNION, VACUUM HOSE, UNION(FOR VENTILATION HOSE TO MANIFOLD), BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD).
