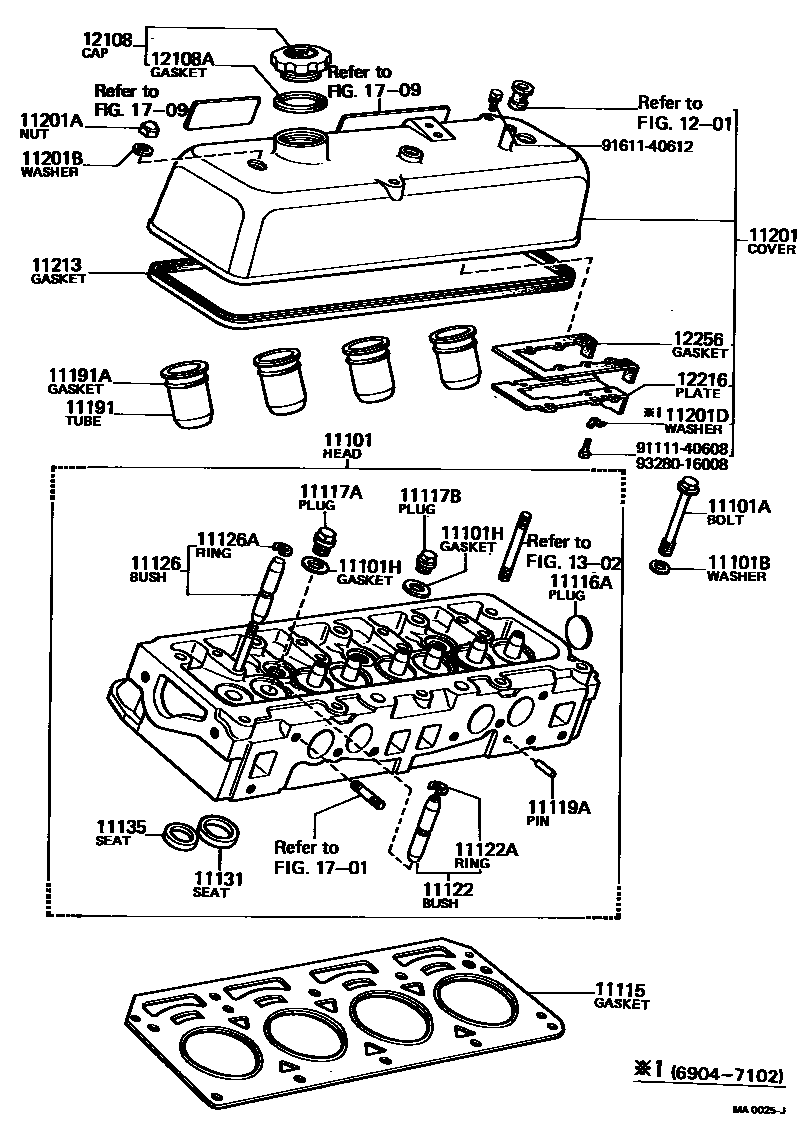

11101HEAD SUB-ASSY, CYLINDER

main11101-11020i196904-197112

RH

main11101-13011i198205-198808

main11101-19016i196904-197112

main11101-19017i197201-197404

main11101-19018i197404-197410

main11101-19035i197410-197511

main11101-19045i198201-198205

main11101-29035i196904-196908

main11101-29045i197010-197112

main11101-29046i197201-197404

main11101-29055i196909-197112

main11101-29056i197201-197404

main11101-29115i197103-197112

main11101-29116i197201-197404

main11101-29145i197404-197410

main11101-29146i197410-197511

main11101-29147i197511-198201

main11101-29155i197404-197410

main11101-29156i197410-197501

main11101-29165i197404-197410

main11101-29166i197410-197511

main11101-29255i197601-197802

main11102-11020i196904-197112

LH

11101ABOLT(FOR CYLINDER HEAD SET)

main90116-10108×4i196904-197102

L=212,S=26&26

main90116-10116×4i196904-197112

L=189,S=26&26

main90910-02020×10i196904-198106

*10-1.25PX100-20

main90910-02069×10i198106-198805

main90910-02074i198805-198808

HEAD FR RIGHT

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10005×10i197707-198808

main90201-10092×8i196904-197112

main90201-10246×10i196904-197102

main90201-10344×10i196904-197103

11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-15151×2i196904-198808

OD=21,ID=15

main90430-18152×3i196904-198808

OD=25,ID=18

11115GASKET, CYLINDER HEAD

main11115-12010i196904-197207

main11115-12011i197207-197404

main11115-12013i197404-197511

main11115-13010i197708-198106

main11115-13030i198106-198110

main11115-13031i198110-198808

main11115-22020i196904-196908

main11115-24011i196909-197404

main11115-24013i197404-197708

11116APLUG, TIGHT, NO.1

main90330-40035i196904-197404

OD=40

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-18029×3i196904-196911

L=11,S=9,OD=16

main90341-18063×3i196904-196911

L=11,OD=18,P=1.5

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-15030×2i196904-196908

L=11,S=9,OD=13

main90341-15045×2i196904-198808

L=11,15-1.5P

11119APIN, STRAIGHT, NO.1

main90250-08120×2i196904-198808

11122BUSH, INTAKE VALVE GUIDE

main11122-10030×2i196904-197112

STD

main11122-22020×4i196904-197410

main11122-24020×4i197410-198808

main11123-10030×2i196904-197112

O/S 0.10

main11123-22020×4i196904-197410

main11123-24020×4i197410-198808

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049×4i196904-198808

11126BUSH, EXHAUST VALVE GUIDE

main11122-24020×4i198205-198808

main11123-24020×4i198205-198808

main11126-10030×2i196904-197112

STD

main11126-22020×4i196904-197410

main11126-24020×4i197410-198205

STD

main11127-10030×2i196904-197112

O/S 0.10

main11127-22020×4i196904-197410

main11127-24020×4i197410-198205

O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049×4i196904-198808

11131SEAT, INTAKE VALVE

main11131-10011×2i196904-197112

STD

main11131-22010×4i196904-197511

STD

main11131-24010×4i196909-198808

main11132-10010×2i196904-197112

O/S 0.03

main11132-22010×4i196904-197511

O/S 0.03

main11132-24010×4i196909-198808

11135SEAT, EXHAUST VALVE

main11135-13010×4i197707-198808

main11135-22012×4i197111-197511

STD

main11135-24012×4i197111-197707

STD

main11136-13010×4i197707-198808

main11136-22010×4i197111-197511

O/S 0.03

main11136-24010×4i197111-197707

O/S 0.03

11191TUBE, SPARK PLUG

main11191-22010×4i196904-198808

11191AGASKET(FOR SPARK PLUG TUBE)

main90430-31141×4i196904-198808

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-13021i198712-198808

main11201-19015i197710-197809

main11201-19025i197809-197903

main11201-19026i197903-198712

main11201-22010i197108-197112

W/O PCV

main11201-22030i196904-197112

W/O PCV

main11201-24010i197004-197208

W/PCV

main11201-24011i197208-197404

W/PCV

main11201-24020i197004-197208

W/PCV

main11201-24021i197208-197404

W/PCV

main11201-29105i197404-197408

W/PCV

main11201-29106i197408-197504

W/PCV

main11201-29107i197504-197511

W/PCV

main11201-29108i197511-197710

main11201-29115i197404-197408

W/PCV

main11201-29116i197408-197504

W/PCV

main11201-29117i197504-197511

W/PCV

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main94171-10800×2i196904-198808

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08017×2i196904-197903

main90210-09007×2i197903-198808

11201DWASHER, LOCK(FOR CYLINDER HEAD COVER)

main90215-06014×6i196904-197102

11213GASKET, CYLINDER HEAD COVER

main11213-22010i196904-198808

1201VENTILATION HOSE

→ Go to FIG 12-01

12108CAP SUB-ASSY, OIL FILLER

main12180-11010i196904-197112

main12180-13010i197908-198303

main12180-13030i198508-198808

main12180-70010i198303-198508

main12181-12902i196904-197007

main12181-12903i197007-197408

main12181-12904i197809-197908

main12181-31020i197408-197809

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i197809-198808

main90430-57127i196904-197112

12216PLATE, VENTILATION BAFFLE

main12216-22010i196904-198808

12256GASKET, VENTILATION BAFFLE

main12256-22010i196904-198808

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1701MANIFOLD

→ Go to FIG 17-01

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9111140608

main91111-40608

9161140612

main91611-40612

9328016008

main93280-16008
