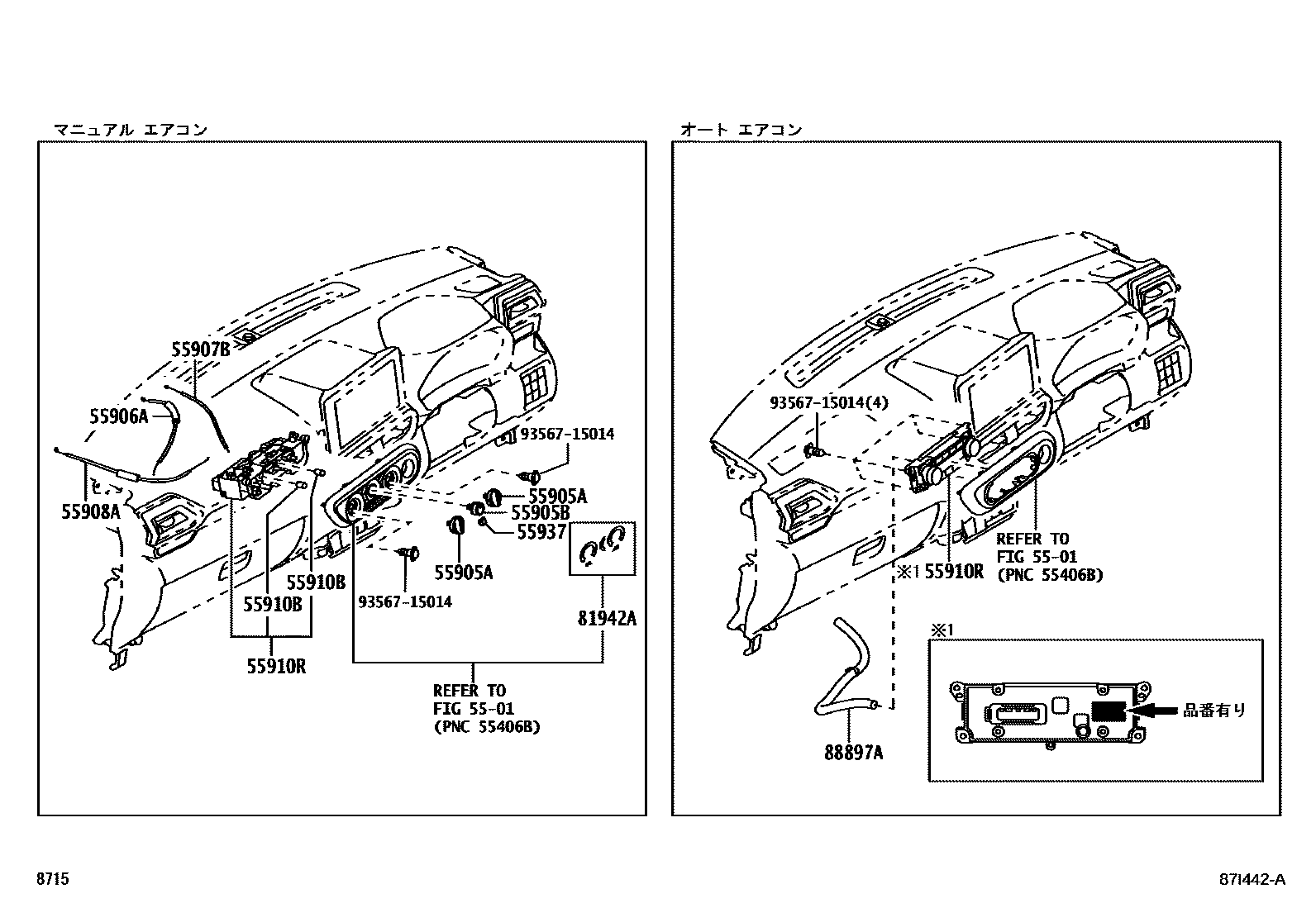

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ ���� 0002 1�� ���� 0003 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55905AKNOB, HEATER CONTROL

main55804-B1010×2iA201,210..X202111-202912

55905BKNOB, HEATER CONTROL, NO.2

main55905-B1140iA200,210..X201910-202111

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-B1090iA201,210..X202111-202912

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B1090iA200,210..X201910-202111

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B1090iA200,210..X201910-202111

55910BBULB, HEATER CONTROL

main81936-B1030×2iA200,210..X201910-202111

main81936-B1040×2iA201,210..X202305-202912

55910RCONTROL ASSY, HEATER

main55910-B1180iA201..G,Z202111-202912

main55910-B1200iA200,210..X201910-202111

main55910-B1230iA202202111-202211

main55910-B1231iA202202211-202912

main55910-B1250iA201..G; A201..Z; A210..G,Z202111-202912

main55910-B1240iA202..G; A202..Z202111-202211

main55910-B1241iA202..G; A202..Z202211-202912

55937KNOB, HEATER CONTROL LEVER

main55925-B1010iA200,210..X201910-202111

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-B1010iA200,210..X201910-202111

88897APIPE, ASPIRATOR

main88505-B1030iA200,210..G,Z201910-202111

9356715014

main93567-15014

12 parts on this diagram · 3 diagrams in section
