INVERTER COOLING

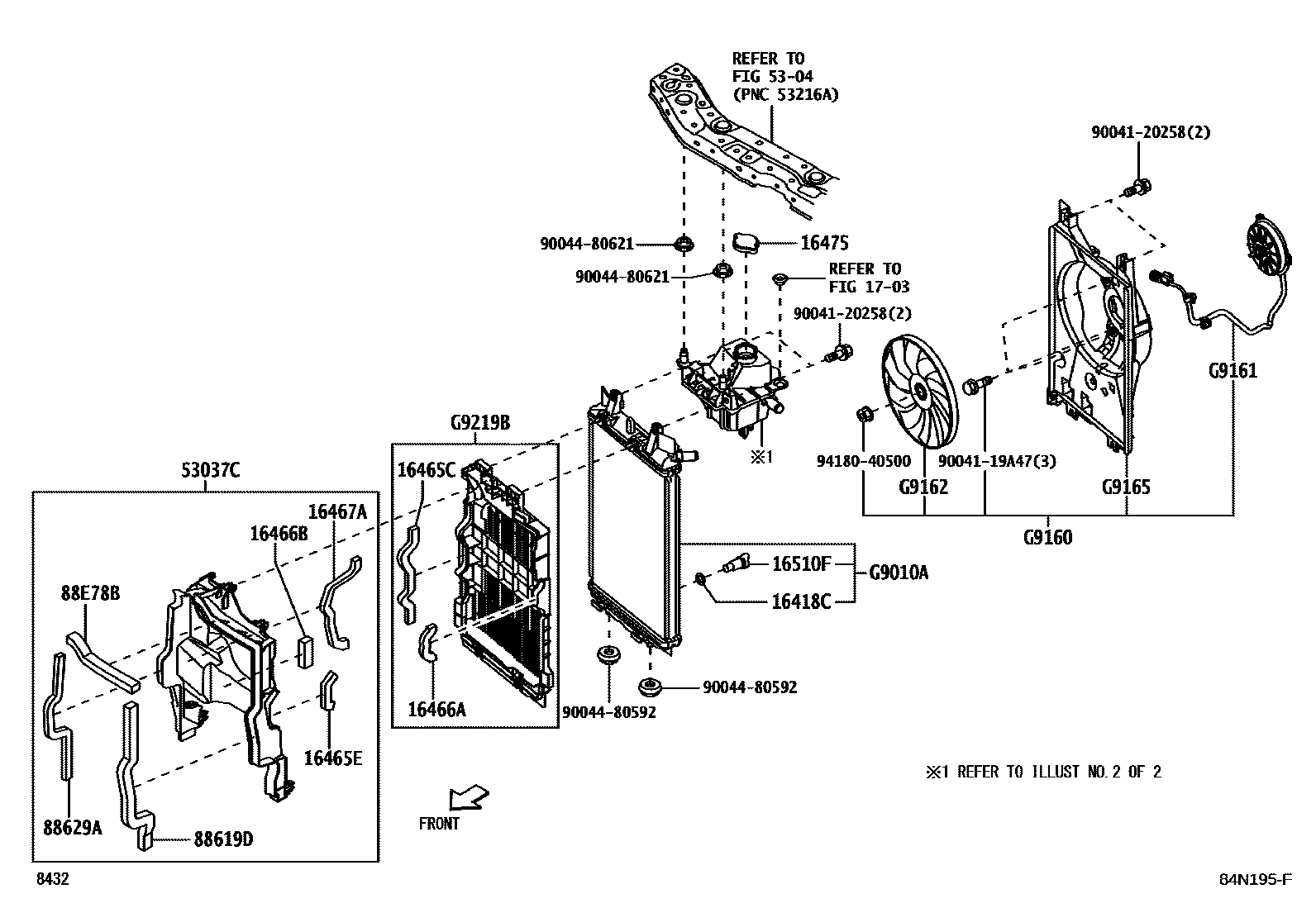

Parts diagram

16418CPACKING, RADIATOR DRAIN

main16418-87503i202111-202912

16465CPACKING, RADIATOR, NO.1

main16465-B1010i202111-202912

16465EPACKING, RADIATOR, NO.3

main16465-B1020i202111-202912

16466APACKING, RADIATOR, NO.2

main16466-B1010i202111-202912

16466BPACKING, RADIATOR, NO.4

main16466-B1020i202111-202912

16467APACKING, RADIATOR, NO.5

main16467-B1010i202111-202912

16475CAP, RESERVE TANK

main16401-B5070i202111-202912

16510FCOCK ASSY, DRAIN

main16417-30170i202111-202912

1703AIR CLEANER

→ Go to FIG 17-03

53037CSEAL SUB-ASSY, RADIATOR

main53037-B1030i202111-202912

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

88619DPACKING, COOLER, NO.2

main88619-B1120i202111-202912

88629APACKING, COOLER, NO.3

main88629-B1080i202111-202912

88E78BPACKING, COOLER, NO.1

main88578-B1680i202111-202912

G9010ARADIATOR ASSY

mainG9010B1010i202111-202912

G9160FAN ASSY, INVERTER COOLING W/MOTOR & BRACKET

mainG9160B1010i202111-202912

G9161MOTOR, INVERTER COOLING FAN

mainG9161B1010i202111-202912

G9162FAN, INVERTER COOLING

mainG9162B1010i202111-202912

G9165FRAME, INVERTER COOLING FAN

mainG9165B1010i202111-202912

G9219BPROTECTOR, INVERTER RADIATOR

mainG9219B1010i202111-202912

9004119A47

main90041-19A47

9004120258

main90041-20258

9004480592

main90044-80592

9004480621

main90044-80621

9418040500

main94180-40500

25 parts on this diagram · 2 diagrams in section
