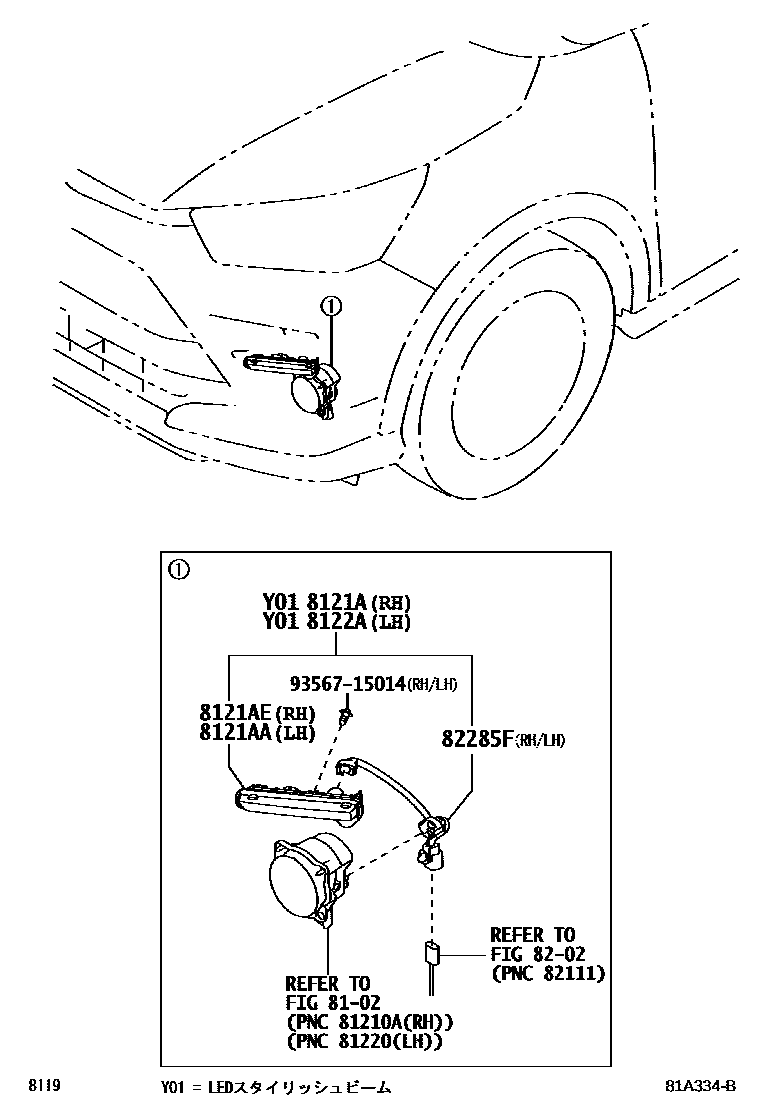

DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

8102FOG LAMP

→ Go to FIG 81-02

8121ALAMP, LED ILLUMINATION, RH

main812B0-B1040iA200,210..Z201910-202111

8121AALAMP, LED ILLUMINATION, LH

main812A0-B1050iA200,210..Z201910-202111

8121AELAMP, LED ILLUMINATION, RH

main812B0-B1050iA200,210..Z201910-202111

8122ALAMP, LED ILLUMINATION, LH

main812A0-B1040iA200,210..Z201910-202111

8202WIRING & CLAMP

→ Go to FIG 82-02

82285FWIRE, ILLUMINATION

main82285-B1080×2iA200,210..Z201910-202111

9356715014

main93567-15014

8 parts on this diagram · 1 diagram in section
