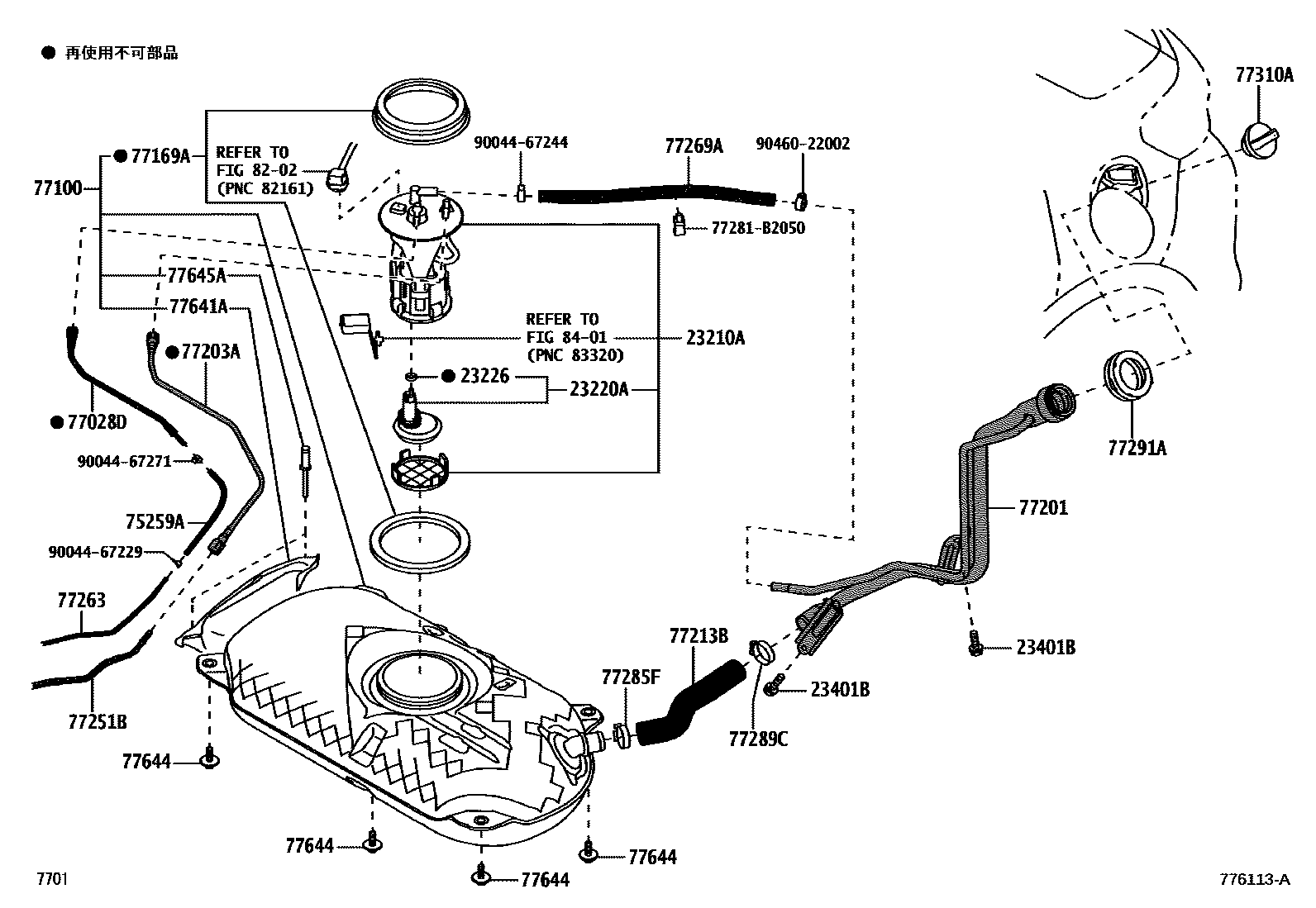

FUEL TANK & TUBE
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23220APUMP ASSY, FUEL W/FILTER
23226RING, O(FOR FUEL PUMP)
23401BBOLT
75259AHOSE, FUEL
77028DTUBE SUB-ASSY, FUEL EMISSION, REAR
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77213BHOSE, FUEL TANK TO FILLER PIPE
77263TUBE, FUEL TANK TO CANISTER, NO.3
77269AHOSE, FUEL TANK BREATHER
77285FCLAMP, FUEL TUBE, NO.1
77289CCLAMP, FUEL TUBE, NO.4
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
77645ARETAINER, FUEL TANK PROTECTOR
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
77281B2050BRACKET, FUEL MAIN TUBE, NO.1
main77281-B2050
9004467229
main90044-67229
9004467244
main90044-67244
9004467271
main90044-67271
9046022002
main90460-22002
28 parts on this diagram · 8 diagrams in section
