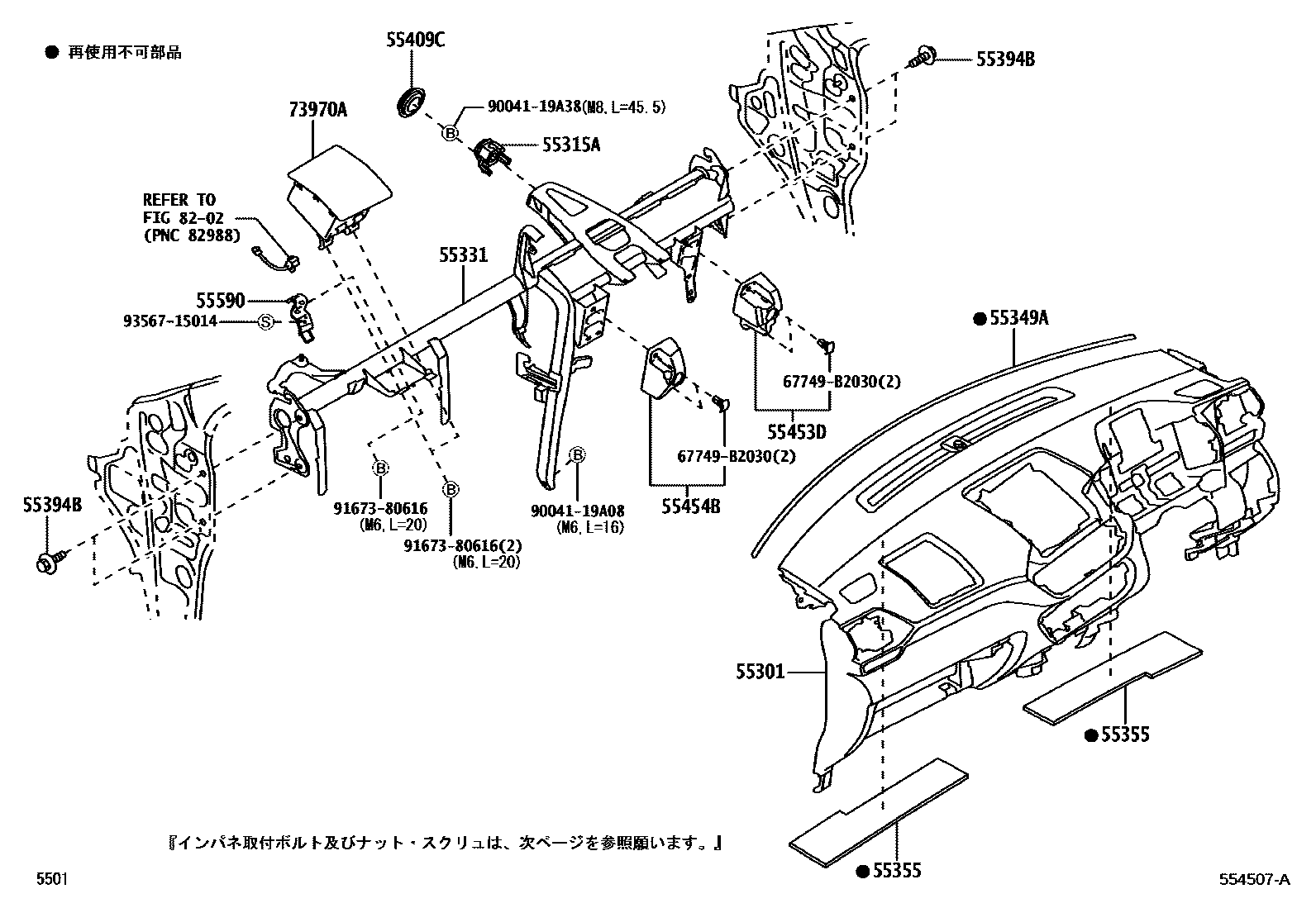

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1�������� ����, ��������� 0002 1�������� ����, ��������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1��������

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B1140-C0iA200,210201910-202912

BLACK,TRIM2#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iA200,210201910-202111

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1170iA200,210201910-202912

55349ACUSHION, INSTRUMENT PANEL

main55349-B1020iA200,210201910-202912

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B1130iA200,210201910-202111

main55355-B1160iA20#,210202111-202912

55394BBOLT, INSTRUMENT PANEL

main90041-19A09iA200,210201910-202111

55409CPLUG, HOLE

main90048-71319iA200,210201910-202111

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-B1100iA200,210201910-202912

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-B1100iA200,210201910-202912

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-B1010iA200,210201910-202912

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1120-C0iA200,210201910-202912

BLACK,TRIM2#

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030

9004119A08

main90041-19A08

9004119A38

main90041-19A38

9167380616

main91673-80616

9356715014

main93567-15014

17 parts on this diagram · 6 diagrams in section
