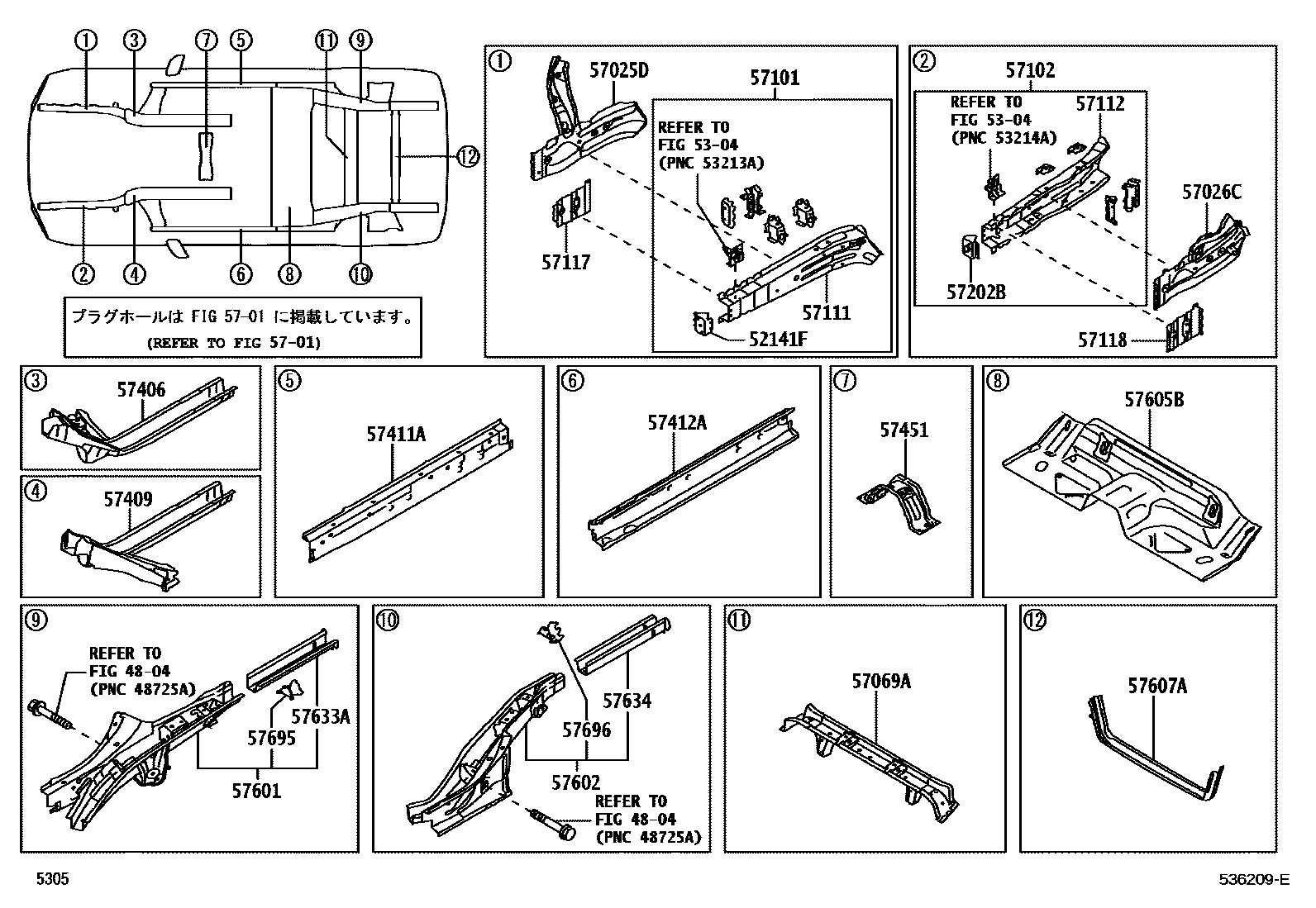

FLOOR SIDE MEMBER

0001 12WD 0002 14WD 0003 1��������

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

52141FARM, FRONT BUMPER, RH

main52141-B1040iA200,210201910-202111

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-B1010iA200,210201910-202111

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-B1010iA20#,210202111-202912

57069AMEMBER, REAR FLOOR, CENTER

main57069-B1080iA200201910-202111

main57069-B1090iA210201910-202111

main57069-B1100iA202202111-202912

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B1060iA200,210201910-202111

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B1070iA200,210201910-202111

main57102-B1100iA202202111-202912

57111MEMBER, FRONT SIDE, RH

main57111-B1050iA200,210201910-202111

57112MEMBER, FRONT SIDE, LH

main57112-B1060iA200,210201910-202111

main57112-B1090iA202202111-202912

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B1040iA200,210201910-202111

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-B1040iA200,210201910-202111

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-B1010iA200,210201910-202111

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-B1010iA200,210201910-202107

main57406-B1020iA200,210202108-202111

main57406-B1030iA202202111-202912

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-B1010iA200,210201910-202107

main57409-B1020iA200,210202108-202111

main57409-B1030iA202202111-202912

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-B1070iA201,210202111-202912

main57401-B1080iA202202111-202912

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-B1070iA200,210201910-202111

main57402-B1080iA202202111-202912

57451MEMBER, FRONT FLOOR CROSS

main57451-B1030iA200,210201910-202111

main57451-B1040iA202202111-202912

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B1130iA200201910-202111

main57601-B1140iA210202111-202912

main57601-B1160iA202202111-202912

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B1130iA201202111-202912

main57602-B1140iA210201910-202111

main57602-B1160iA202202111-202912

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B1100iA201202111-202912

main57605-B1110iA210202111-202912

main57605-B1140iA202202111-202912

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-B1010iA210202111-202912

main57607-B1020iA200201910-202111

main57607-B1030iA202202111-202912

57633AEXTENSION, REAR FLOOR SIDE MEMBER, REAR RH

main57633-B1050iA200,210201910-202111

57634EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH

main57634-B1030iA200,210201910-202111

57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH

main57695-B1010iA20#202111-202912

main57695-B1020iA210202111-202912

57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH

main57696-B1010iA200201910-202111

main57696-B1020iA210201910-202111

27 parts on this diagram · 3 diagrams in section
