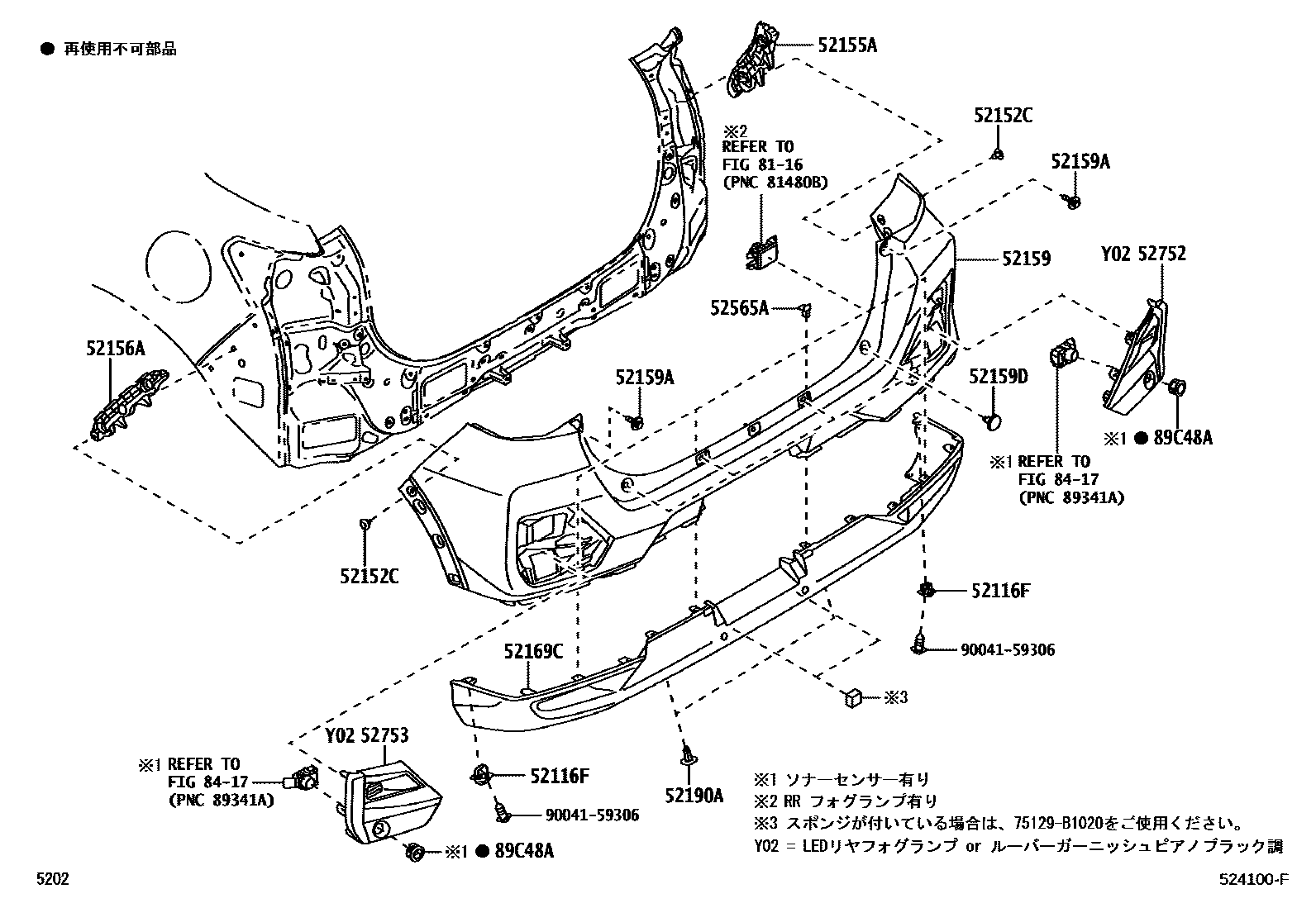

REAR BUMPER & BUMPER STAY
52116FRETAINER, REAR BUMPER
52152CCLIP, REAR BUMPER SIDE
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE PEARL SE.,W25; WHITE PEARL SE.,W25 ,XH3
SILVER ME.,S28; SILVER ME.,S28 ,X95
GRAY M.M.,S42; GRAY M.M.,S42 ,XL1
BLACK M.M.,X07
RED ME.,R67
BROWNISH BEIGE M.M.,T32
GREENISHYELLOW M.M.,Y15
LASER BLUE CRYSTAL SHINE,B82
TURQUOISE M.M.,B86; TURQUOISE M.M.,B86 ,XH6
52159ABOLT(FOR REAR BUMPER COVER)
52159DCLIP, REAR BUMPER COVER
52169CCOVER, REAR BUMPER, LOWER
52190ACLIP
52565ARETAINER, REAR BUMPER, LOWER
52752MOULDING, REAR BUMPER SIDE, RH
52753MOULDING, REAR BUMPER SIDE, LH
8116REAR FOG LAMP
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,X95 ,XH3 ,XH6 ,Y15; BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15
9004159306
main90041-59306
16 parts on this diagram · 3 diagrams in section
