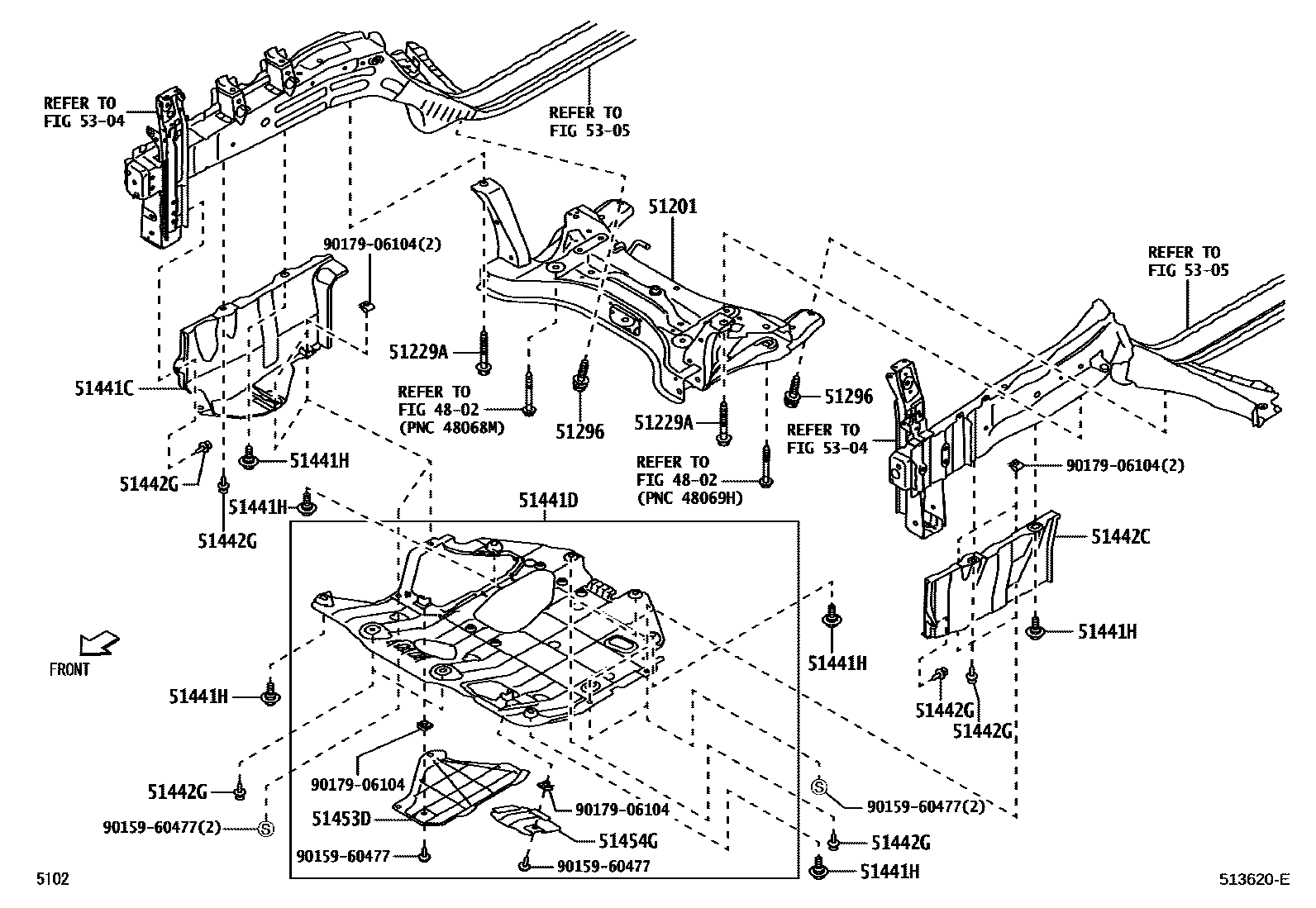

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B1170iA20#,210202111-202912

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-05594×2iA200,210201910-202111

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main91673-A1025×2iA20#,210202111-202912

51441CCOVER, ENGINE UNDER, RH

main51441-B1070iA20#,210202111-202912

main51441-B1100iA200,210201910-202111

51441DCOVER, ENGINE UNDER

main51405-B1030iA200,210201910-202111

main51405-B1050iA20#,210202111-202912

51441HBOLT, W/WASHER(FOR ENGINE UNDER COVER)

main90041-05546×6iA200,210201910-202111

51442CCOVER, ENGINE UNDER, LH

main51442-B1080iA200,210201910-202111

51442GCLIP, ENGINE UNDER COVER, NO.1

main90044-68378×8iA200,210201910-202111

51453DCOVER, ENGINE ROOM UNDER, RH

main51453-B1030iA200,210201910-202111

51454GCOVER, ENGINE ROOM UNDER, LH

main51454-B1030iA200,210201910-202111

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9015960477

main90159-60477

9017906104

main90179-06104

15 parts on this diagram · 2 diagrams in section
