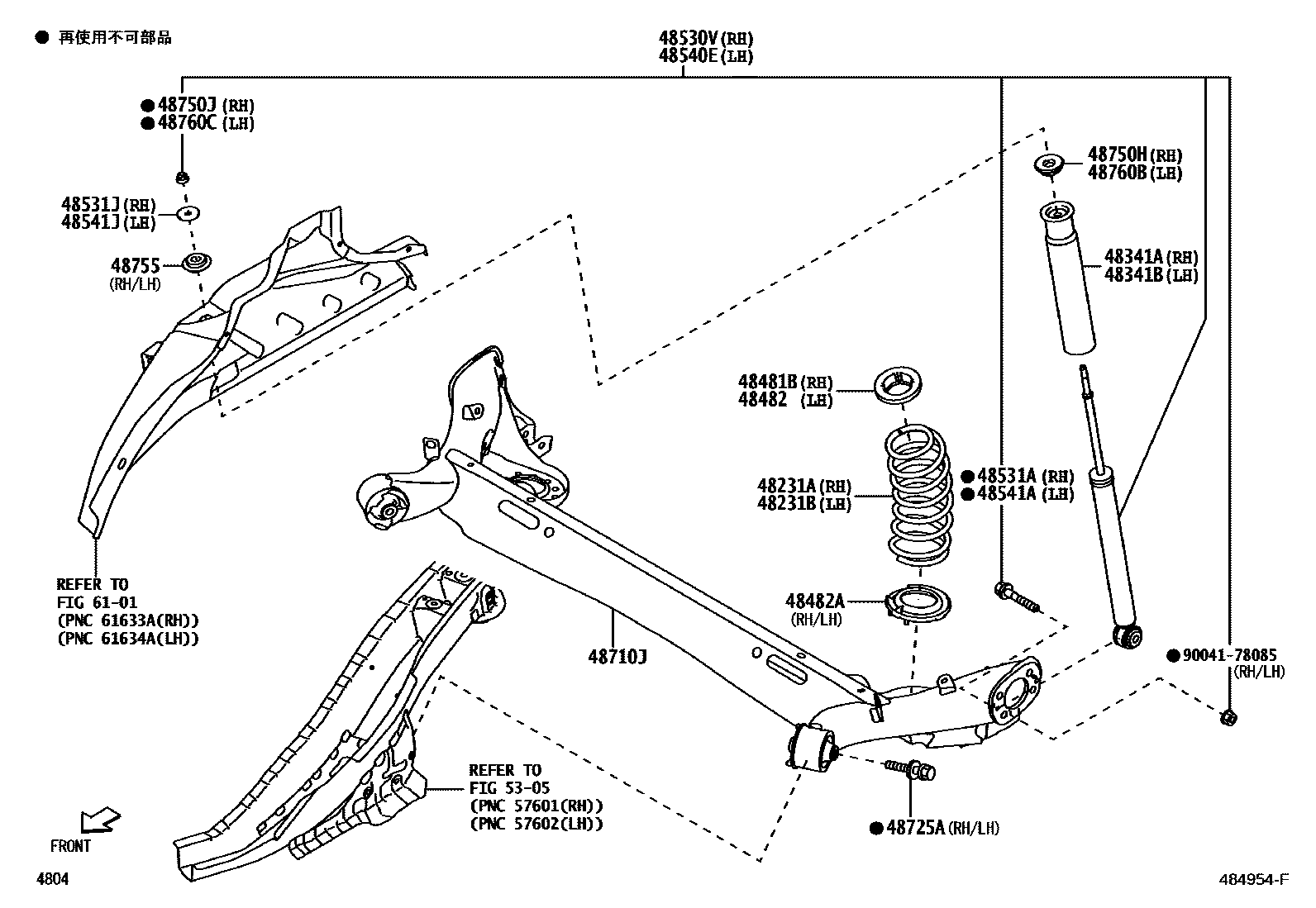

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48481BSEAT, REAR SPRING, UPPER RH
48482SEAT, REAR SPRING, UPPER LH
48482ASEAT, REAR SPRING, LOWER
48530VABSORBER SET, SHOCK, REAR RH
48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
48540EABSORBER SET, SHOCK, REAR LH
48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
48710JARM ASSY, REAR SUSPENSION, NO.1
48725ABOLT(FOR LOWER CONTROL ARM)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
5305FLOOR SIDE MEMBER
6101SIDE MEMBER
9004178085
main90041-78085
23 parts on this diagram · 4 diagrams in section
