BRAKE TUBE & CLAMP

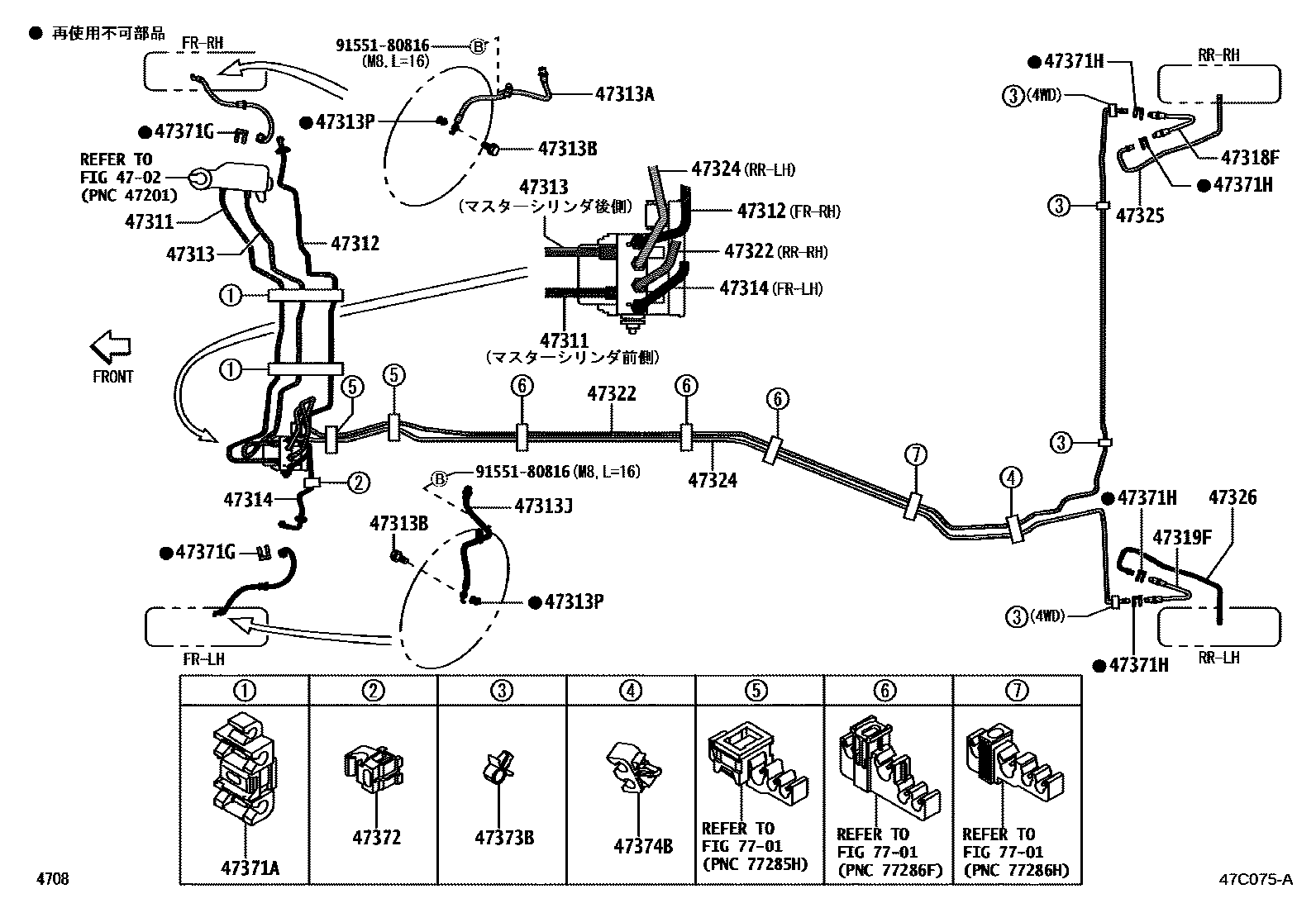

Parts diagram

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-B1270i201910-202111

main47311-B1310i202111-202912

47312TUBE, FRONT BRAKE, NO.2

main47312-B1170i201910-202111

main47312-B1210i202111-202912

47313TUBE, FRONT BRAKE, NO.3

main47313-B1270i201910-202111

main47313-B1310i202111-202912

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22326i201910-202111

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2i201910-202111

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90049-22326i201910-202111

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2i201910-202111

47314TUBE, FRONT BRAKE, NO.4

main47314-B1140i201910-202111

main47314-B1170i202111-202912

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90049-22327i201910-202111

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90049-22327i201910-202111

47322TUBE, REAR BRAKE, NO.2

main47322-B1200i201910-202111

main47322-B1210i202111-202912

main47322-B1260i202111-202912

47324TUBE, REAR BRAKE, NO.4

main47324-B1220i202111-202912

main47324-B1230i202111-202912

main47324-B1280i202111-202912

47325TUBE, REAR BRAKE, NO.5

main47325-B1090i202111-202912

main47325-B1100i201910-202111

47326TUBE, REAR BRAKE, NO.6

main47326-B1090i201910-202111

main47326-B1100i201910-202111

47371ACLAMP, BRAKE TUBE, NO.1

main47371-B2080×2i202111-202912

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441×2i201910-202111

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441×4i201910-202111

47372CLAMP, BRAKE TUBE, NO.2

main47372-B2040i201910-202111

47373BCLAMP, BRAKE TUBE, NO.3

main90044-64918×2i201910-202111

47374BCLAMP, BRAKE TUBE, NO.4

main90044-64891i201910-202111
