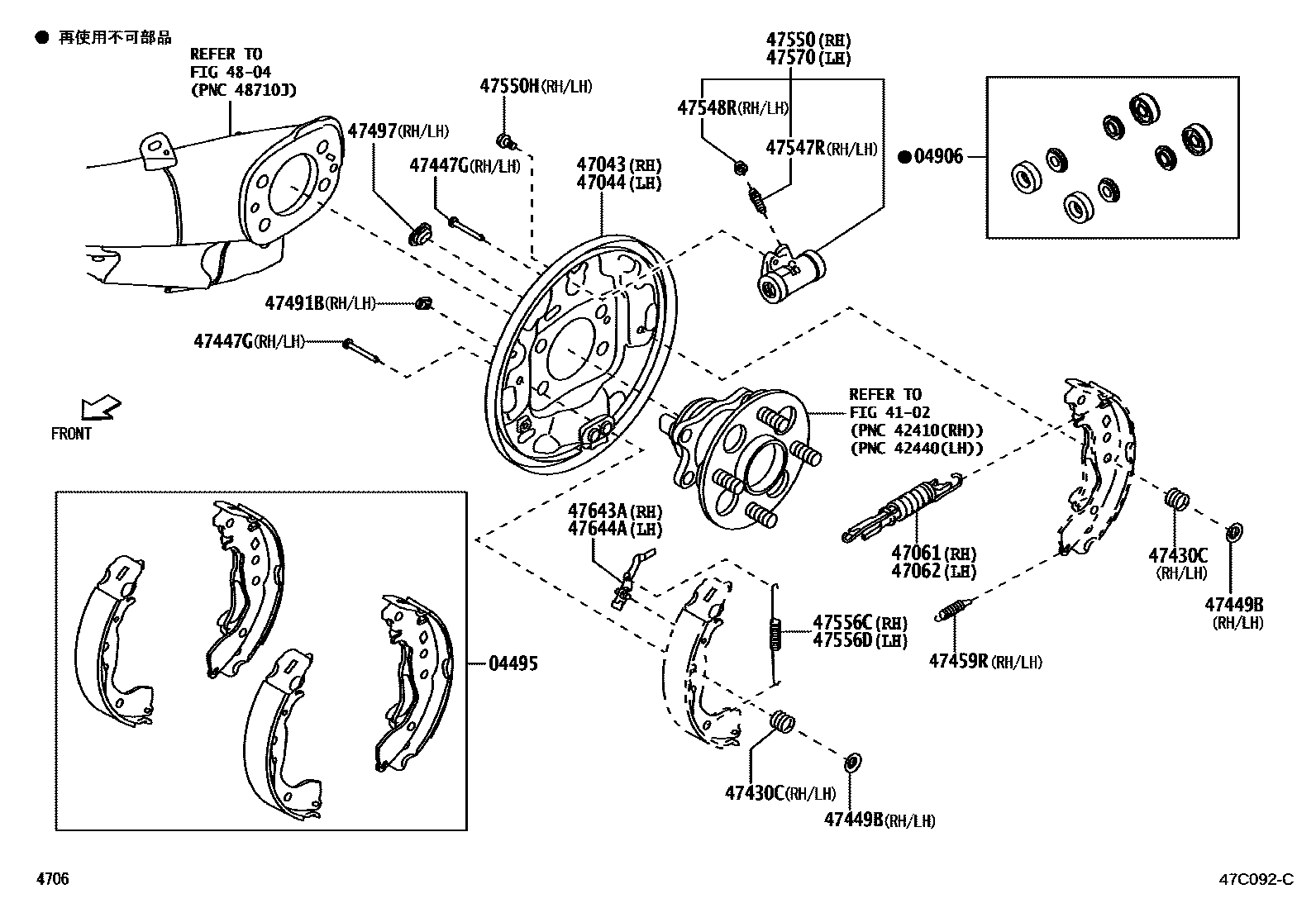

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
04906CUP KIT, REAR WHEEL CYLINDER
4102REAR AXLE SHAFT & HUB
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47061STRUT SET, PARKING BRAKE SHOE, RH
47062STRUT SET, PARKING BRAKE SHOE, LH
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459RSPRING, SHOE RETURN(FOR REAR BRAKE)
47491BPLUG, HOLE(FOR REAR BRAKE)
47497PLUG, HOLE NO.2(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550HBOLT(FOR REAR WHEEL CYLINDER)
47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)
47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
4804REAR SPRING & SHOCK ABSORBER
23 parts on this diagram · 7 diagrams in section
