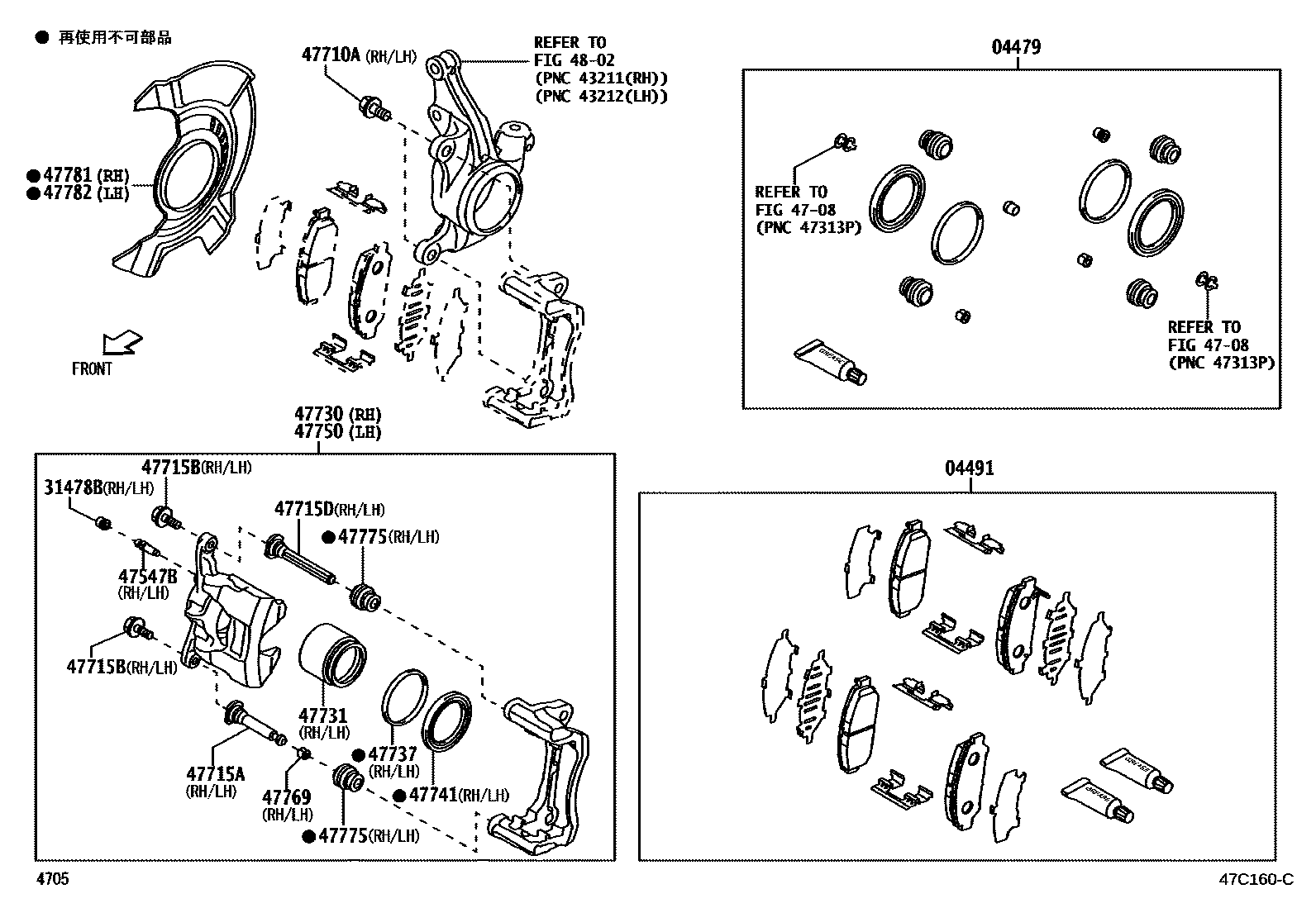

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B2220iA200,210201910-202111

04491PAD KIT, DISC BRAKE, FRONT

main04465-B2240iA200,210201910-202010

main04465-B2241iA200,210202011-202111

main04465-B2242iA201202303-202912

main04465-B2280iA202,210202111-202302

main04465-B2281iA202,210202303-202912

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-B3010×2iA200,210201910-202111

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87207×2iA20#,210202111-202912

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05176×4iA20#,210202111-202912

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-B1060×2iA200,210201910-202111

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90041-05243×4iA20#,210202111-202912

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-B1050×2iA200,210201910-202111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B1080iA200201910-202111

main47730-B1081iA201202308-202912

main47730-B1090iA202,210202111-202307

main47730-B1091iA202,210202308-202912

47731PISTON, FRONT DISC BRAKE

main47731-B1040×2iA200,210201910-202111

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-87602×2iA200,210201910-202111

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-97201×2iA200,210201910-202111

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B1080iA200201910-202111

main47750-B1081iA201202308-202912

main47750-B1090iA202,210202111-202307

main47750-B1091iA202,210202308-202912

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-B1020×2iA200,210201910-202111

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-87603×4iA200,210201910-202111

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-B1080iA200,210201910-202111

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-B1080iA200,210201910-202111

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

19 parts on this diagram · 2 diagrams in section
