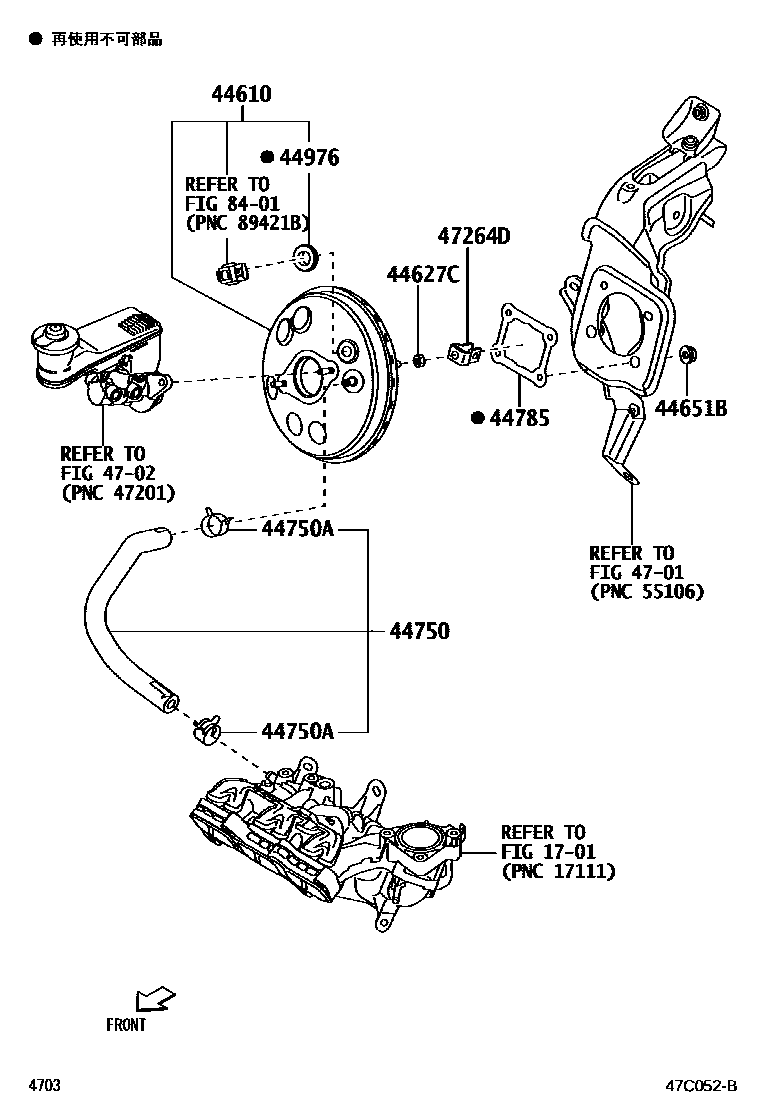

BRAKE BOOSTER & VACUUM TUBE

0001 1STD 0002 1��������

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B1240iA202202111-202912

main44610-B1270iA200,210201910-202111

44627CNUT, BOOSTER SLEEVE CYLINDER

main94130-01002iA200,210201910-202111

44651BNUT, BOOSTER

main90041-79300×4iA200,210201910-202111

44750HOSE ASSY, VACUUM

main44750-B1150iA200,210201910-202111

main44750-B1160iA202202111-202912

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161×2iA200,210201910-202111

44785GASKET, BRAKE BOOSTER

main47278-87703iA200,210201910-202111

44976SEAL, BOOSTER

main44685-B2010iA200,210201910-202111

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B1010iA200,210201910-202111

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

12 parts on this diagram · 2 diagrams in section
