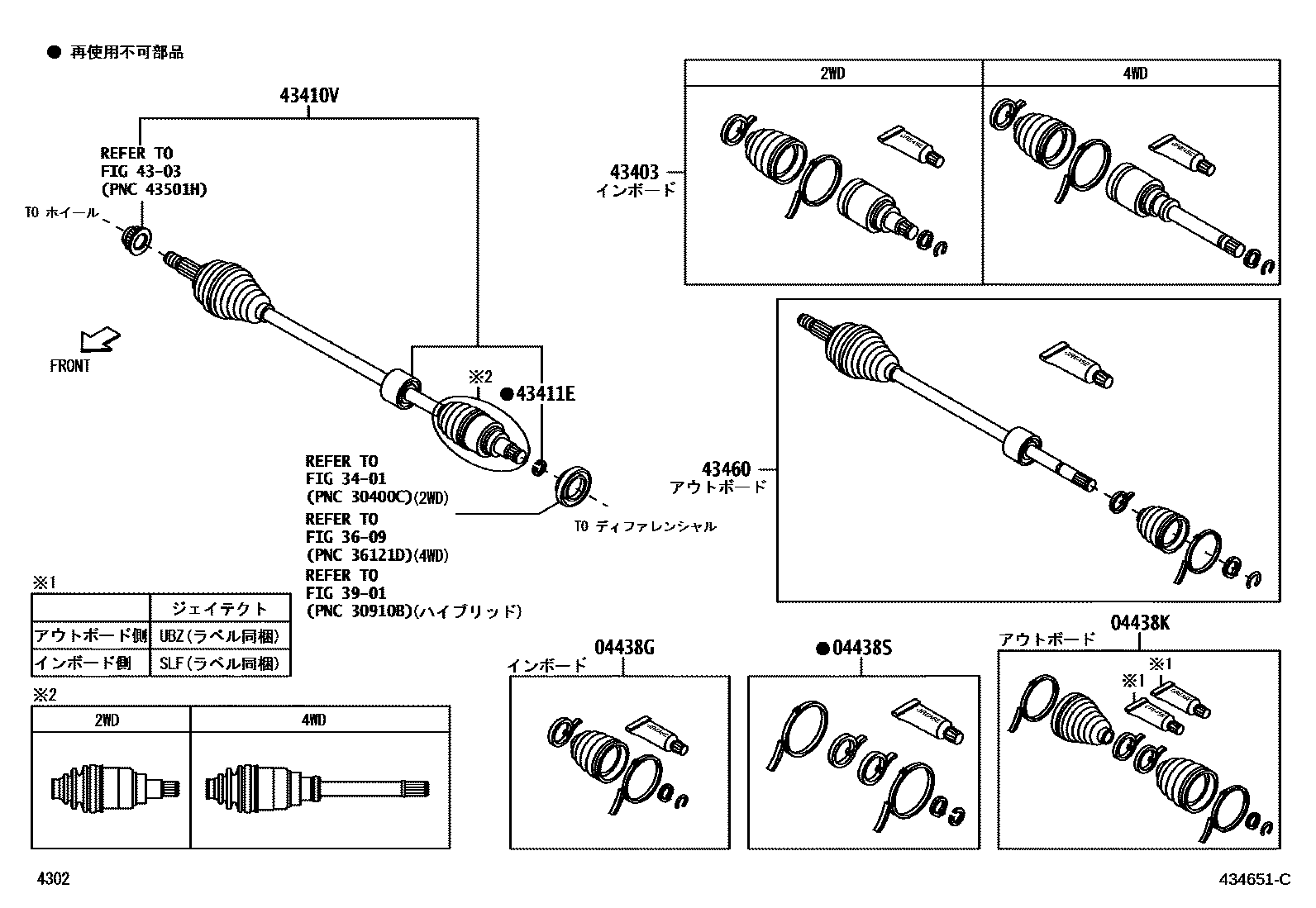

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B1100iA200,210201910-202912

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B1150iA200,210201910-202111

main04425-B1160iA20#,210202111-202912

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B1110iA200,210201910-202912

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

4303FRONT AXLE HUB

→ Go to FIG 43-03

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-B9010iA200201910-202111

main43403-B9020iA210201910-202111

main43408-B9680iA20#202111-202912

main43408-B9700iA210202111-202912

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9000iA20#202111-202912

main43410-B9010iA210202111-202912

main43410-B9840iA200201910-202111

main43410-B9850iA210201910-202111

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90045-20232iA200,210201910-202912

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9620iA200201910-202111

main43411-B9630iA210201910-202111

main43411-B9710iA20#202111-202912

main43411-B9720iA210202111-202912

11 parts on this diagram · 2 diagrams in section
