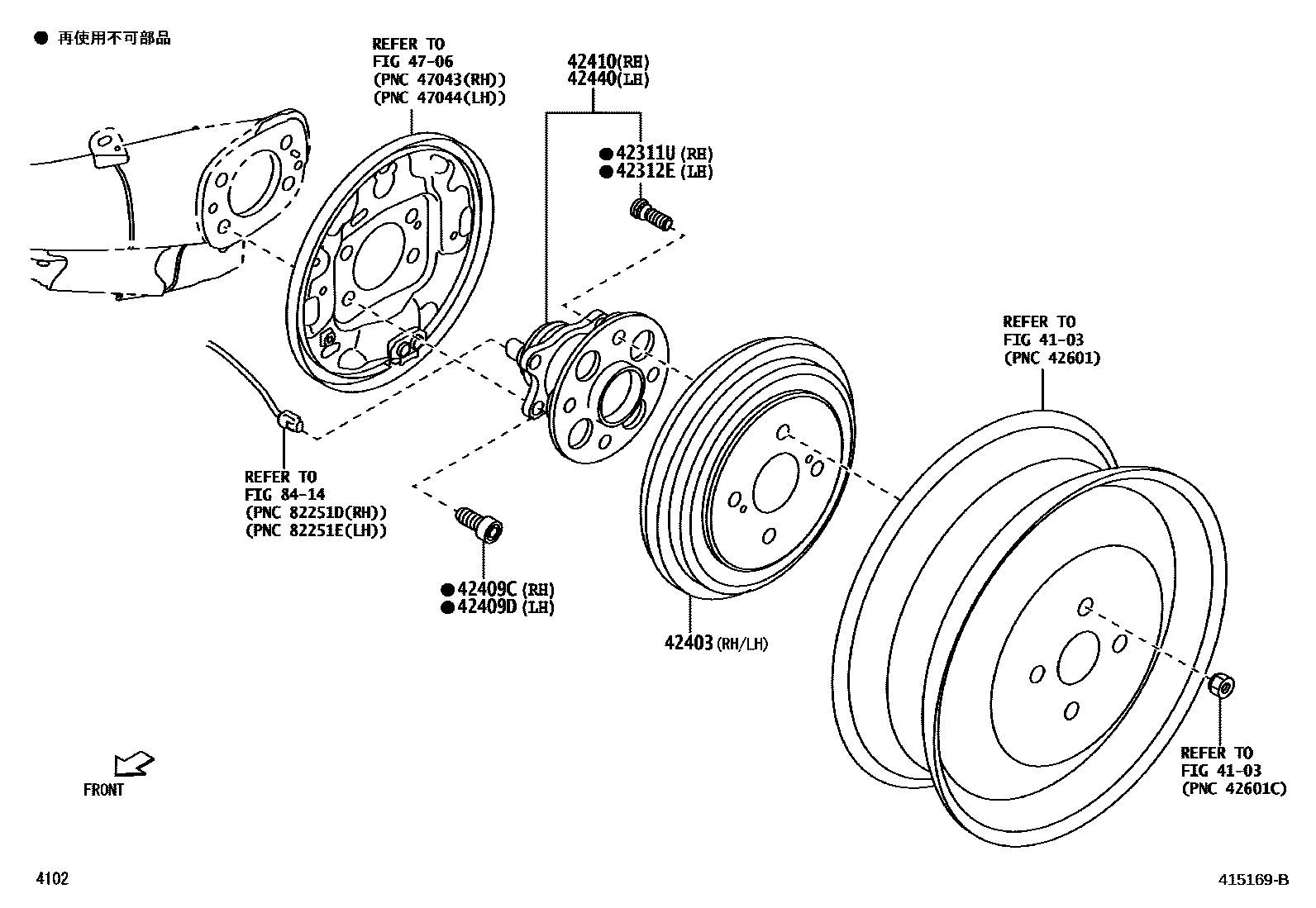

REAR AXLE SHAFT & HUB

0001 12WD 0002 12WD 0003 14WD 0004 14WD 0005 1��������

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12056×4iA201; A202202111-202912

main90049-12062×4iA210201910-202111

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12056×5iA201; A202202111-202912

main90049-12062×4iA210201910-202111

42403DRUM SUB-ASSY, REAR BRAKE

main42431-B1060×2iA201202111-202912

main42431-B1070×2iA210202111-202912

main42431-B1080×2iA202202111-202912

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01719×4iA20#202111-202912

main90041-05567×4iA210201910-202111

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01719×4iA200201910-202111

main90041-05567×4iA210201910-202111

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B1070iA202202111-202912

main42410-B1100iA200201910-202111

main42450-B1010iA210201910-202111

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B1070iA202202111-202912

main42410-B1100iA201202111-202912

main42450-B1010iA210201910-202111

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

10 parts on this diagram · 5 diagrams in section
