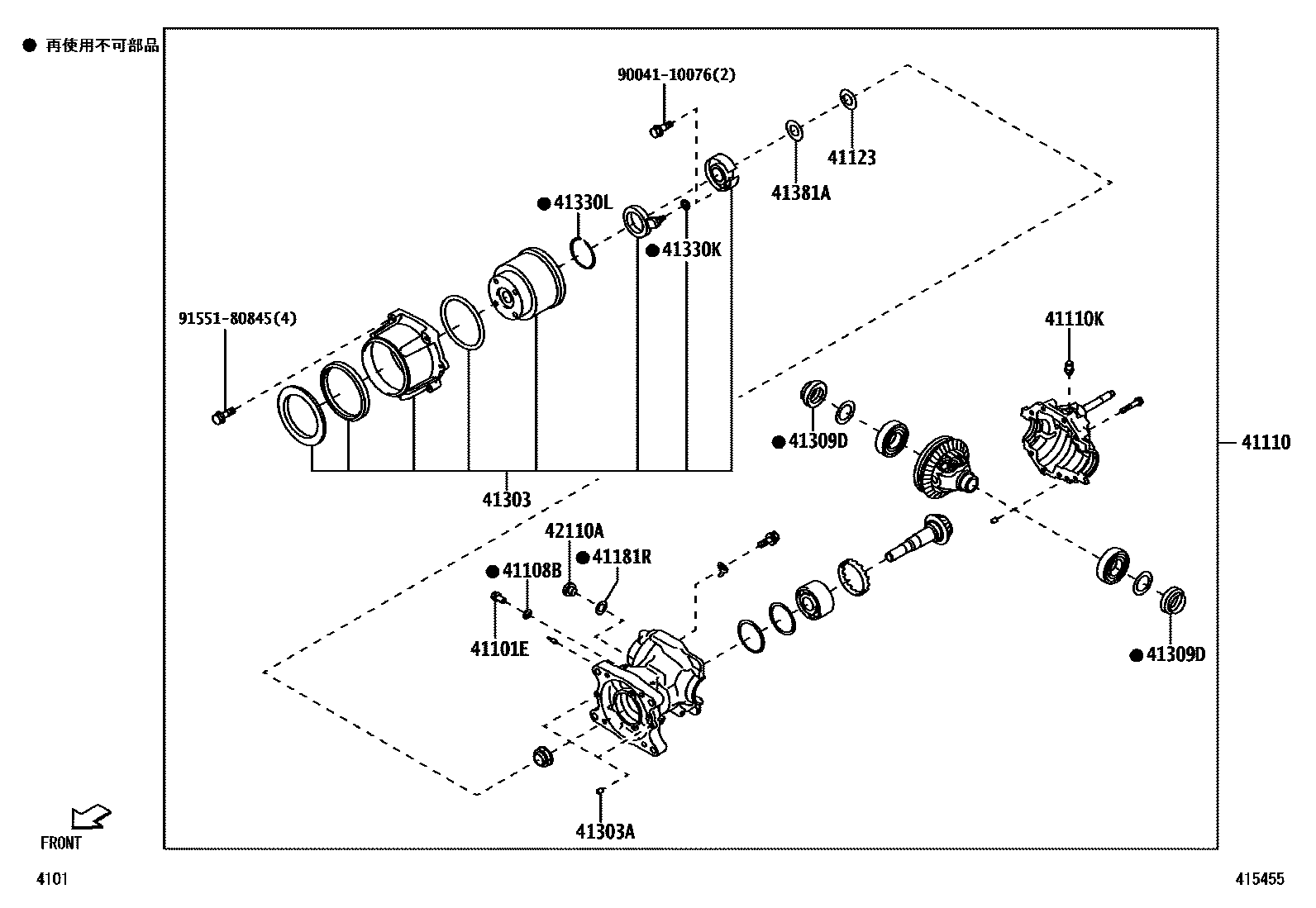

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)

main90041-05210iA210201910-202111

41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

main90044-30026iA210201910-202111

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-B1160iA210201910-202003

main41110-B1161iA210202004-202111

41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)

main90049-15060iA210201910-202111

41123SHIM, DIFFERENTIAL DRIVE PINION CARRIER

main90045-64682iA210201910-202111

main90045-64683iA210202111-202912

main90045-64684iA210201910-202111

main90045-64685iA210202111-202912

main90045-64686iA210201910-202111

main90045-64687iA210202111-202912

main90045-64688iA210201910-202111

main90045-64689iA210202111-202912

main90045-64690iA210202111-202912

main90045-64691iA210202111-202912

main90045-64692iA210201910-202111

main90045-64693iA210202111-202912

main90045-64694iA210202111-202912

main90045-64695iA210201910-202111

main90045-64696iA210202111-202912

main90045-64697iA210201910-202111

main90045-64698iA210202111-202912

main90045-64699iA210202111-202912

main90045-64700iA210201910-202111

main90045-64701iA210202111-202912

41181RGASKET(FOR REAR DIFFERENTIAL CARRIER PLUG)

main90044-30178iA210201910-202111

41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL

main41303-B1010iA210202111-202912

41303APIN, STRAIGHT (FOR ELECTRO MAGNETIC CONTROL COUPLING)

main90042-50202×2iA210202111-202912

41309DSEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90043-11400×2iA210202111-202912

41330KRING, O (FOR TRANSMISSION COUPLING)

main90301-16015iA210201910-202111

41330LRING, SNAP (FOR TRANSMISSION COUPLING)

main90520-59004iA210201910-202111

41381AWASHER, CONICAL SPRING

main90042-08039iA210202111-202912

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90043-41052iA210202311-202912

main90341-16012iA210201910-202111

9004110076

main90041-10076

9155180845

main91551-80845

15 parts on this diagram · 4 diagrams in section
