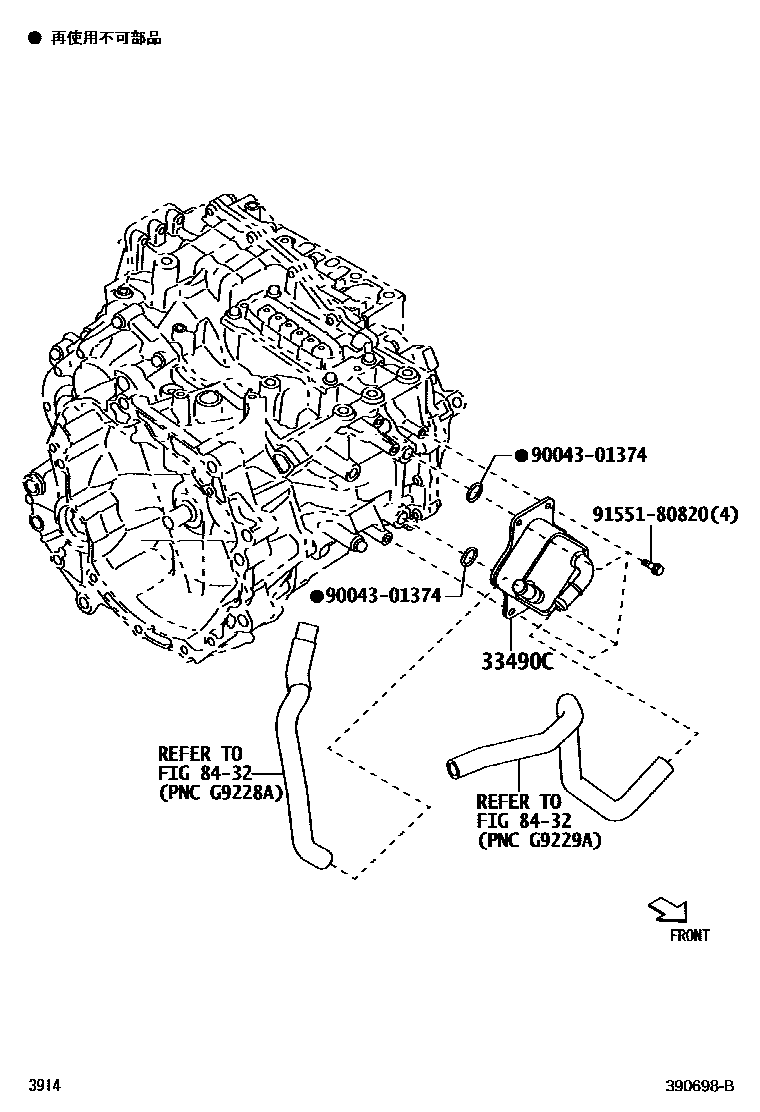

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

33490CCOOLER ASSY, TRANSMISSION OIL

main33490-B1050iA202202111-202912

8432INVERTER COOLING

→ Go to FIG 84-32

9004301374

main90043-01374

9155180820

main91551-80820

4 parts on this diagram · 1 diagram in section
