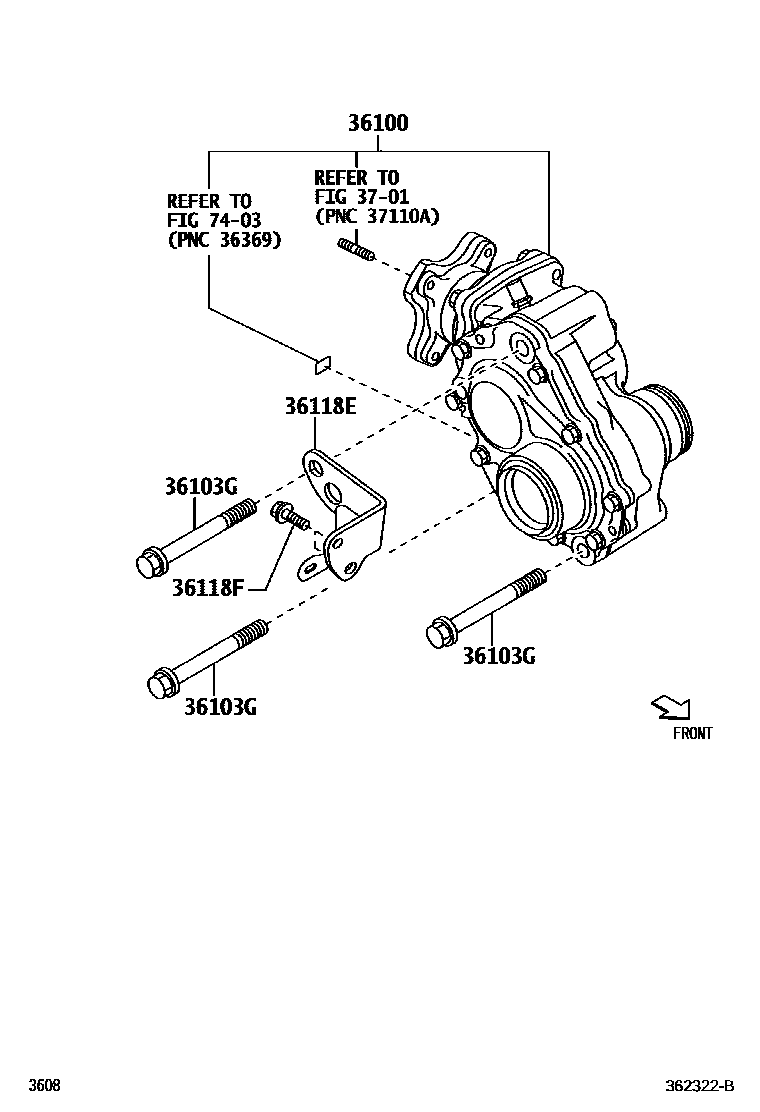

TRANSFER ASSEMBLY & GASKET KIT

36100TRANSFER ASSY

main36110-B2160iA210201910-202111

36103GBOLT(FOR TRANSFER CASE)

main90041-20083×3iA210201910-202111

36118EPLATE, TRANSFER STIFFENER, RH

main36118-B1040iA210201910-202111

36118FBOLT(FOR TRANSFER STIFFENER PLATE)

main91671-80820×2iA210201910-202111

3701PROPELLER SHAFT & UNIVERSAL JOINT

→ Go to FIG 37-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

6 parts on this diagram · 1 diagram in section
