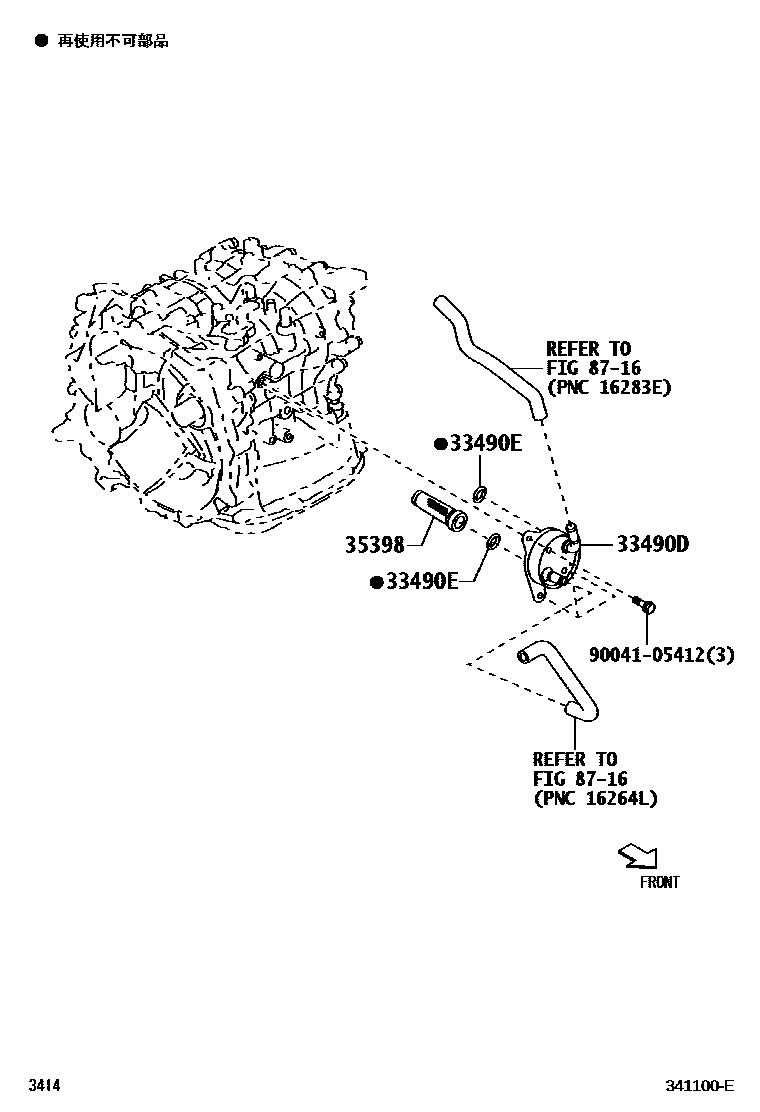

OIL COOLER & TUBE(CVT)

0001 1 0002 1

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-B2030iA200,210201910-202111

33490ERING, O (FOR TRANSMISSION OIL COOLER)

main90043-01374×2iA200,210201910-202111

35398STRAINER, LUBRICATION OIL

main35398-B2010iA200,210201910-202111

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9004105412

main90041-05412

5 parts on this diagram · 2 diagrams in section
