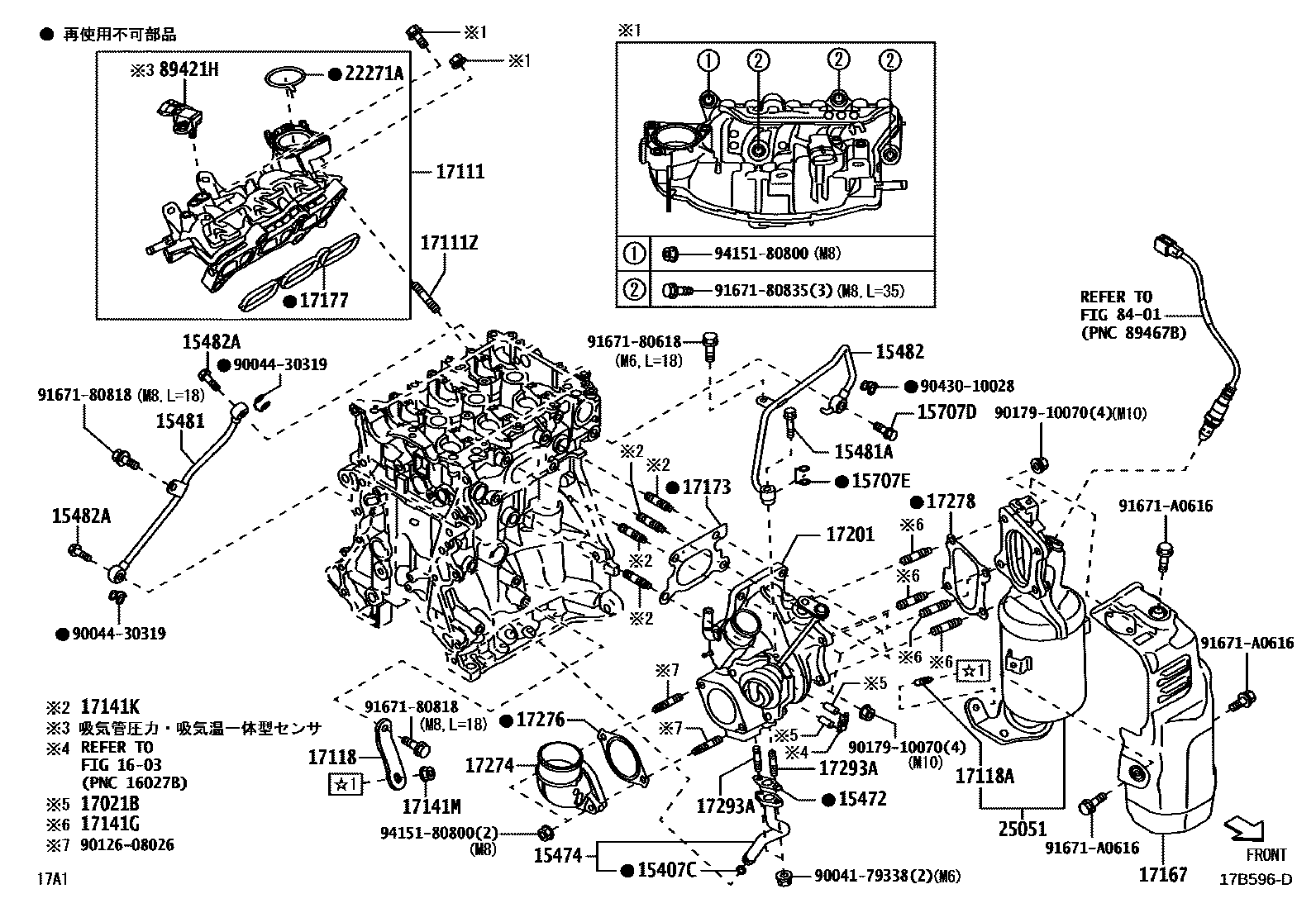

MANIFOLD
15407CRING, O(FOR TURBO OIL PIPE)
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15481PIPE, TURBO OIL, NO.1
15481ABOLT, UNION, NO.1
15482PIPE, TURBO OIL, NO.2
15482ABOLT, UNION, NO.2
15707DBOLT, UNION(FOR OIL PIPE)
15707EGASKET(FOR OIL PIPE)
1603RADIATOR & WATER OUTLET
17021BBOLT, STUD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17118ABOLT, STUD(FOR MANIFOLD STAY)
17141GBOLT, STUD(FOR TURBOCHARGER)
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17201TURBOCHARGER SUB-ASSY
17274ELBOW, COMPRESSOR INLET
17276GASKET, COMPRESSOR INLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17293ABOLT, STUD(FOR TURBOCHARGER STAY)
22271AGASKET, THROTTLE BODY
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
8401SWITCH & RELAY & COMPUTER
9004179338
main90041-79338
9004430319
main90044-30319
9012608026
main90126-08026
9017910070
main90179-10070
9043010028
main90430-10028
9167180618
main91671-80618
9167180818
main91671-80818
9167180835
main91671-80835
91671A0616
main91671-A0616
9415180800
main94151-80800
40 parts on this diagram · 3 diagrams in section
