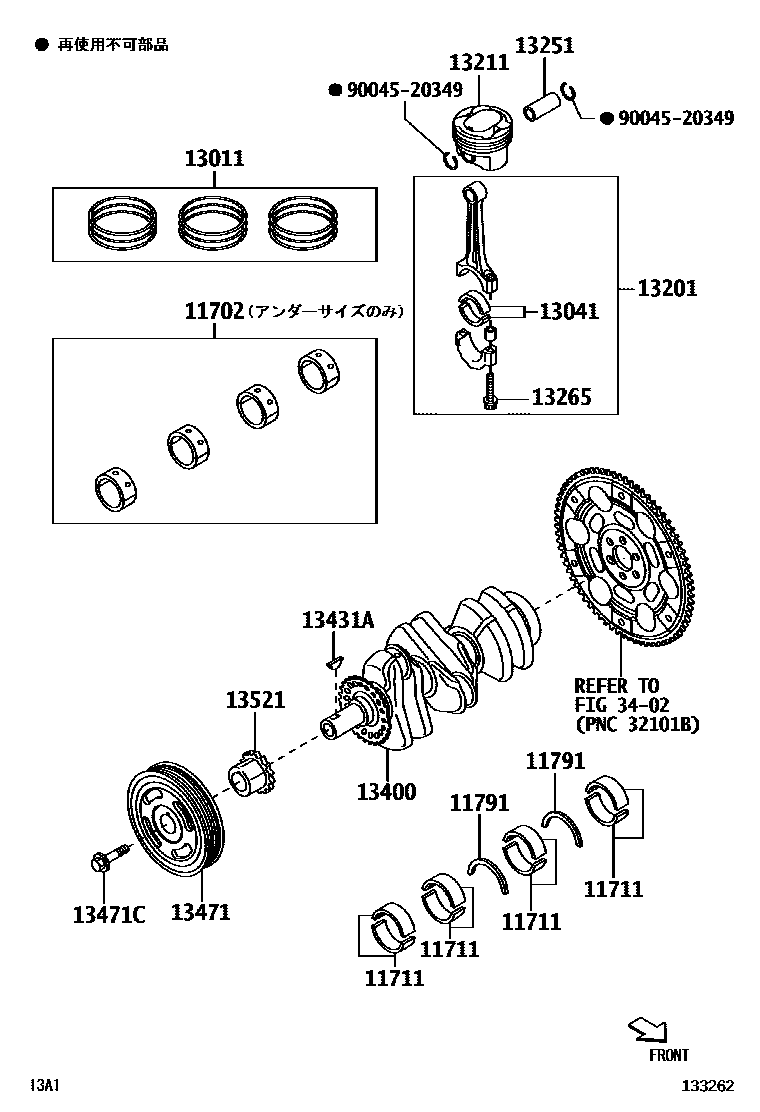

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11702BEARING SET, CRANKSHAFT

main11704-40040i1KRVET..A210202111-202912

11711BEARING, CRANKSHAFT

main11701-40040-02×4i1KRVET..A210202111-202912

main11701-40040-03×4i1KRVET..A210202111-202912

main11701-40040-04×4i1KRVET..A200,210201910-202111

main11701-40040-05×4i1KRVET..A210202111-202912

main11701-B1030-01×4iWAV#..A20#202111-202912

main11701-B1030-02×4iWAV#..A20#202111-202912

main11701-B1030-03×4iWAV#..A20#202111-202912

main11701-B1030-04×4iWAV#..A20#202111-202912

main11701-B1030-05×4iWAV#..A20#202111-202912

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-40040×2i1KRVET..A200,210201910-202111

main11791-B1030×2iWAV#..A20#202111-202912

main11792-40040×2i1KRVET..A210202111-202912

main11793-40040×2i1KRVET..A200,210201910-202111

13011RING SET, PISTON

main13011-40070i1KRVET..A200,210201910-202111

main13011-B1060iWAV#..A20#202111-202912

13041BEARING, CONNECTING ROD

main13041-40032-01×3i1KRVET..A210202111-202912

main13041-40032-02×3i1KRVET..A200,210201910-202111

main13041-40032-03×3i1KRVET..A210202111-202912

main13041-B1030-01×3iWAV#..A20#202111-202912

main13041-B1030-02×3iWAV#..A20#202111-202912

main13041-B1030-03×3iWAV#..A20#202111-202912

13201ROD SUB-ASSY, CONNECTING

main13201-B9110-0X×3i1KRVET..A200,210201910-202111

main13201-B9110-0Y×3i1KRVET..A210202111-202912

main13201-B9110-0Z×3i1KRVET..A200,210201910-202111

main13201-B9300-0A×3iWAV#..A20#202111-202912

main13201-B9300-0B×3iWAV#..A20#202111-202912

13211PISTON

main13211-B1120-XX×3i1KRVET..A200,210201910-202111

main13211-B1120-YY×3i1KRVET..A210202111-202912

main13211-B1120-ZZ×3i1KRVET..A210202111-202912

main13211-BZ310-0A×3iWAV#..A20#202111-202912

main13211-BZ310-0B×3iWAV#..A20#202111-202912

13251PIN, PISTON

main13251-B1020-0X×3i1KRVET..A200,210201910-202111

main13251-B1020-0Y×3i1KRVET..A200,210201910-202111

main13251-B1020-0Z×3i1KRVET..A200,210201910-202111

main13251-B1030-0A×3iWAV#..A20#202111-202912

main13251-B1030-0B×3iWAV#..A20#202111-202912

13265BOLT, CONNECTING ROD

main13265-21020×6i1KRVET..A200,210201910-202111

main13265-BZ010×6iWAV#..A20#202111-202912

13400CRANKSHAFT ASSY

main13401-40060i1KRVET..A210202111-202912

main13401-B1030iWAV#..A20#202111-202912

13431AKEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR)

main90280-04001i1KRVET..A200,210201910-202111

13471PULLEY, CRANKSHAFT

main13470-B1040i1KRVET..A200,210201910-202111

main13470-B1070iWAV#..A20#202111-202912

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i1KRVET..A200,210201910-202111

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-40020i1KRVET..A200,210201910-202111

main13521-BZ050iWAV#..A20#202111-202912

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

9004520349

main90045-20349

16 parts on this diagram · 3 diagrams in section
