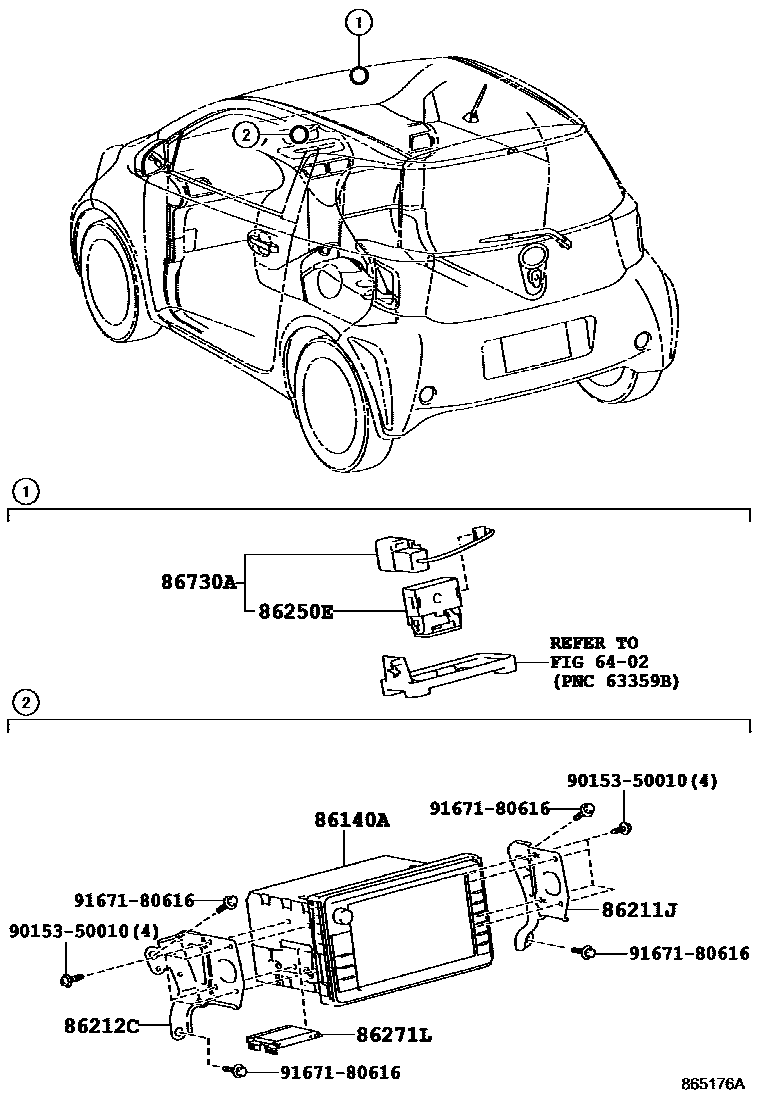

NAVIGATION & FRONT MONITOR DISPLAY

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

86140ARECEIVER ASSY, RADIO & DISPLAY

main86804-74020iKPJ10201209

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-74030iKPJ10201209-201212

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-74040iKPJ10201209-201212

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iKPJ10201209

86271LHARD DISC

main86271-74022iKPJ10201209-201303

86730AMICROPHONE ASSY, TELEPHONE

main86730-52020iKPJ10201209-201212

9015350010

main90153-50010

9167180616

main91671-80616

9 parts on this diagram · 1 diagram in section
