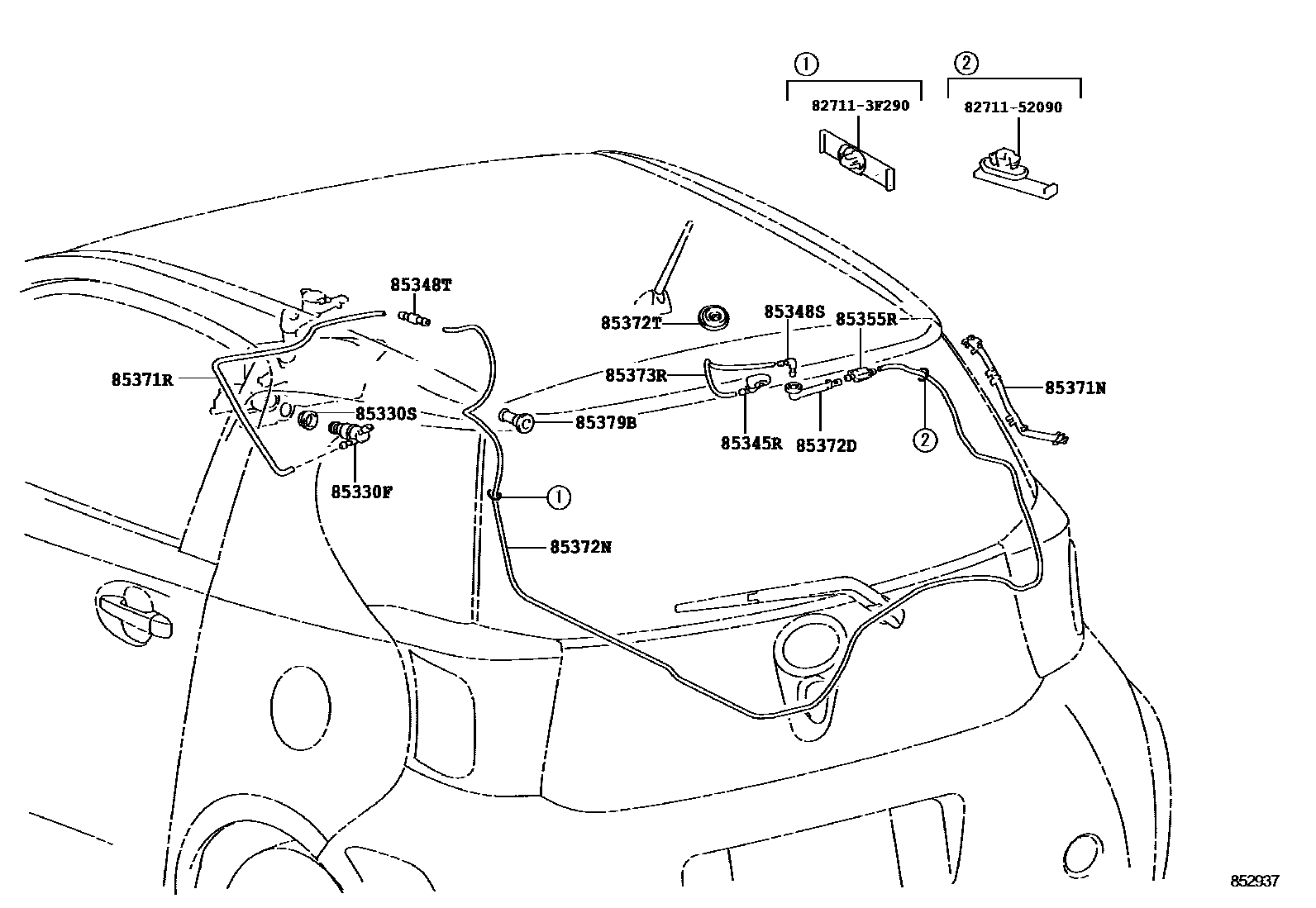

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-42030iKPJ10201209-201212

85330SBUSH, REAR WASHER JAR

main85336-60300iKPJ10201209-201212

85345RNOZZLE, REAR WASHER

main85391-74010iKPJ10201209

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iKPJ10201209

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKPJ10201209

85355RVALVE, REAR WASHER HOSE

main85321-26020iKPJ10201209

85371NCLAMP, REAR WASHER HOSE

main85371-74010iKPJ10201209

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62093iKPJ10201209-201212

85372DGROMMET, REAR WASHER HOSE

main85373-12090iKPJ10201209

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iKPJ10201209

85372TGROMMET, WASHER

main85372-20020iKPJ10201209

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iKPJ10201209

85379BGROMMET, WASHER, A

main85379-12850iKPJ10201209

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

15 parts on this diagram · 1 diagram in section
