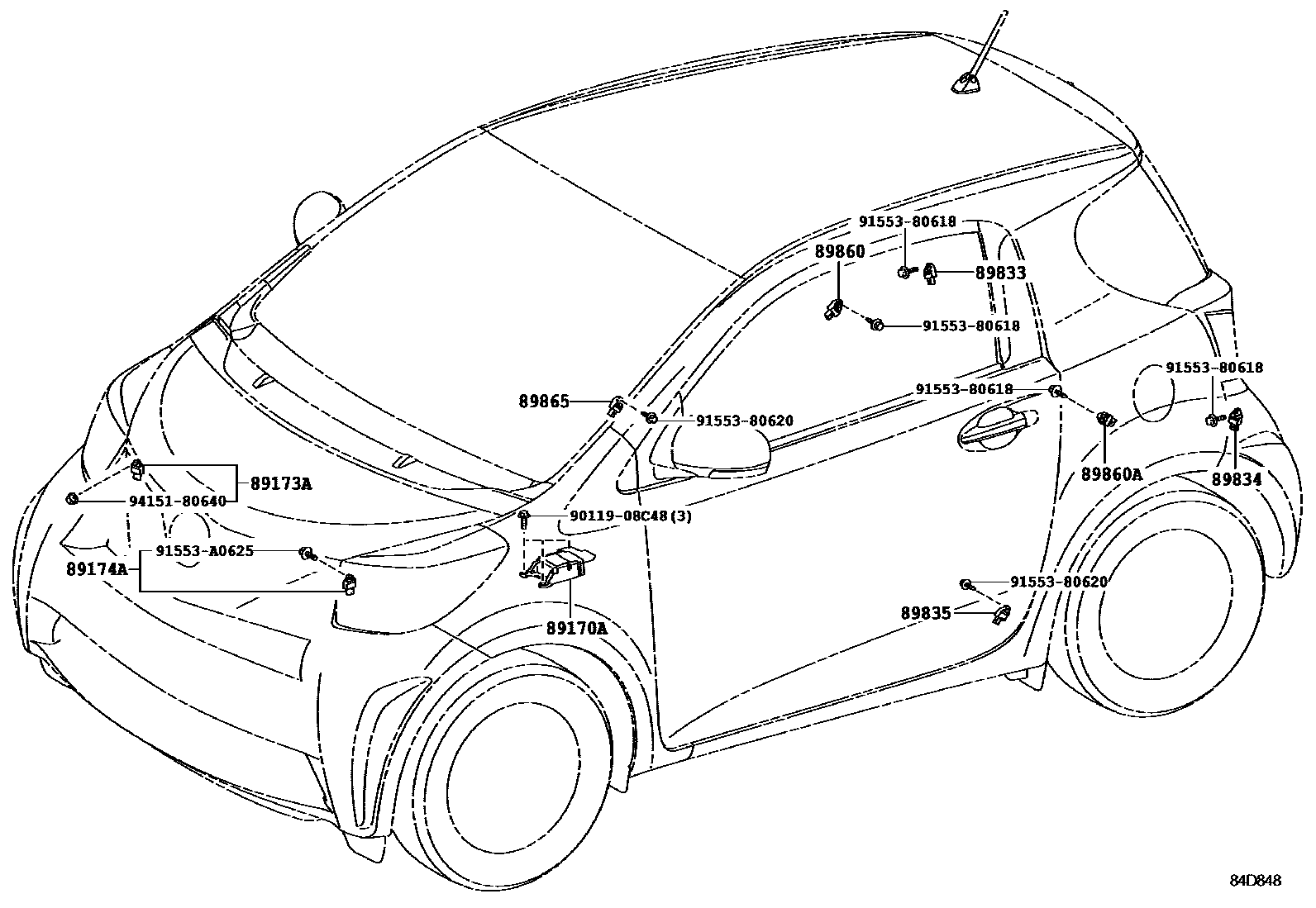

Toyota EQ EV — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
9011908C48
9155380618
9155380620
91553A0625
9415180640
14 parts on this diagram · 1 diagram in section
AIR BAG for Toyota EQ EV
This section contains 14 genuine Toyota parts for the AIR BAG system of the Toyota EQ EV. Key components include: COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH, SENSOR, AIRBAG, REAR RH, SENSOR, AIRBAG, REAR LH.
